WP Series Reducer With Hollow Output Shaft For Direct Mounting WPEDO
Product Introduction
Unlike the two-stage design of WPEDO, WPEO reducers typically focus on single-stage deceleration and emphasize hollow shaft output to meet the application requirements of space saving torque transmission. WPEDO offers a wider range of reduction ratios (e.g. up to 1/3600), while WPEO models focus more on compactness and are typically integrated into precision equipment such as servo drive systems. In addition, WPEDO devices perform well in high torque application scenarios with excellent load-bearing capacity, while WPEO models focus more on lightweight structures and are suitable for industries such as packaging or textiles. Both use characteristics such as cast iron casing and bronze worm gear, but WPEDO's dual stage structure can provide greater torque multiplication for heavy industry applications.
|
Product Name: |
WPEDO Gearbox |
Ratio: |
200,300,400,500,600,800,900 |
|
Model No. |
40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

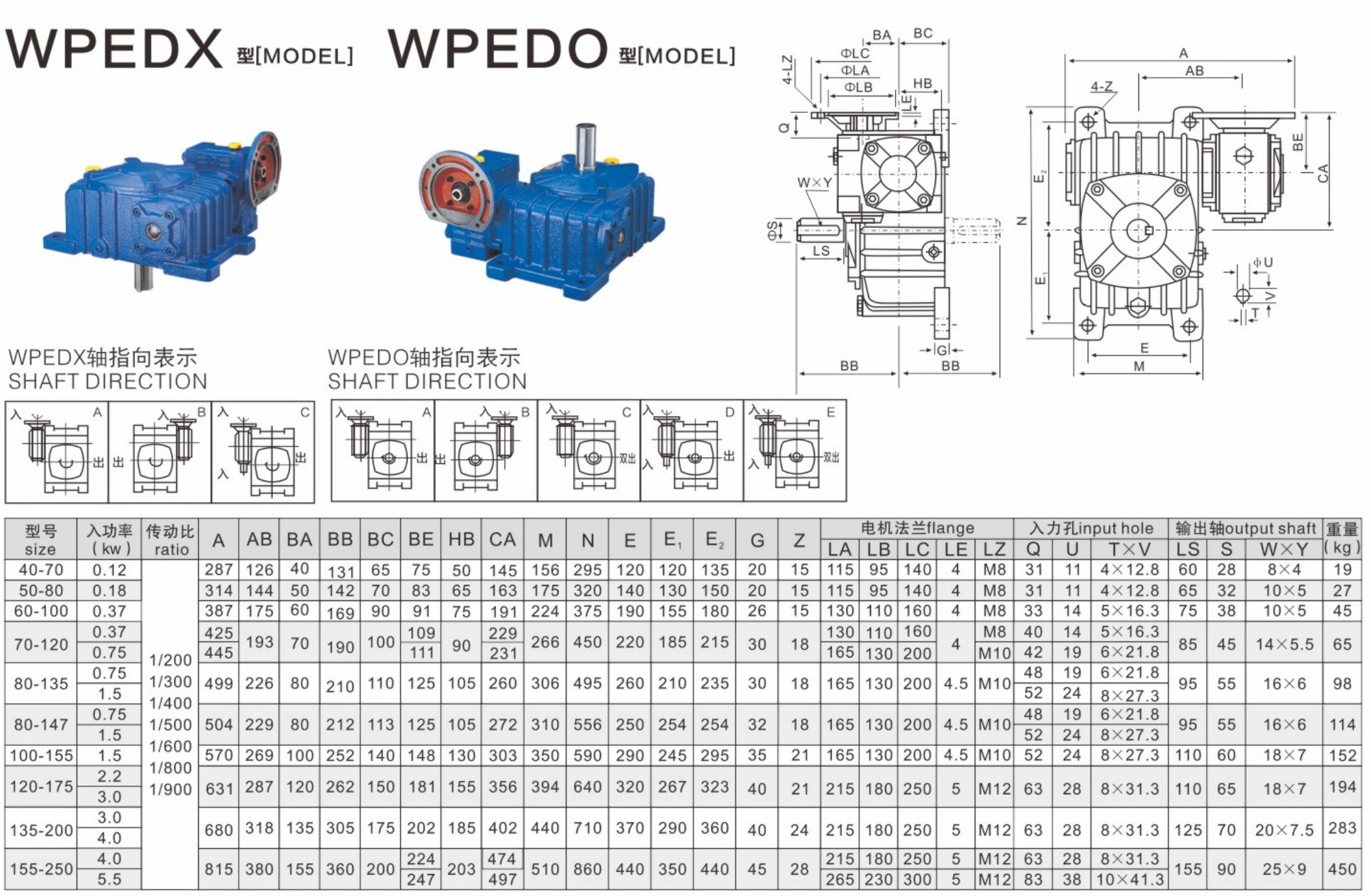

Product Details
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
