Speed Reducer Type Worm Gear Transmission WPEDKS

Short Description:

Jiahuang WPEDKS reducer is a sturdy and durable cast iron worm gear reducer in the WP series, designed for vertical installation with the output end facing upwards. It adopts a solid output shaft structure and provides multiple single-stage reduction ratios, including 1:10, 1:20, 1:30, 1:40, 1:50, and 1:60, suitable for center distances (models) from 50 # to 175 #. Adopting 45 # high-quality steel worm gear, heat-treated to improve durability, and equipped with wear-resistant tin bronze worm gear, it has excellent load-bearing capacity. This reducer is suitable for various industrial applications such as plastics, metallurgy, beverages, mining, lifting and transportation, and chemical construction machinery.

Input power: 0.12~33.2kW
Size: 40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250
Ratio: 200,300,400,500,600,800,900
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

The main difference between Jiahuang WPEDKS and WPEKS reducers lies in their specific model names and potential structural configurations in the WP series. Both belong to the WP cast iron worm gear reducer series and share common core features, such as the use of 45 # steel worm gear and tin bronze worm gear. However, the "D" in WPEDKS typically represents a specific variant, sometimes indicating a "dual" output shaft structure or other design differences compared to WPEKS.

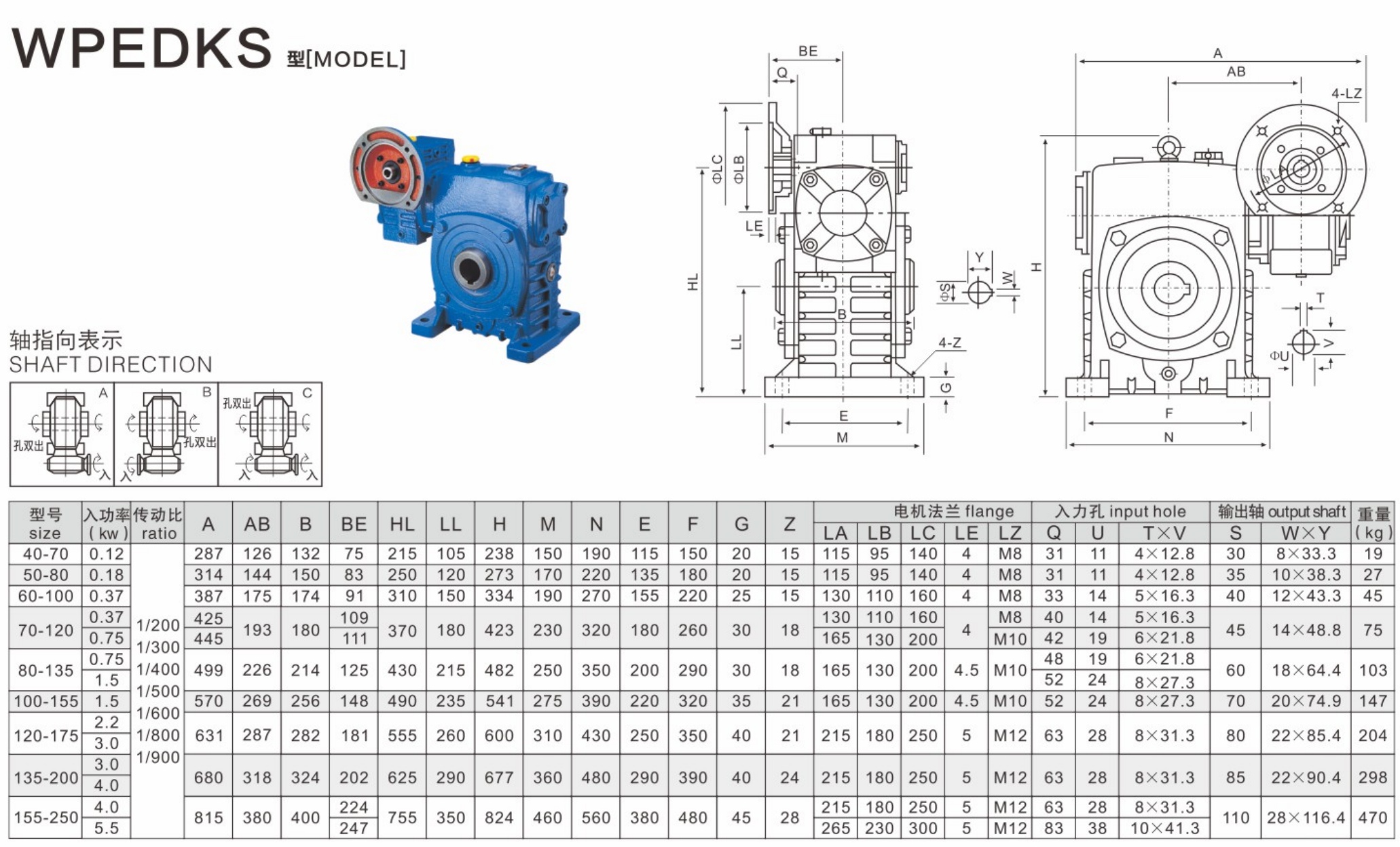

Product Name:	WPEDKS Gearbox	Ratio:	200,300,400,500,600,800,900
Model No.	40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
