Worm Gearbox High Torque Transmission For Conveyor Packaging Machine WPS
Product Introduction
The core difference between it and WPA lies in the relative position of the input axis and output axis: WPA's input axis is located below the output axis, while WPS is the opposite, with the input axis located above the output axis, making it very suitable for vertical device configurations because this configuration tends to input from above.
In terms of configuration, WPS mainly adopts a design of single input shaft+single output shaft, and provides dual input shaft and dual output shaft options to meet complex power transmission requirements. In addition, WPS also has strong compatibility, supporting connection with motors through couplings, pulleys, sprockets, or other transmission components, seamlessly adapting to applications such as metallurgy, plastics, and lifting equipment.
|
Product Name: |
WPS Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

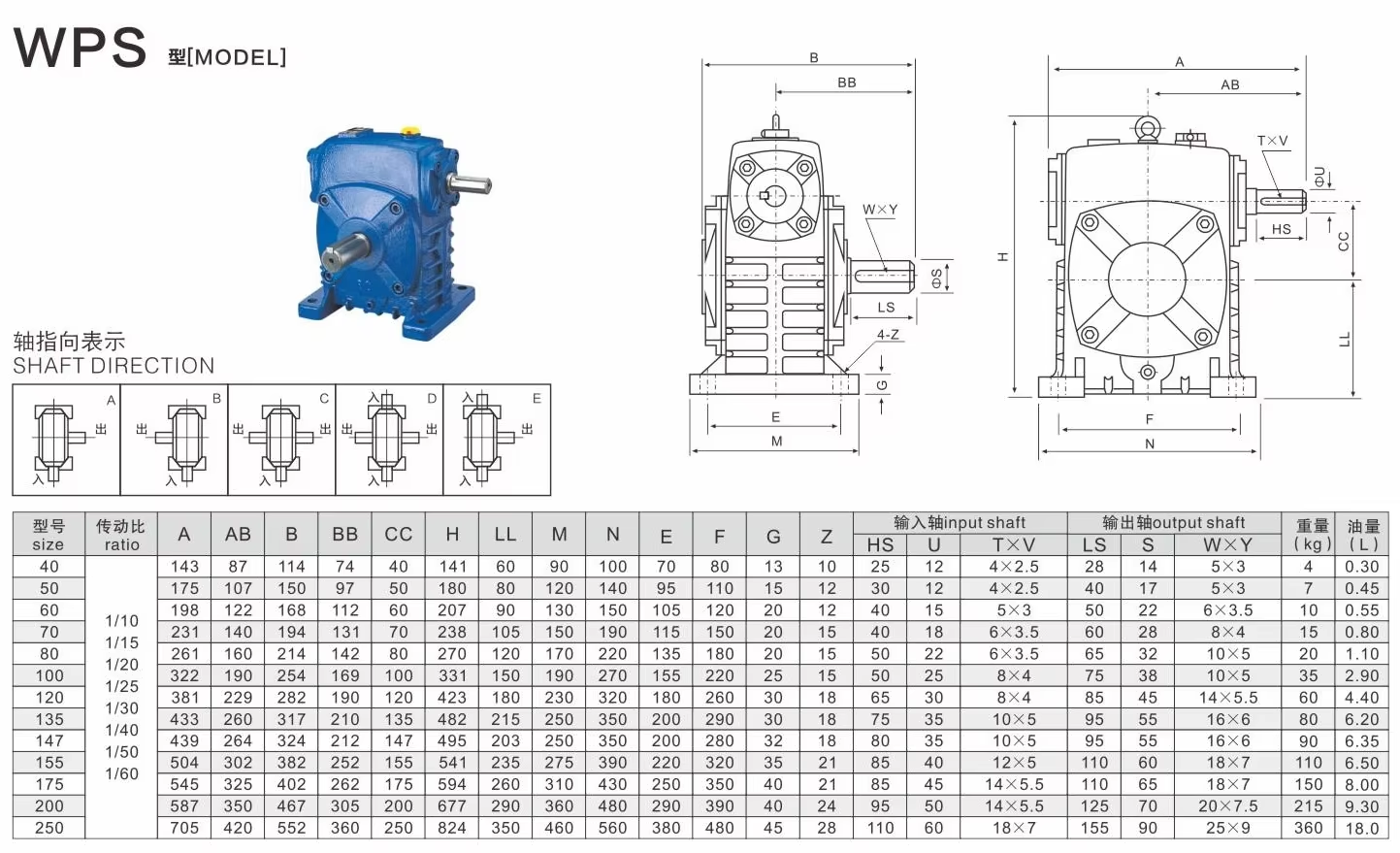

Product Details

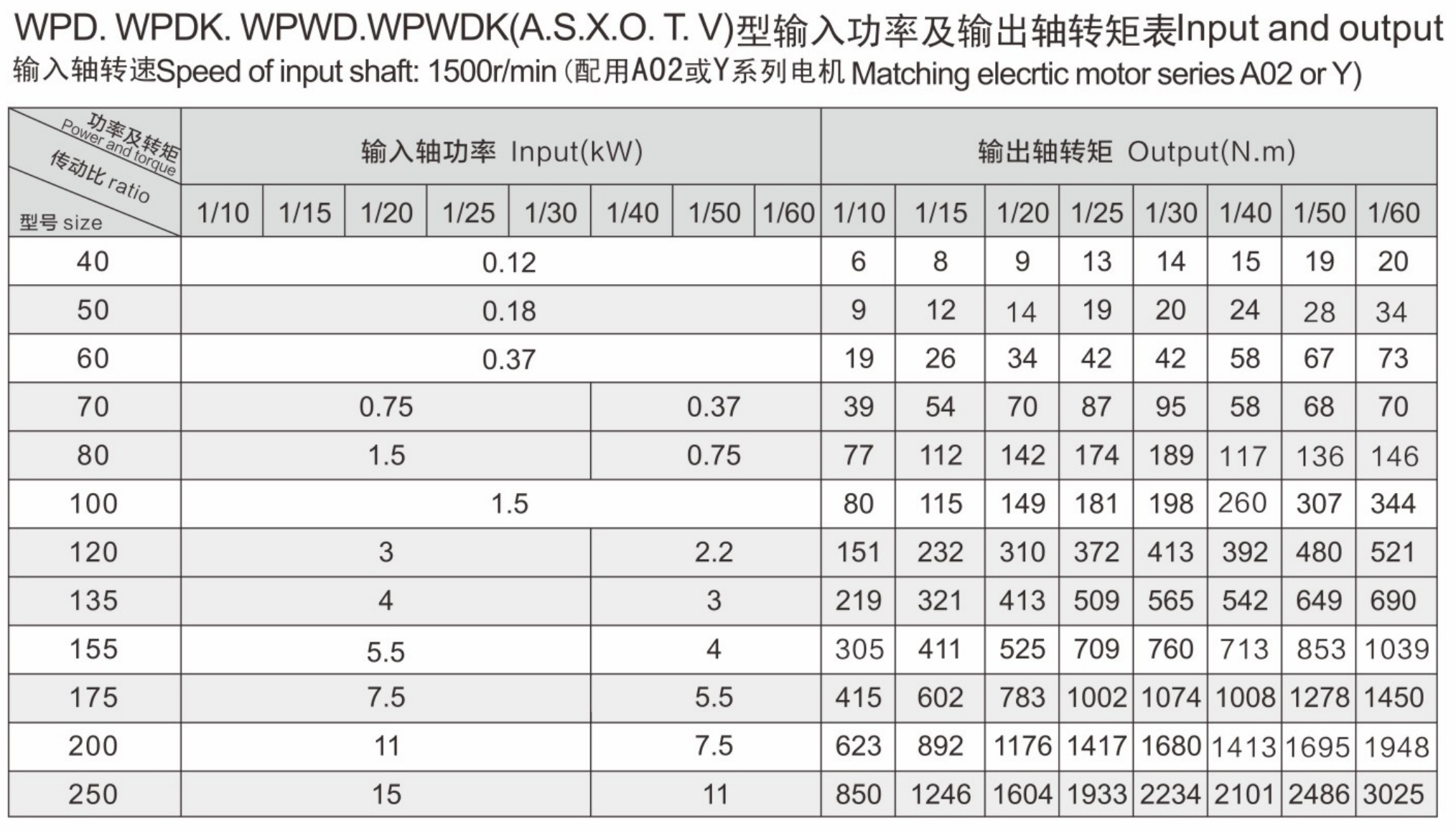

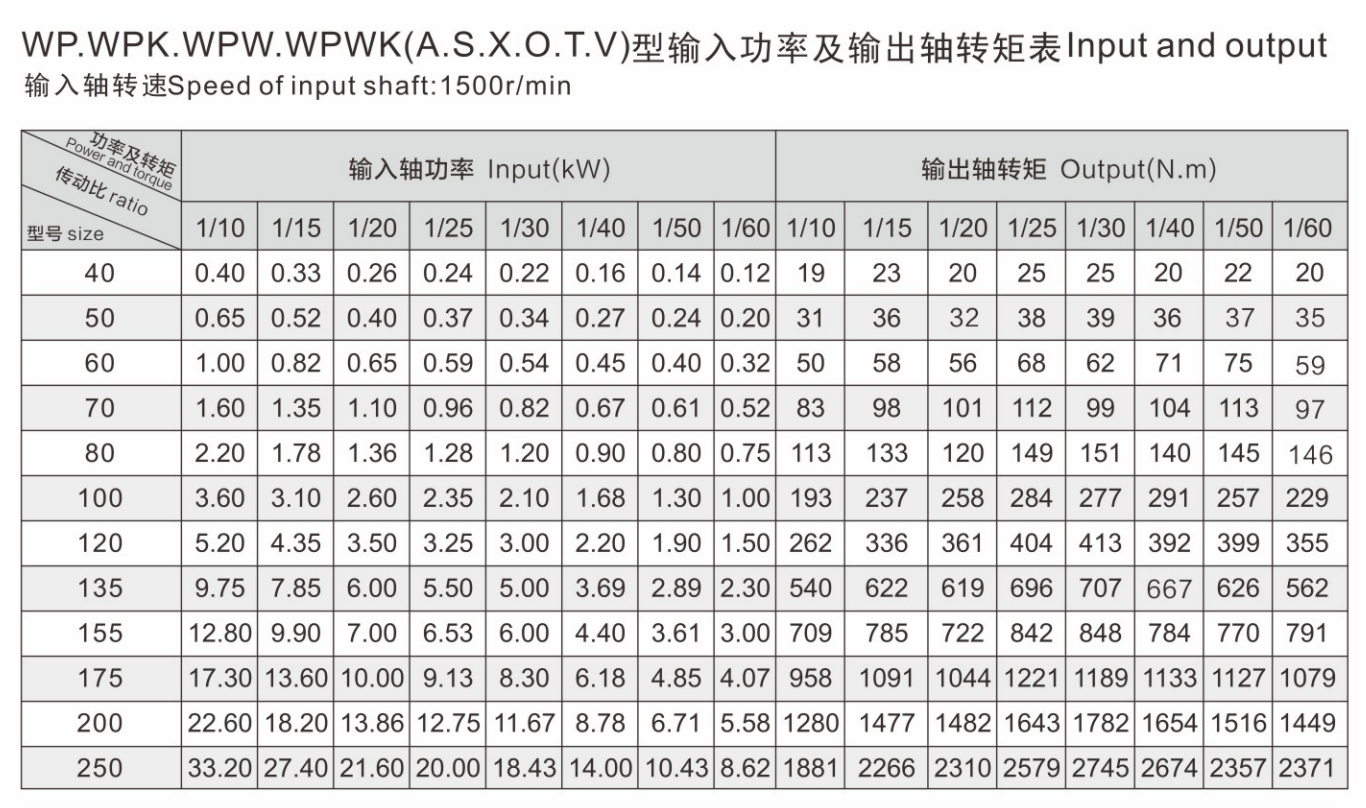

Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
