Speed Reducer Gear Compact Size Low Noise Operation WPKA Small Precision Reducer
Product Introduction
It inherits the practical vertical installation layout of WPA (input shaft down, output shaft up) and thickened cast iron housing, ensuring strong impact resistance, excellent sealing (preventing oil leakage and dust intrusion), and can adapt to harsh industrial environments. The hollow output shaft is one of its highlights: it can easily pass through long shaft or through shaft transmission components, without the need for additional couplings when connecting multiple devices, simplifying layout and reducing assembly complexity.
Internally, it retains the high-performance configuration of the WP series - tin bronze worm gear paired with heat-treated 45 # steel worm gear, which has reliable wear resistance and strong load-bearing capacity. Widely used in packaging machinery (conveyor rollers), metallurgy (roller conveyors), lifting equipment, etc., providing customized transmission solutions for devices that require shaft compatibility.
|
Product Name: |
WPKA Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

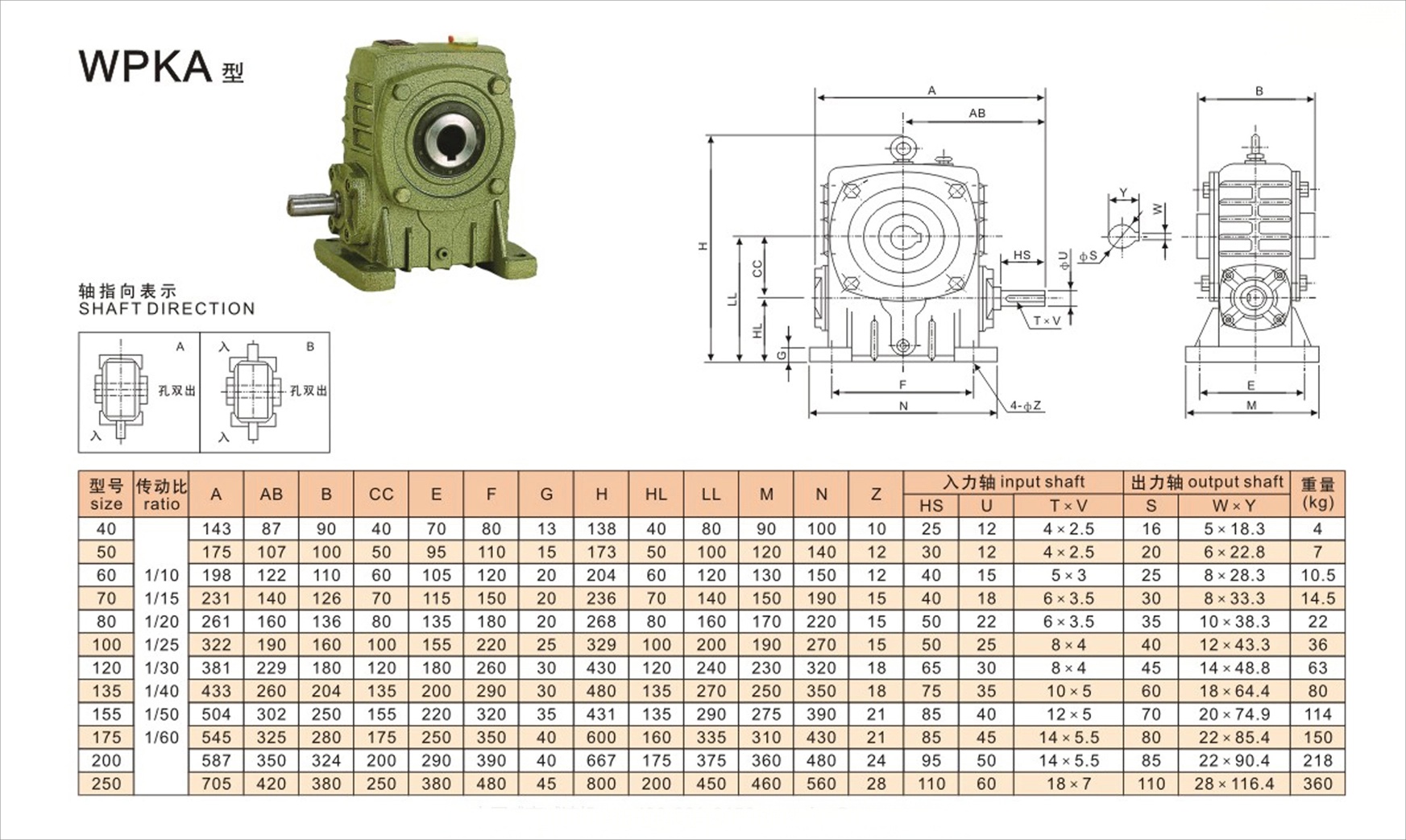

Product Details

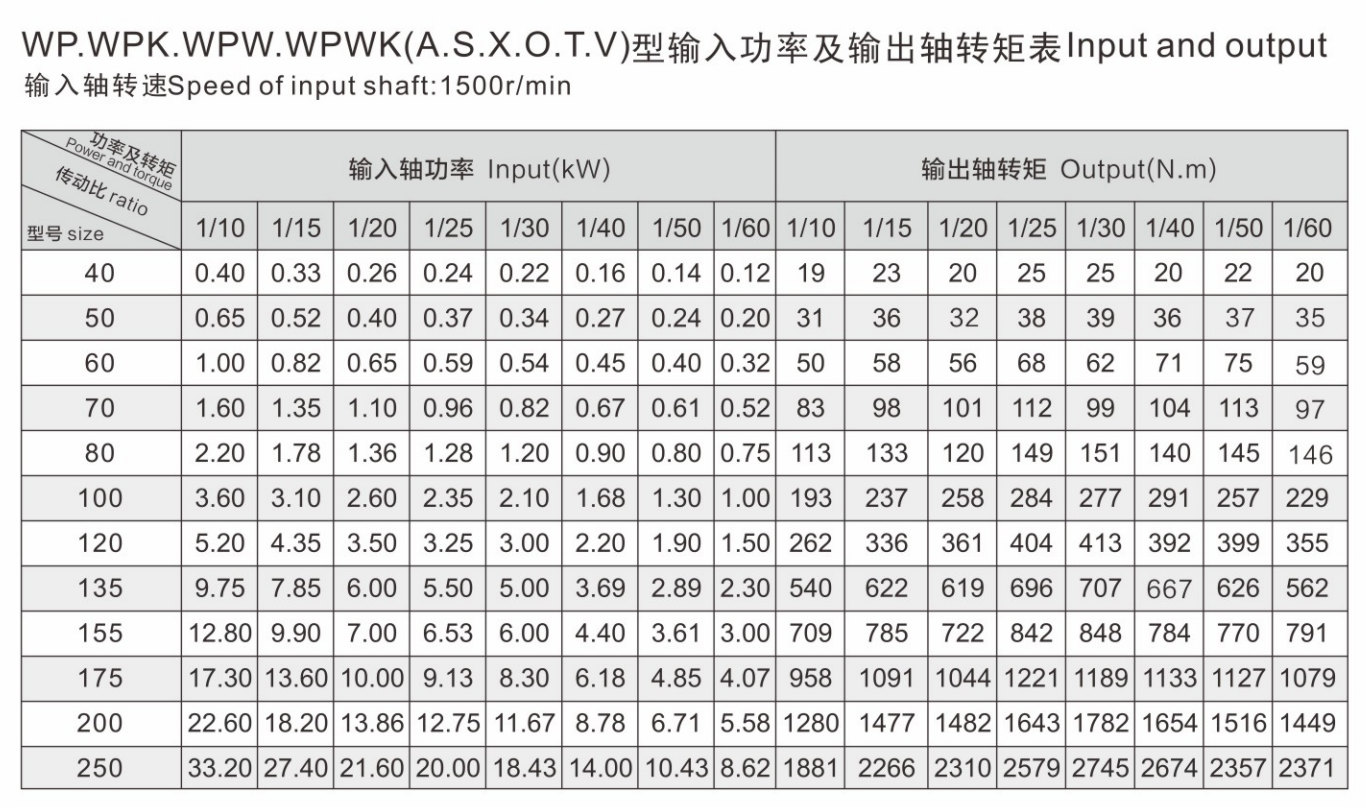

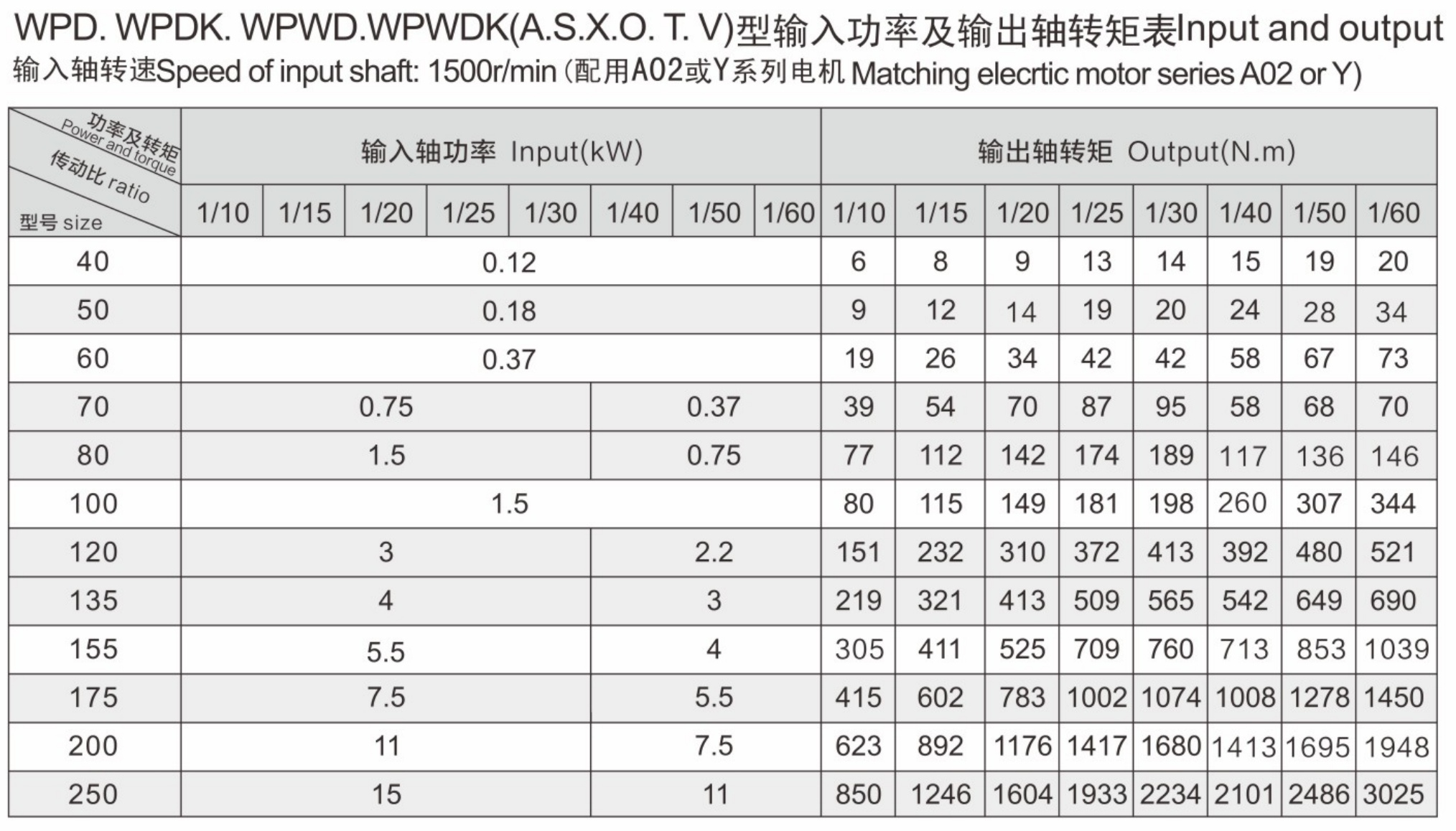

Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
