Speed Reducer Gearbox For Harsh Environment Application NMRV...F NMRV Worm Drive Gearbox Double Sealed

Product Name:

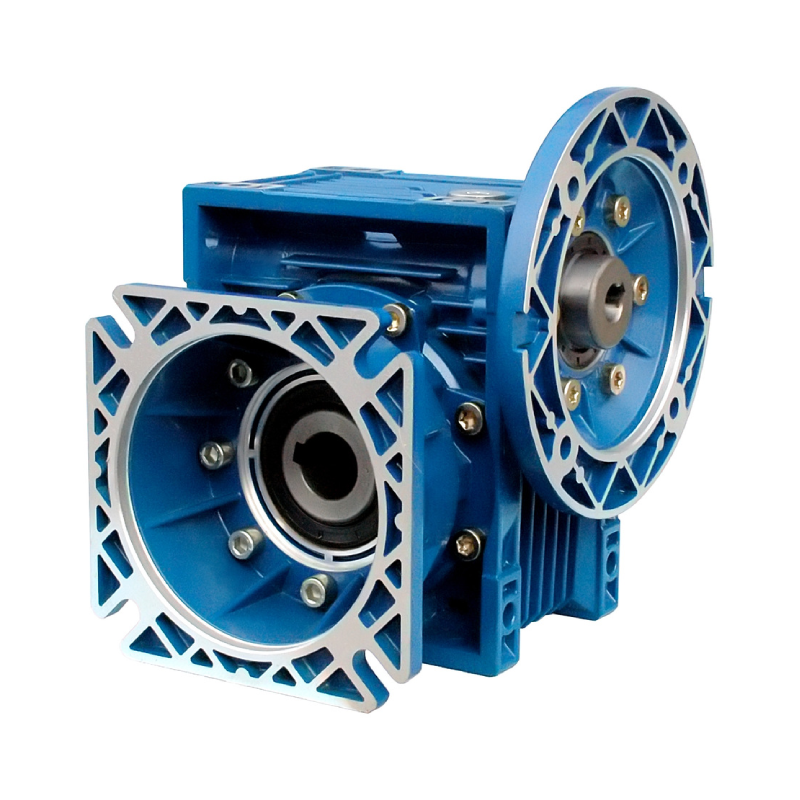

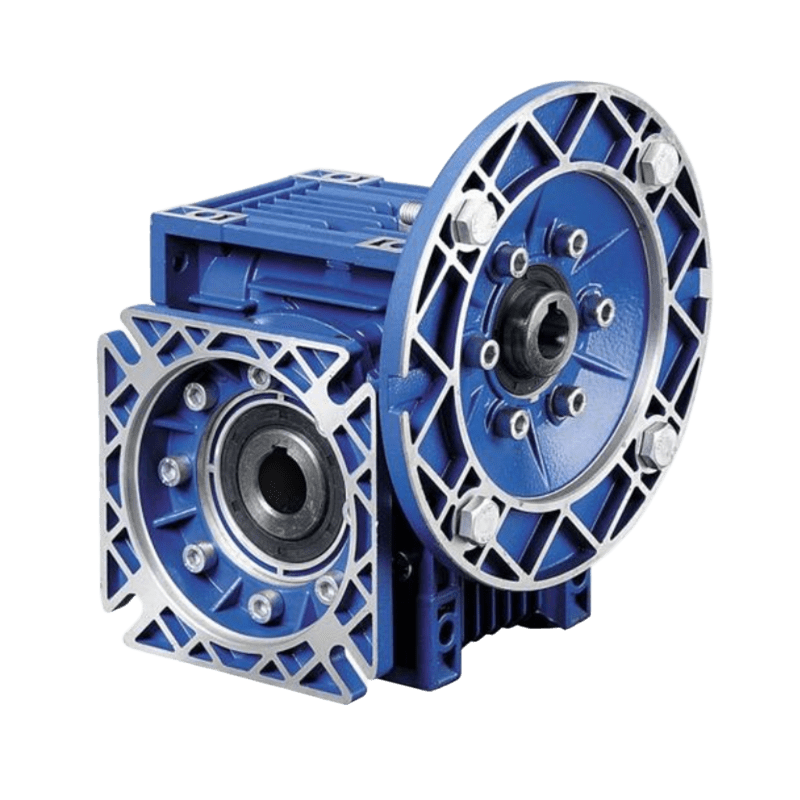

NRV...VS Gearbox

Ratio:

5,7.5,10,15,20,25,30,40,50,60,70,80,100

Model No.

RV30 RV40 RV50 RV63 RV75 RV90 RV110 RV130 RV150

Color:

Customized

In Power:

0.09-11kw

Output Torque:

<1050nm

Shell Material:

Die-Cast Aluminum Alloy for RV25-RV90, die-cast cast iron for RV110 to RV150

Worm Wheel:

9-4,12-2

Bearing:

WWI, C&U

Oil Seal:

KSK, SKF

Lubricant:

Mineral Oil, Synthetic Oil

Packing:

Carton and Wooden Case

Warranty:

1 Year

Origin:

Hangzhou Zhejiang

It retains the adaptive input design of standard NMRV (compatible with servo or stepper motors) and adds dedicated output flanges to ensure precise and safe alignment with driving equipment such as conveyors and mixers. This upgrade has shortened assembly time, reduced the risk of alignment errors, and thus improved operational reliability.

This reducer is made of high-quality aluminum alloy and has undergone anti-corrosion treatment, which can withstand harsh industrial conditions, has a long service life, and low maintenance costs. It is widely used in the fields of packaging, food processing, and light industry automation, and can provide customized and efficient transmission solutions.

Chemical engineering field

Agricultural machinery field
