Worm Speed Reducer Industrial Gearbox Double Sealed For Harsh Environment WPEKA

Short Description:

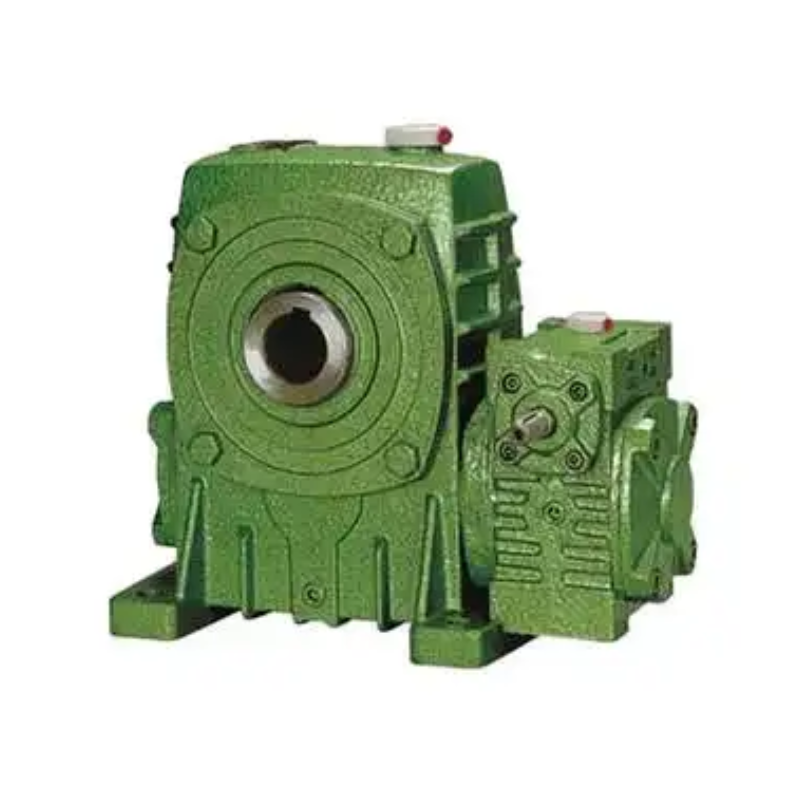

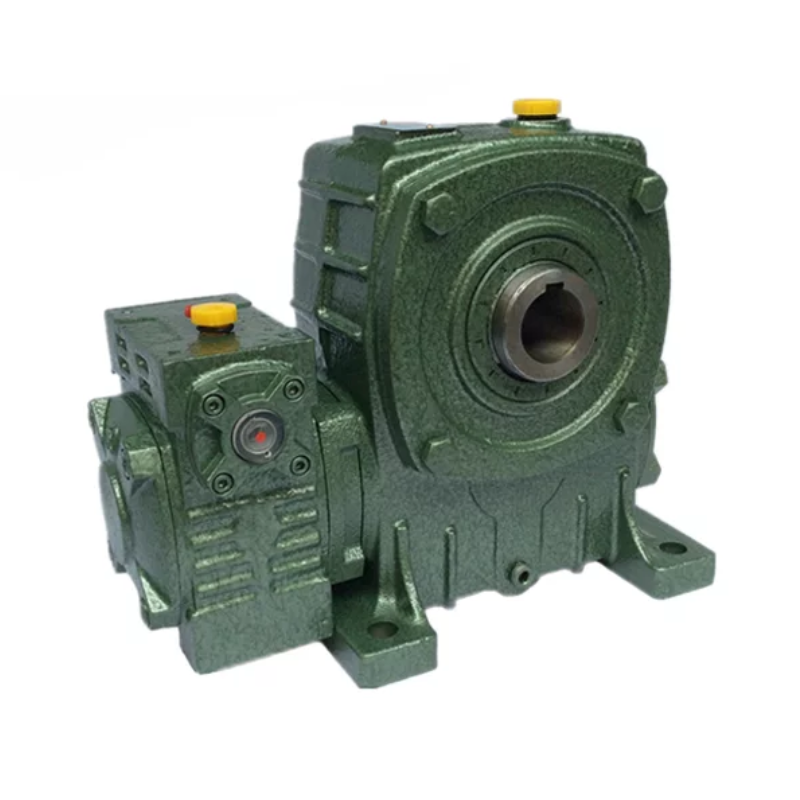

As a vertical-focused upgrade in JIAHUANG’s WP series, the WPEKA Worm Gearbox stands out with its hollow output shaft design—blending space efficiency and transmission flexibility for light-to-medium industrial needs. It retains the series’ thickened rigid cast iron housing, ensuring strong impact resistance and reliable sealing to prevent oil leakage and dust ingress, keeping stable operation in harsh environments like humid packaging workshops. The hollow output shaft is its key edge: it allows easy penetration of long shafts or multi-unit components, eliminating extra couplings and simplifying integration with overhead-driven equipment.

Input power: 0.12~33.2kW
Size: 40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250
Ratio: 200,300,400,500,600,800,900
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

Ideal for small lifting devices, textile rollers, and compact conveyor systems, the WPEKA balances JIAHUANG’s signature durability with tailored hollow-shaft convenience, offering a practical vertical transmission solution.

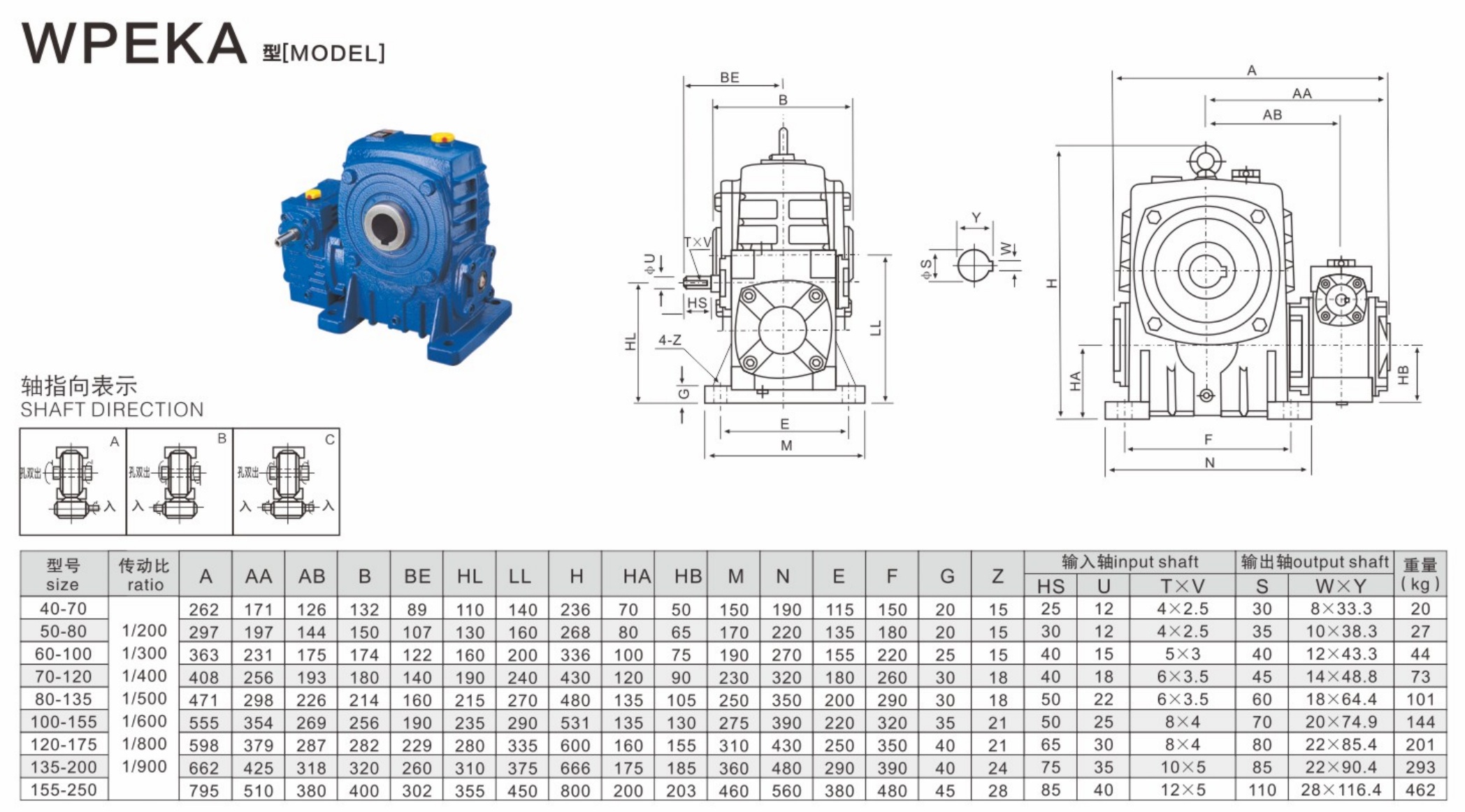

Product Name:	WPEKA Gearbox	Ratio:	200,300,400,500,600,800,900
Model No.	40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
