Gear Transmission Reducer Speed Reducer For Processing Industry WPEDA
Product Introduction
It retains the practical vertical layout of the WPEA series (input shaft at the bottom, output shaft at the top), and adopts a thickened rigid cast iron shell to ensure impact resistance and reliable sealing, preventing oil leakage and dust. The newly added input flange does not require additional components such as couplings, allowing for direct and secure motor installation, simplifying assembly and saving space.
WPEDA is highly suitable for light industrial equipment, small conveyors, and packaging machines. It combines the durability of WPEA with simpler motor integration to provide a reliable transmission solution.
|
Product Name: |
WPEDA Gearbox |
Ratio: |
200,300,400,500,600,800,900 |
|
Model No. |
40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

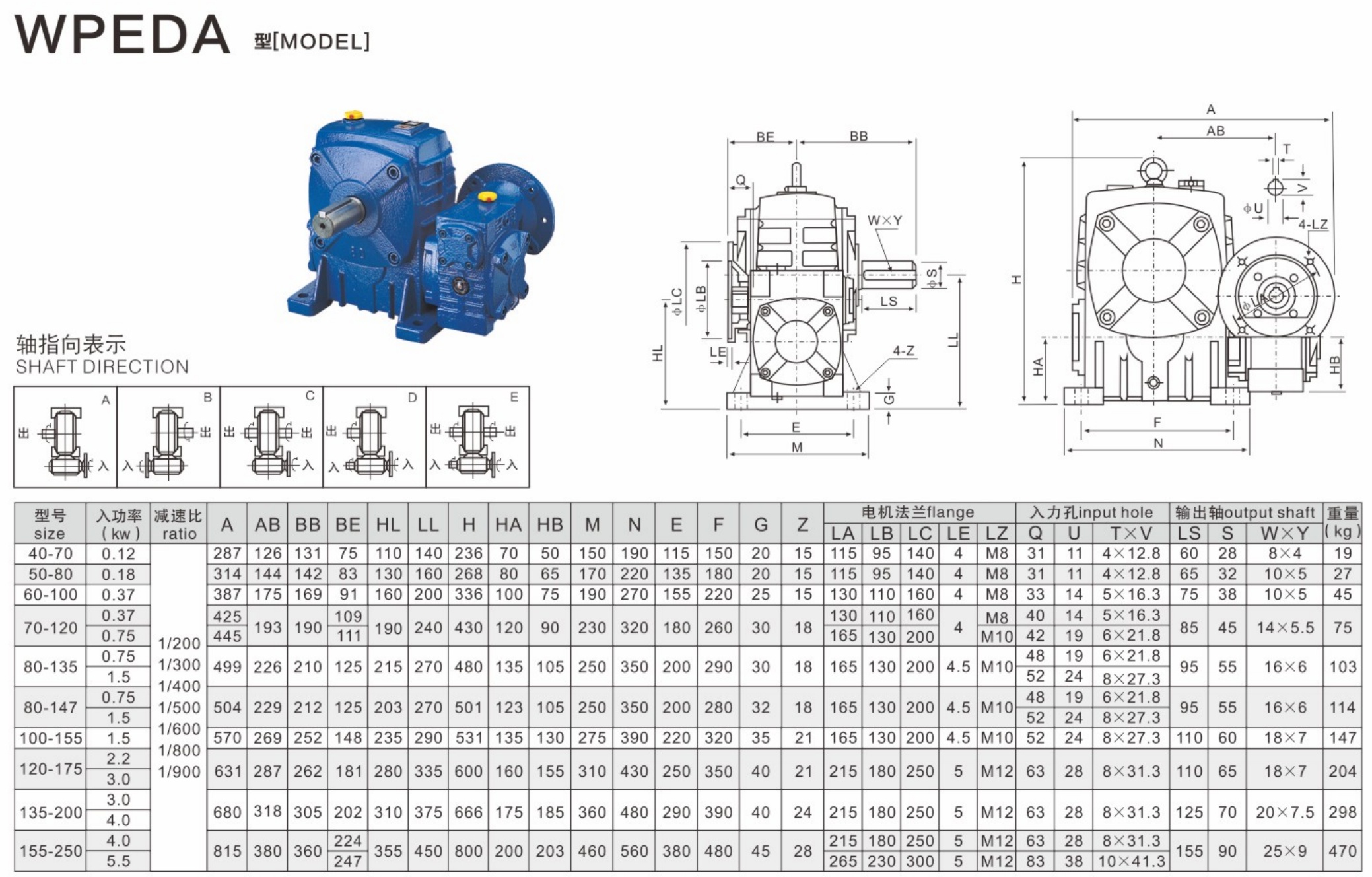

Product Details
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
