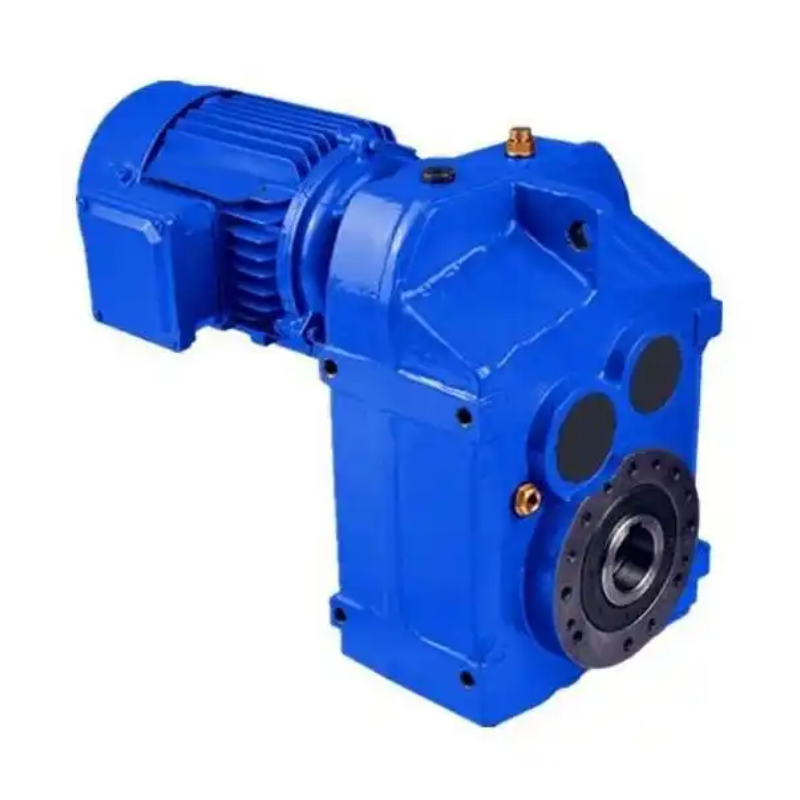

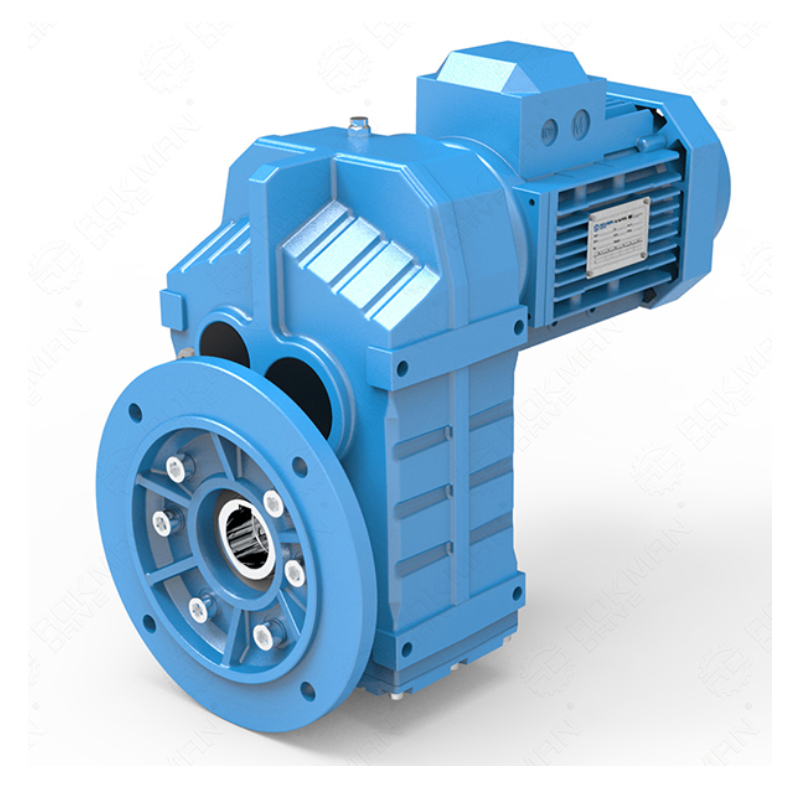

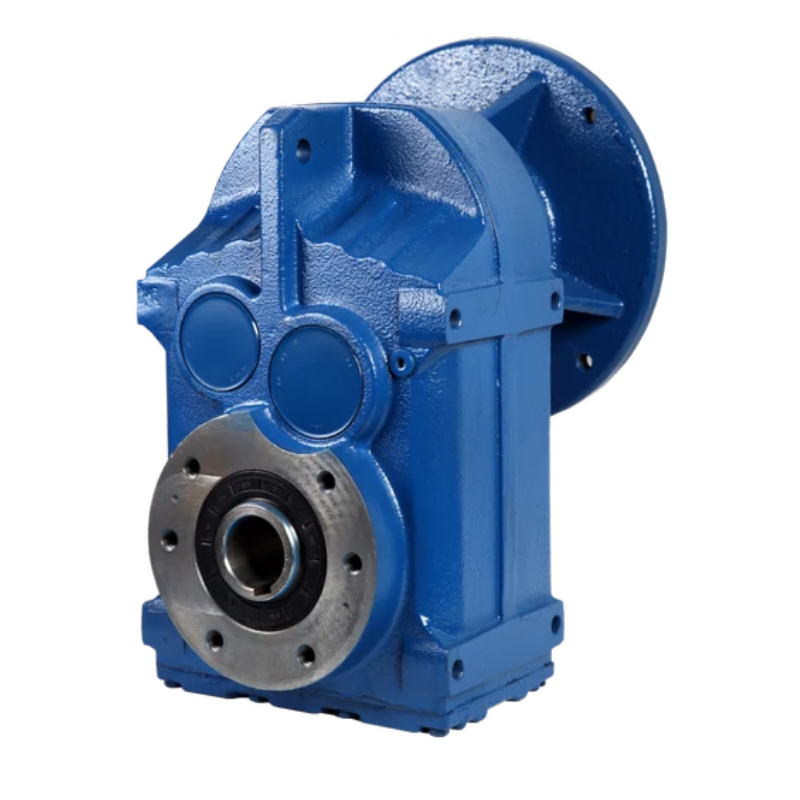

Helical Gearbox Foot F Series Mounted Hollow Shaft Output Torque Arm For Food Machinery Printing Packaging

Product Introduction

The gears are made of high-quality alloy steel (such as 20CrMnTi) and undergo carburizing quenching and precision grinding processes. The tooth surface hardness is high (up to 58-62HRC), and the wear resistance is strong, ensuring long service life and high reliability.

This series of reducers has high transmission efficiency (secondary transmission efficiency can reach 96%, tertiary transmission efficiency can reach 94%), low energy consumption, and excellent overload bearing capacity. The power range covers 0.12KW to 200KW, with a maximum output torque of 22500 N · m. The transmission ratio is finely graded, ranging from 3.77 to 31434, and can meet various low-speed transmission needs. Supports multiple installation methods (including foot installation, flange installation, hollow shaft installation, torsion arm installation, etc.), provides solid or hollow shaft output, flexible installation position, and adapts to different mechanical layout requirements.

The F series reducers are widely used in various industrial fields such as food and beverage, chemical, textile, pharmaceutical, environmental protection, logistics and transportation, automated warehousing, metallurgy and mining, building materials, printing and packaging, and automated production lines. Its high performance and reliability make it an ideal choice to replace cycloidal pinwheel reducers, meeting the stringent requirements of modern industry for efficient, energy-saving, stable, and durable power transmission systems. JIAHUANG MOTION is committed to providing customized power solutions for customers. Welcome to inquire for more product details and technical parameters.

Product Details

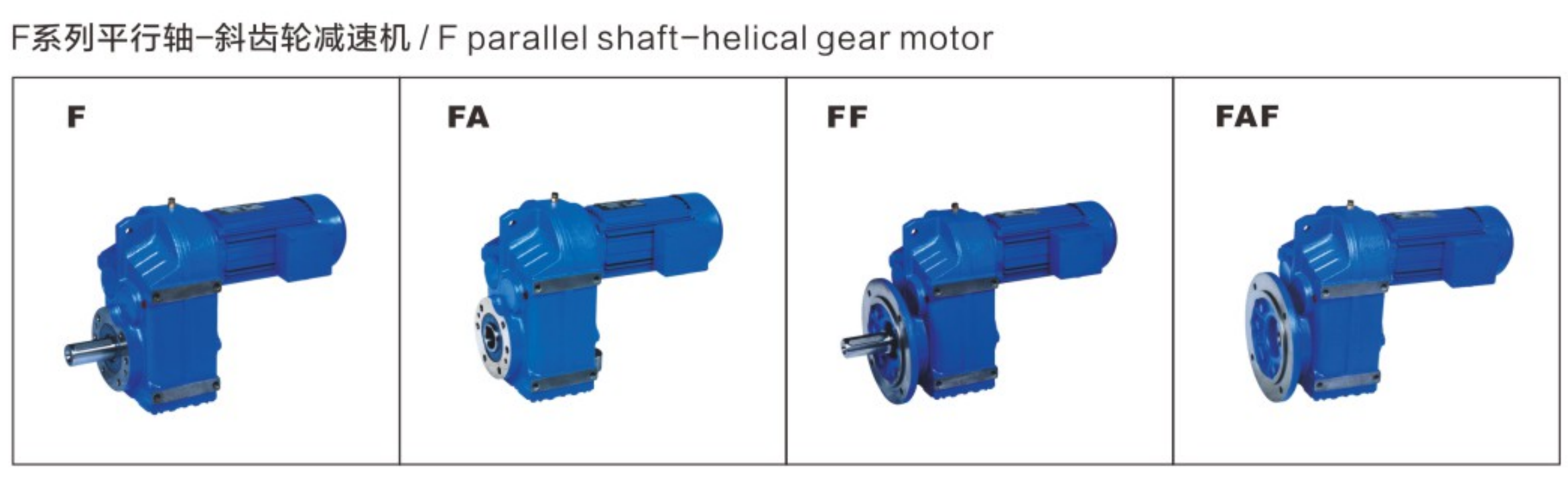

JIAHUANG TRANSMISSION F Series Parallel Shaft-Helical Gear Reducers - Core Features

1. Adopting modular combination design, it can flexibly adapt to various power inputs such as AC/brake motors, and easily achieve multi model combination connection.
2. Supports various forms such as foot installation, flange installation, and hollow shaft (including spline/locking plate) installation, adapting to different equipment layout requirements.
3. The gears are made of high-quality alloy steel, which has undergone carburizing quenching and precision grinding treatment, resulting in high transmission efficiency, wear resistance, and extended service life.
4. Strong load carrying capacity, suitable for power range of 0.18kW-200kW, meeting different working conditions from light industry to heavy industry.
5. The transmission ratio is finely graded (2.13-281.71), with a wide coverage range, and can accurately match the output speed requirements of the equipment.
6. The overall structure is compact and small in size, which can effectively save installation space on industrial sites and simplify production line layout.
7. Adapt to environmental temperatures of -40 ℃ -50 ℃ and altitudes within 1000 meters, and can operate stably in complex industrial environments such as high dust and humidity.
8. Widely used in various industries such as food processing, metallurgical transportation, logistics equipment, construction machinery, chemical mixing, etc.

Application

Industrial conveying field	Mining machinery field	Construction machinery field

Food processing field	Logistics and warehousing field	New energy sector

Metallurgical field	Chemical engineering field	Agricultural machinery field
