MD Variable Speed Gearbox Wide Ratio Range Industrial Mechanical Speed Electric Motor Variator Long Service Life

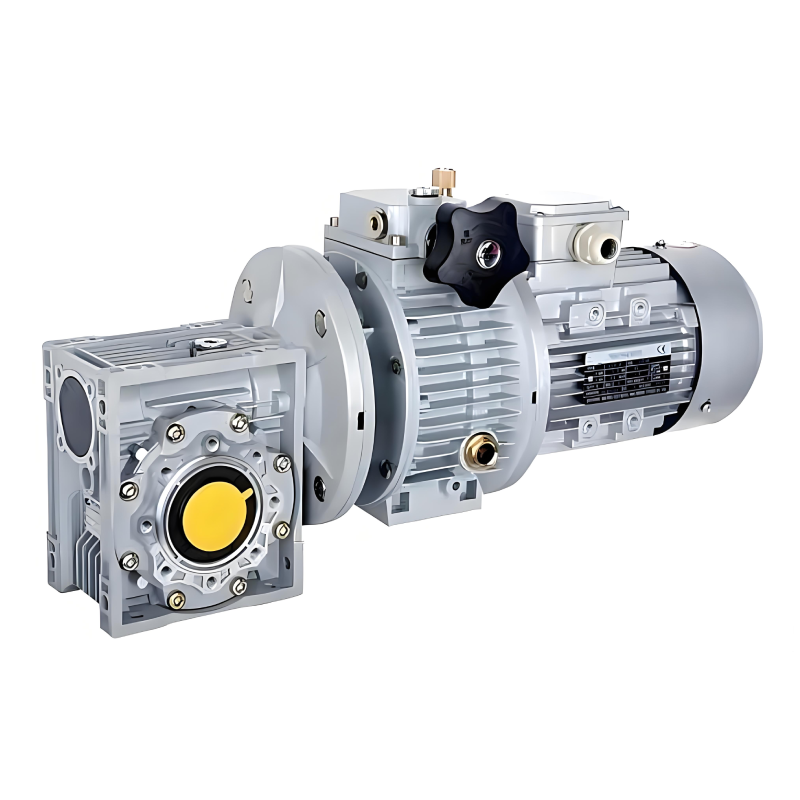

Product Introduction

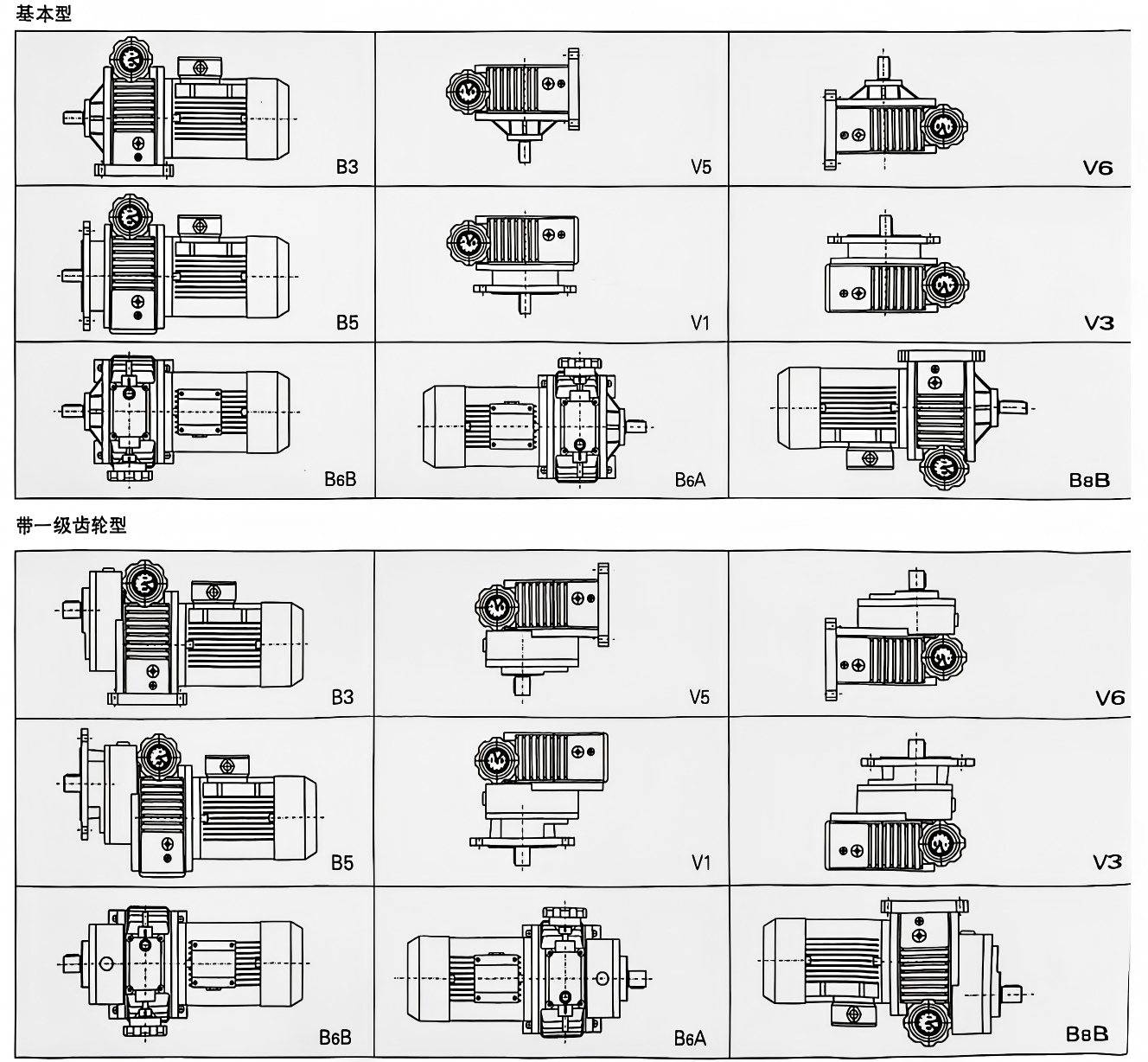

Rich motor combinations, installation forms, and structural schemes. The transmission ratio is finely graded and suitable for different working conditions, with excellent performance.
Reinforced high rigidity cast iron box body; High quality alloy steel quenched and finely ground gears. Smooth transmission, low noise, strong load-bearing capacity, low temperature rise, and long service life. Widely used in the metallurgical industry.
Features: Small output eccentricity, compact structure, saving box space. The overall cast box body (with good rigidity) enhances shaft strength and extends bearing life.
|
Product Name: |
MD Series Variable Speed Gearbox |
Type: |
Variator |
|
Rated Power: |
0.18-0.75kw |
Handwheel Position: |
Left /Right |
|
Input Speed: |
750-1800rpm |
Output Speed: |
1-950 Rpm |
|
Output Torque: |
up to 18000n. M |
Application: |
Lifting |
|
Motor Votaloge: |
220V/ 380V / 440V |
Motor Hz: |
50Hz /60Hz |
|
Material: |
Aluminum |
Packing: |
Wooden Box |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details
The MB type continuously variable transmission has uniform force distribution, high speed sensitivity, and durability. Compact structure and easy operation.
It has high structural strength, wide speed range, high operating accuracy, stable and reliable performance, and flexible combination.
Application Cases
 |
 |
 |
| Food processing |
Agricultural cultivation | Fitness equipment |
 |
 |
 |
| Small yacht propulsion system |
Woodworking sanding machine sanding belt | Commercial soybean milk grinder |
 |
 |
 |
| Freight electric tricycle | Vegetable greenhouse roller shutter machine | Adhesive label printing machine |
