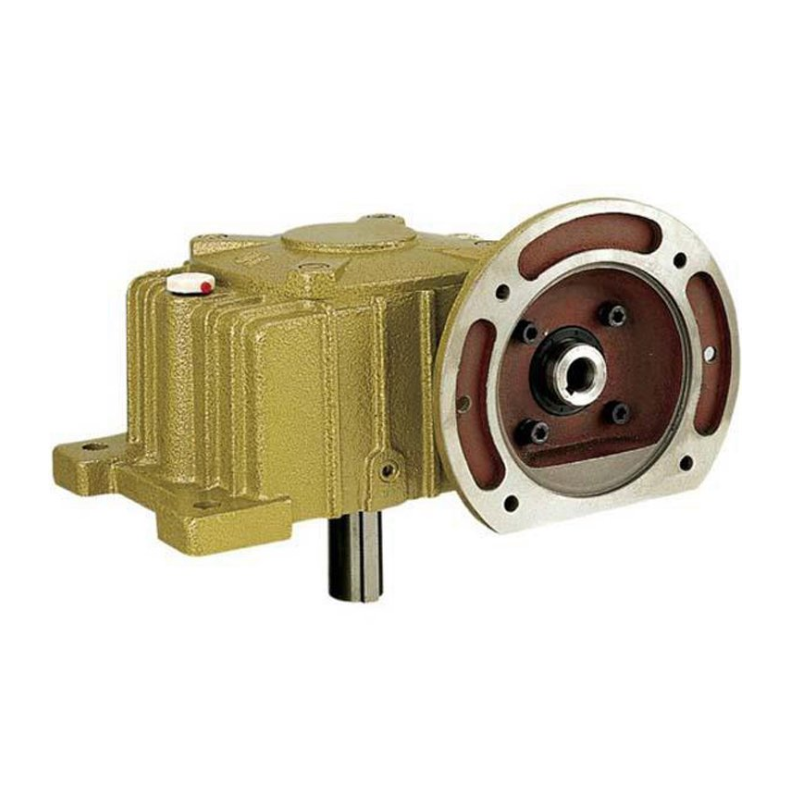

Worm Transmission Gearbox Heavy Duty Gearbox For Hoist Lift WPDX Small Transmission Pulley

Short Description:

As an optimized version of the Jiahuang WP series layout, the WPDX worm gear box has been improved on the basis of WPDO multi power compatibility. Its main difference is that the input shaft position has been adjusted, tailor-made for equipment with limited installation angles or specific motor installations.

Input power: 0.12~33.2kW
Size: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 250
Ratio: 10, 15, 20, 25, 30, 40, 50, 60
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

It retains the robustness of the WP series: the thickened rigid cast iron shell ensures strong impact resistance, while the enhanced sealing prevents oil leakage and dust from entering, ensuring long-term reliable operation. Unlike the standard input shaft position of WPDO, WPDX relocates the input shaft (e.g. tilt/offset), so there is no need for additional adapters when paired with non-traditional installed motors.

It still retains WPDO's multi power support (for main/backup motors), horizontal layout for linear transmission, and solid/hollow output shaft options. Internally, tin bronze worm gears and heat-treated 45 # steel worm gears are used to ensure smooth operation and wear resistance. WPDX is an ideal choice for compact automated production lines and side mounted motor equipment. It perfectly integrates the reliability of WPDO with better layout flexibility, creating a reliable transmission solution for Jiahuang.

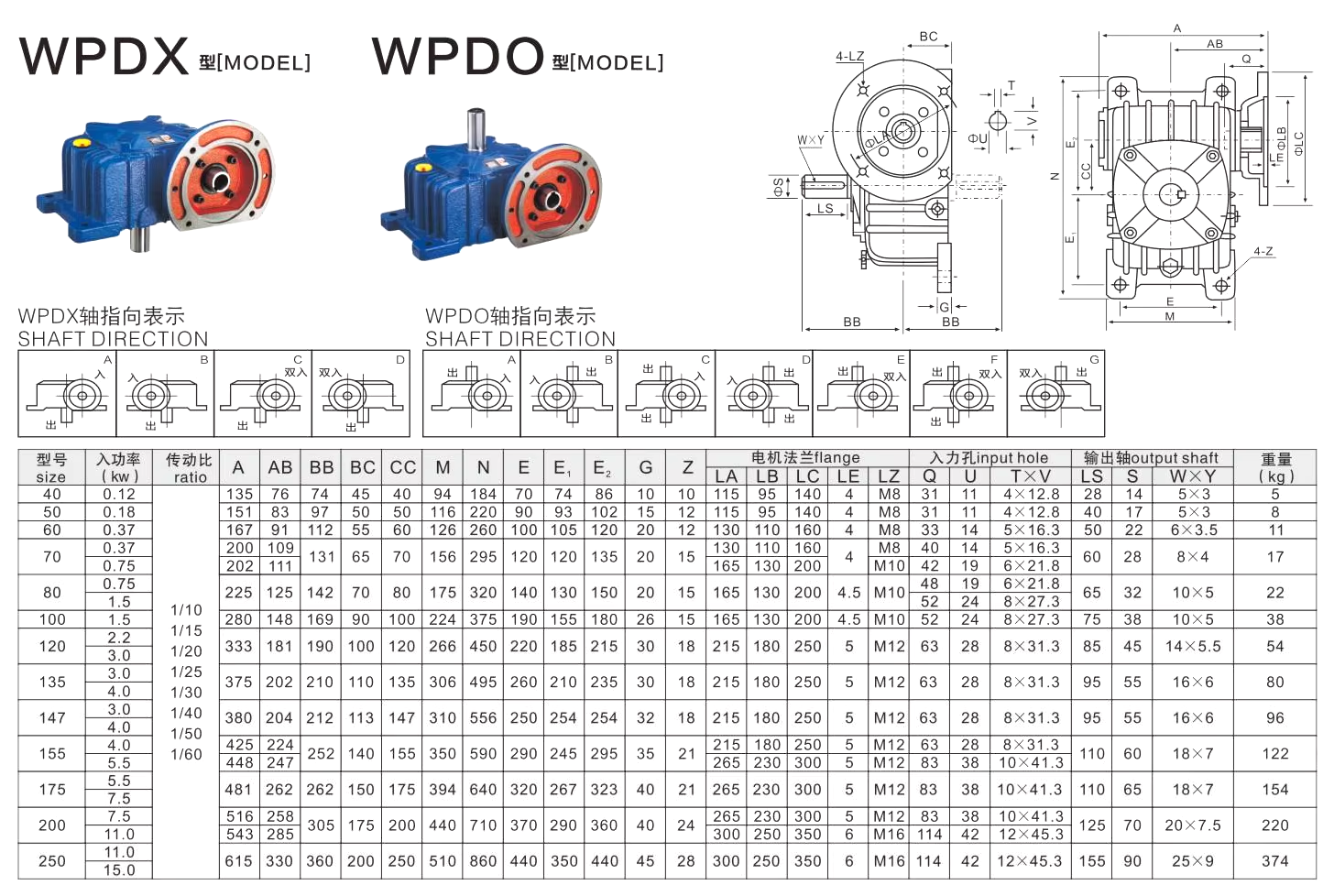

Product Name:	WPDX Gearbox	Ratio:	10,15,20,25,30,40,50,60
Model No.	40,50,60,70,80,100,120,135,155,175,200,250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
