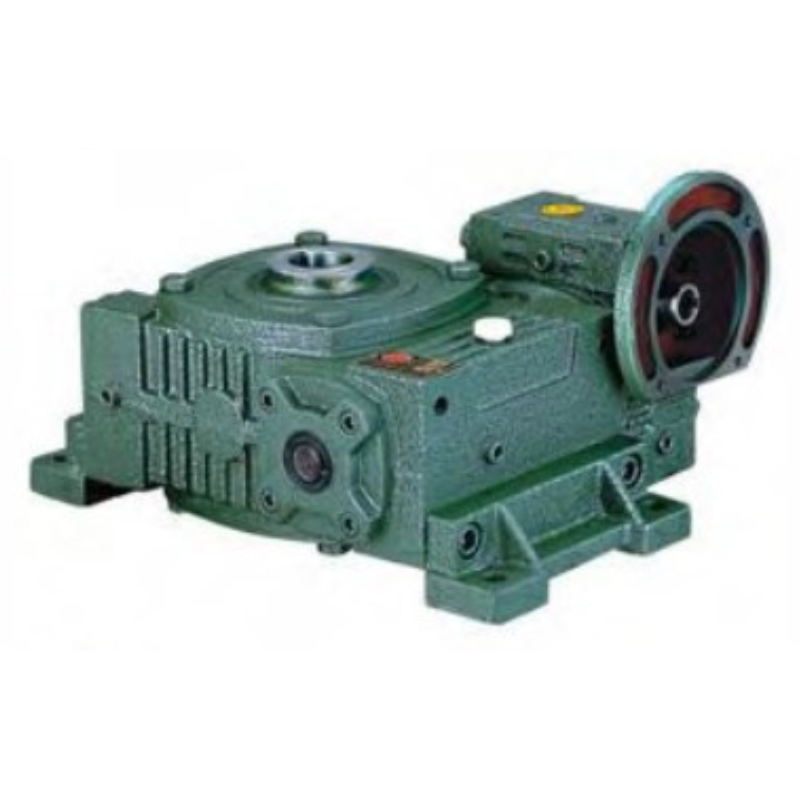

Speed Reducer Speed Worm Transmission Universal Mounting WPWEDKO

Short Description:

Jiahuang WPWEDKO reducer is a two-stage universal worm gear reducer designed specifically for heavy-duty industrial applications. It aims to provide high torque output, with a maximum torque of 6050 N • m.

Input power: 0.12~33.2kW
Size: 40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250
Ratio: 200,300,400,500,600,800,900
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

The main difference between WPWEDKO and WPWEKO reducers lies in their unique design configuration and installation flexibility. The characteristic of WPWEDKO is a two-stage universal reducer, which means its installation configuration is more flexible, with multiple fixed surfaces, usually without a base plate or with a connectable base plate, thus having stronger adaptability in various mechanical layouts. In contrast, the WPWEKO series is also a two-stage reducer, but its feature is a hollow output shaft design. This key feature of WPWEKO allows for through shaft installation, which simplifies assembly in applications where the output shaft is directly connected to another shaft without the need for additional couplings. The two types have similar core components and performance characteristics, such as using hardened worm gears and bronze worm gears, but their structural design and output shaft options can meet different installation and space limitations.

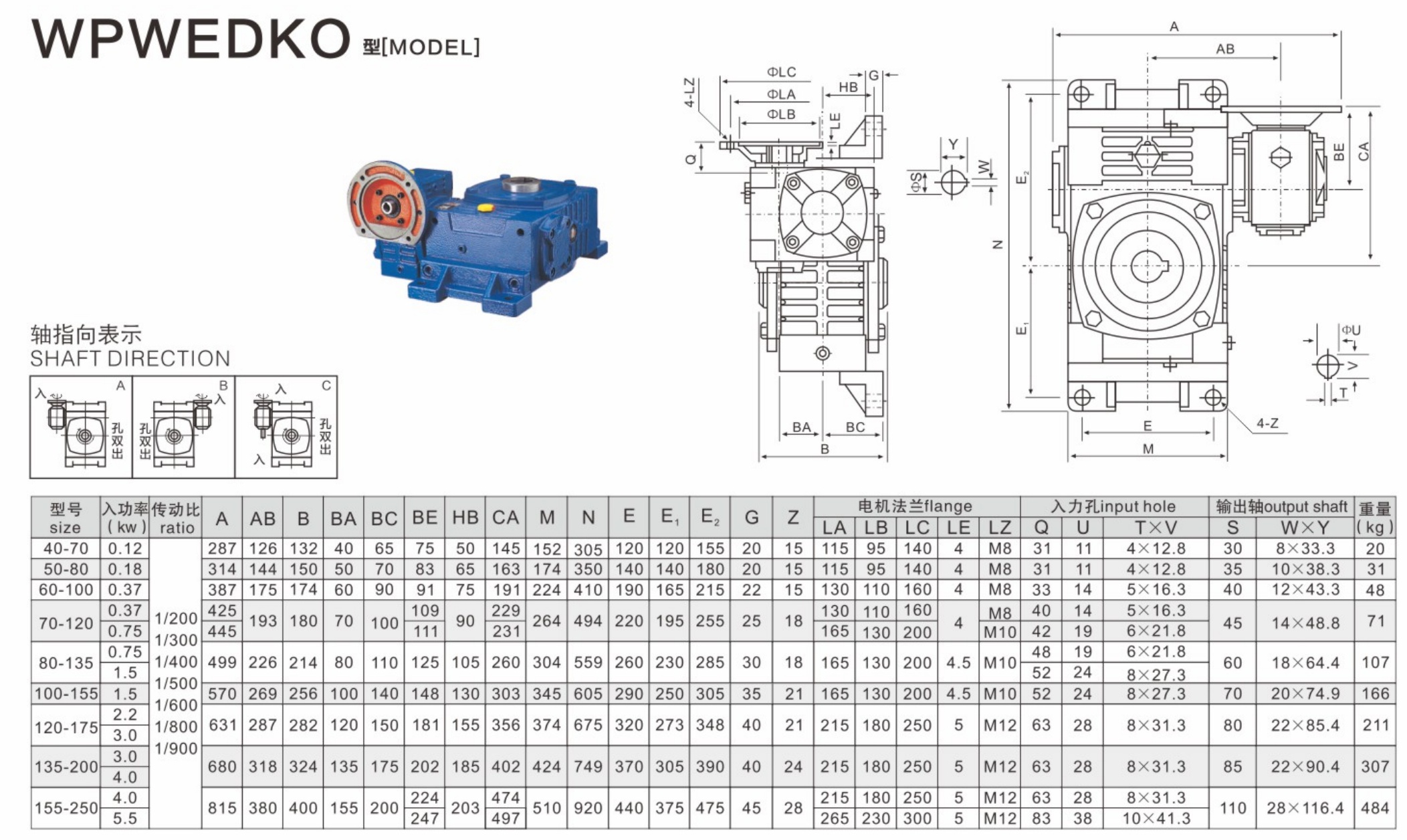

Product Name:	WPWEDKO Gearbox	Ratio:	200,300,400,500,600,800,900
Model No.	40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
