Worm Reduction Gearbox Wp Type Worm Gear For Construction Machinery WPO

Product Introduction

It inherits the sturdy foundation of the WP series: the box is made of thickened rigid cast iron, which has excellent impact resistance and structural stability, and can withstand harsh industrial environments from dusty mining sites to humid food processing workshops; Meanwhile, its enhanced sealing design can prevent oil leakage and dust intrusion, ensuring long-term reliable operation.

One of the highlights of WPO is its optimized axis layout. Unlike some vertical WP models, it adopts a practical horizontal configuration, simplifying the integration with equipment that requires linear power transmission. It offers flexible input/output options (solid shaft or hollow hole) to match different motors and mechanical connections without the need for complex adapters. It retains the high-quality component combination of the series internally: tin bronze worm gear (excellent wear resistance) and heat-treated 45 # steel worm gear (enhanced load-bearing capacity), which runs smoothly, has low noise, and has a longer service life.

WPO is widely used in plastic extruders, beverage bottling production lines, small lifting equipment, and textile auxiliaries, balancing durability, ease of installation, and cost-effectiveness, providing reliable transmission for enterprises seeking flexible and medium-sized solutions.

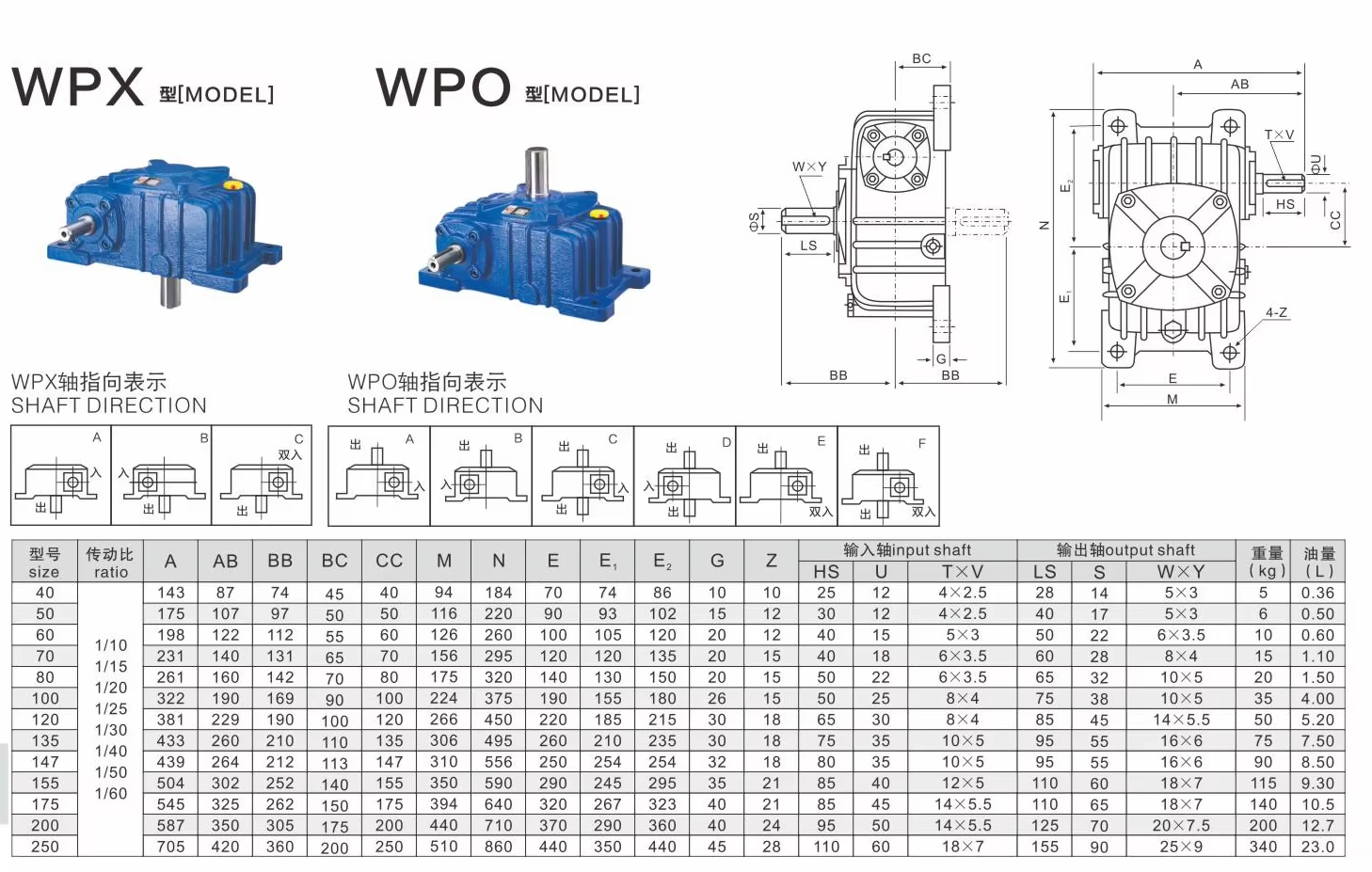

Product Details

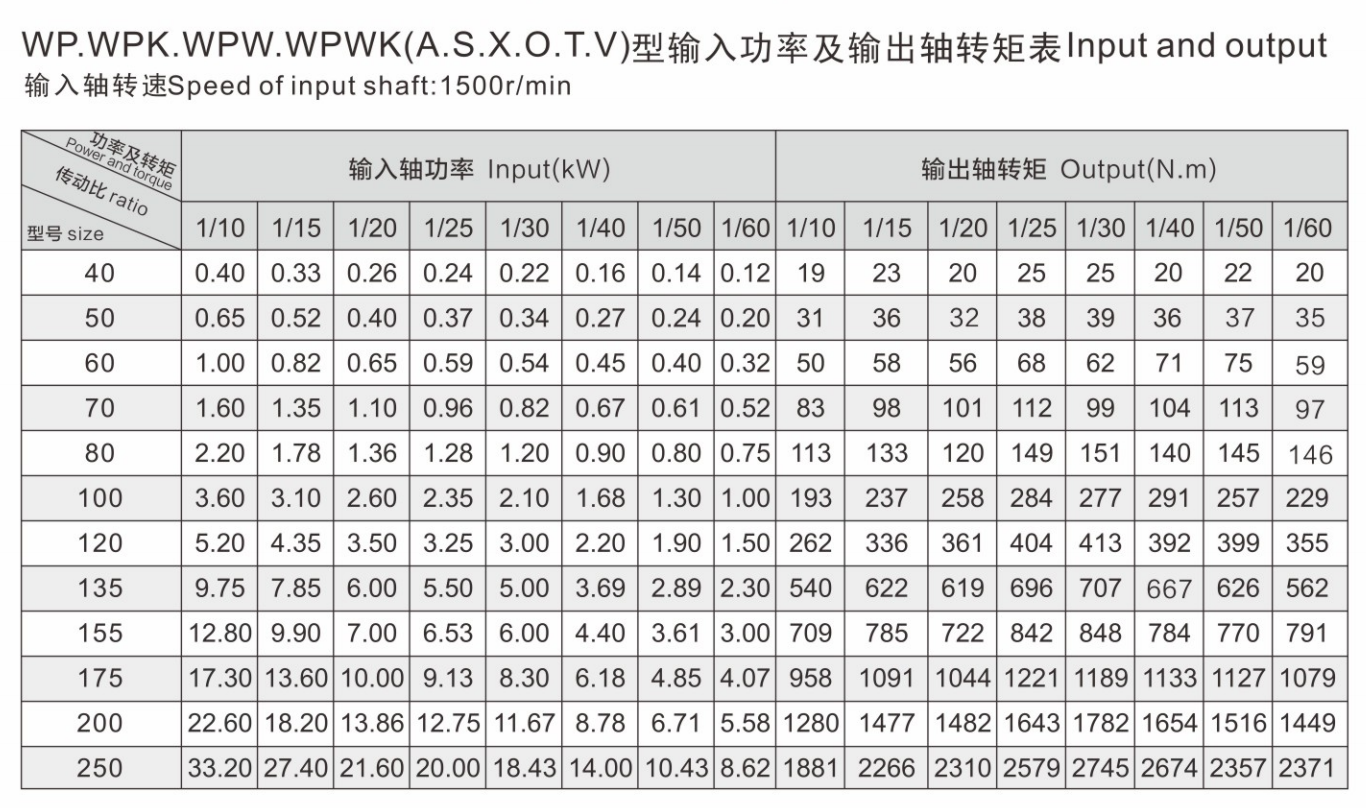

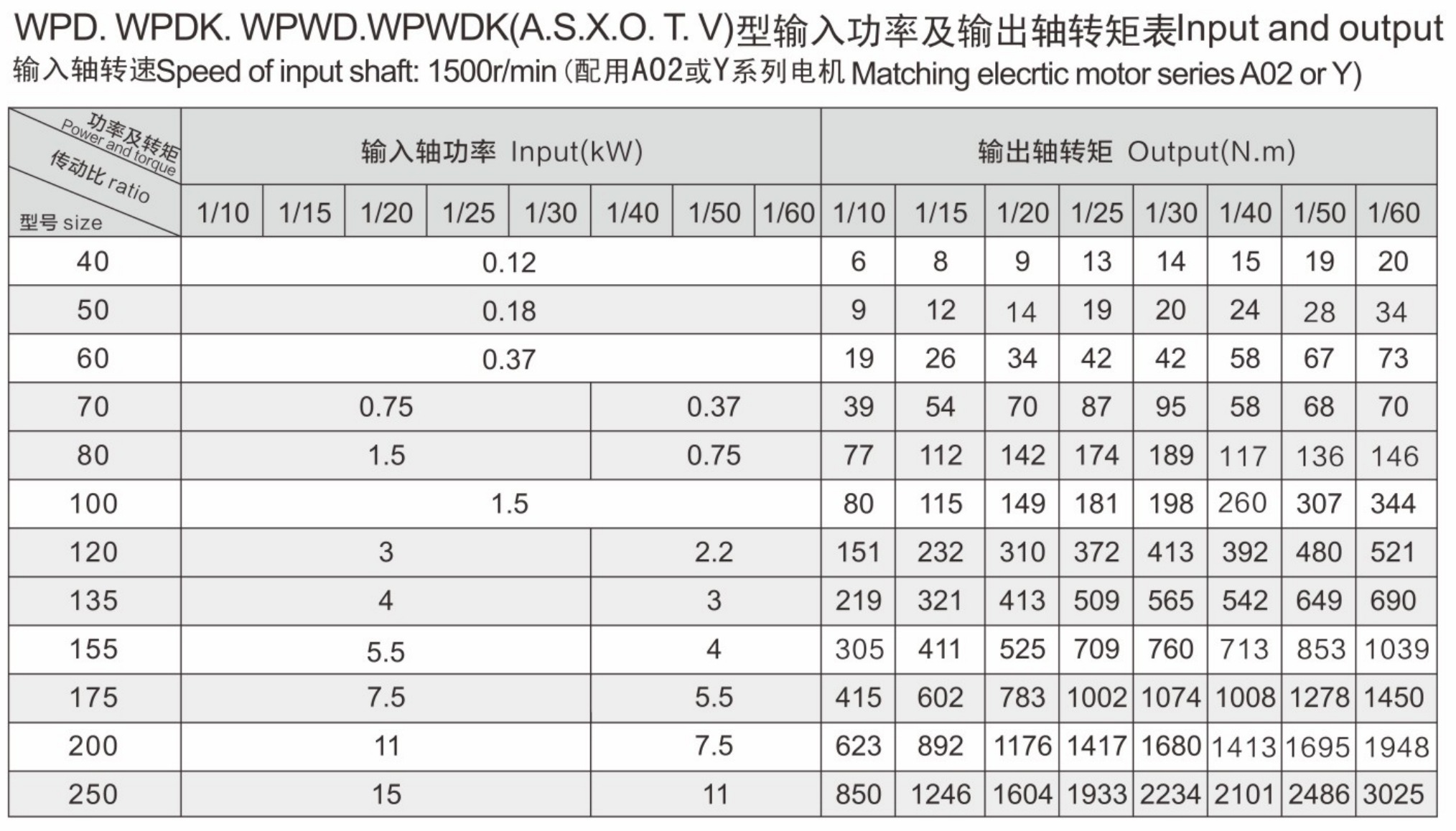

Dynamical capacity table

Application

Industrial conveying field	Mining machinery field	Construction machinery field

Food processing field	Logistics and warehousing field	New energy sector

Metallurgical field	Chemical engineering field	Agricultural machinery field
