Gearbox Speed Drive WPWKO Cast Iron Housing WP Reducer Lightweight
Product Introduction
The reduction ratio range is from 10:1 to 60:1, providing precise speed control and high torque output. Its compact design allows it to support multiple installation methods (horizontal or vertical), and the self-locking function prevents reverse movement, thereby improving safety. The Jiahuang WPWKO series reducer is an ideal choice for high reliability and low-noise applications, providing excellent performance even in harsh environments.
These reducers are widely used in industries such as plastic machinery, conveying systems, metallurgical equipment, and automated production lines. They perform well in lifting, packaging, and material handling applications, and can efficiently transmit power. Jiahuang WPWKO gearbox offers multiple input power and configuration options to ensure meeting different mechanical needs. Its design emphasizes low maintenance, long lifespan, and stable operation, making it a reliable choice for industrial deceleration transmission.
|
Product Name: |
WPWKO Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details

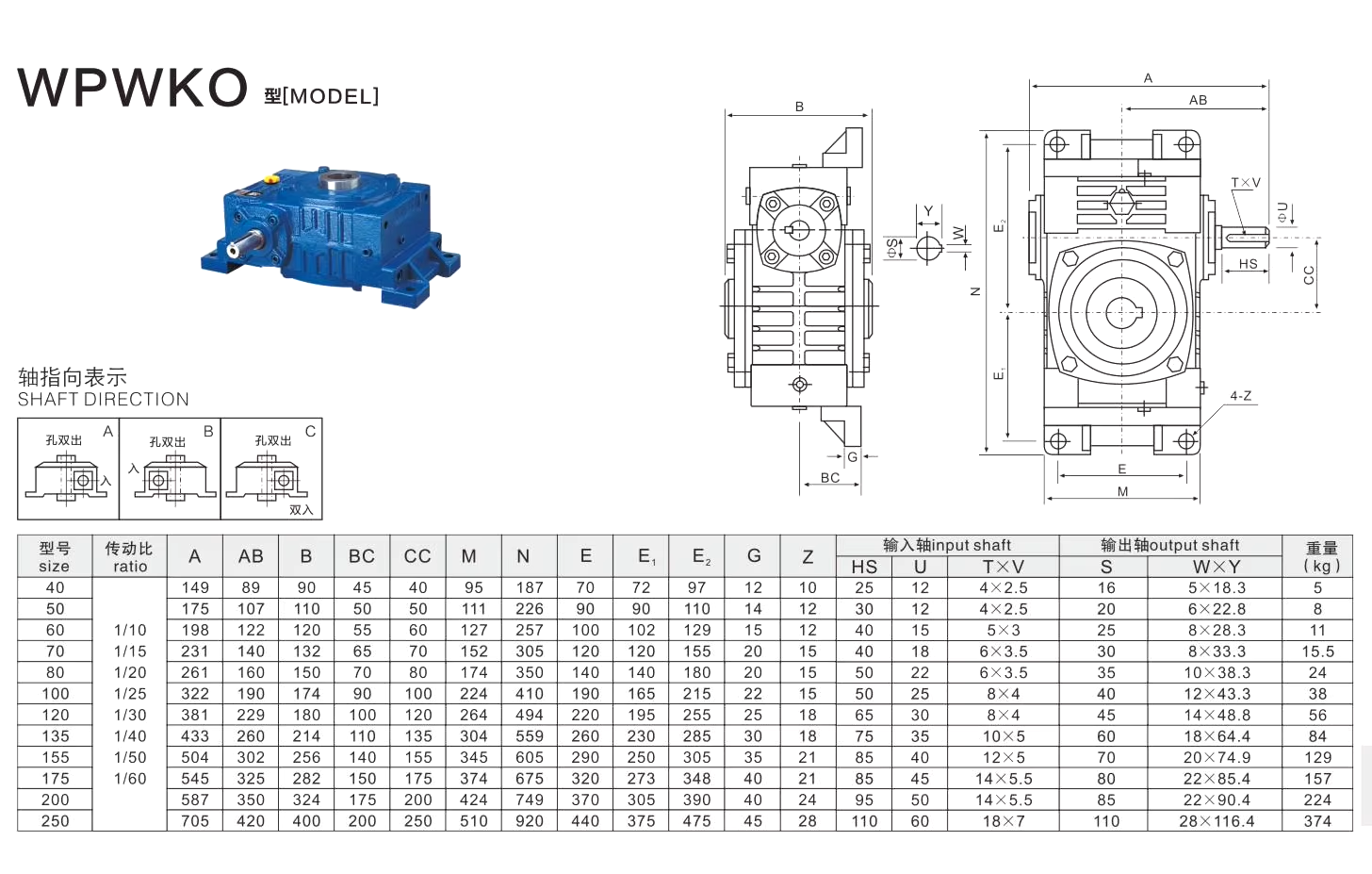

![Gearbox Speed Drive.png]()
Dynamical capacity table
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
