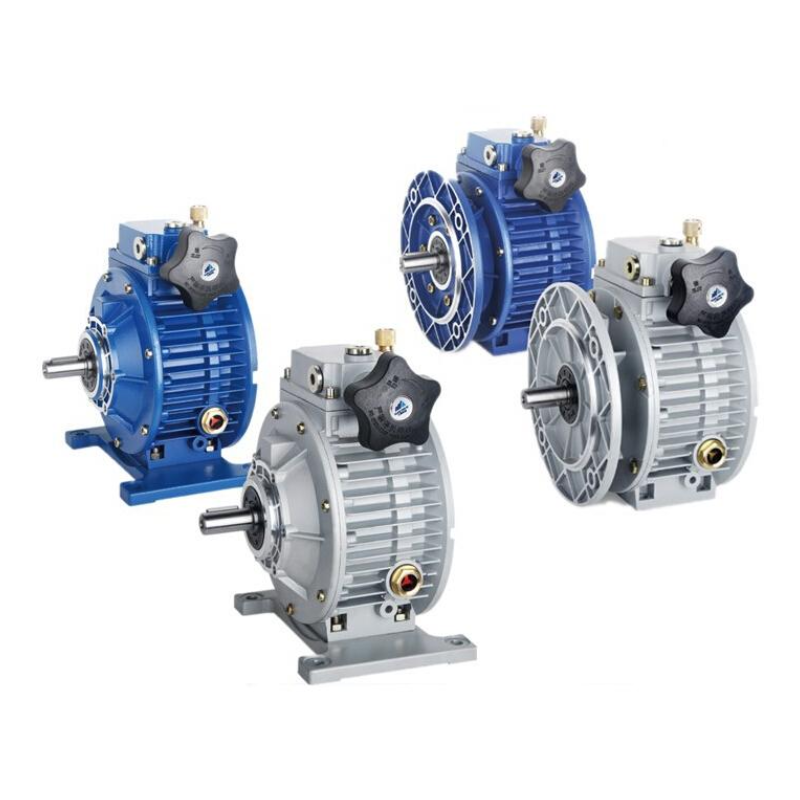

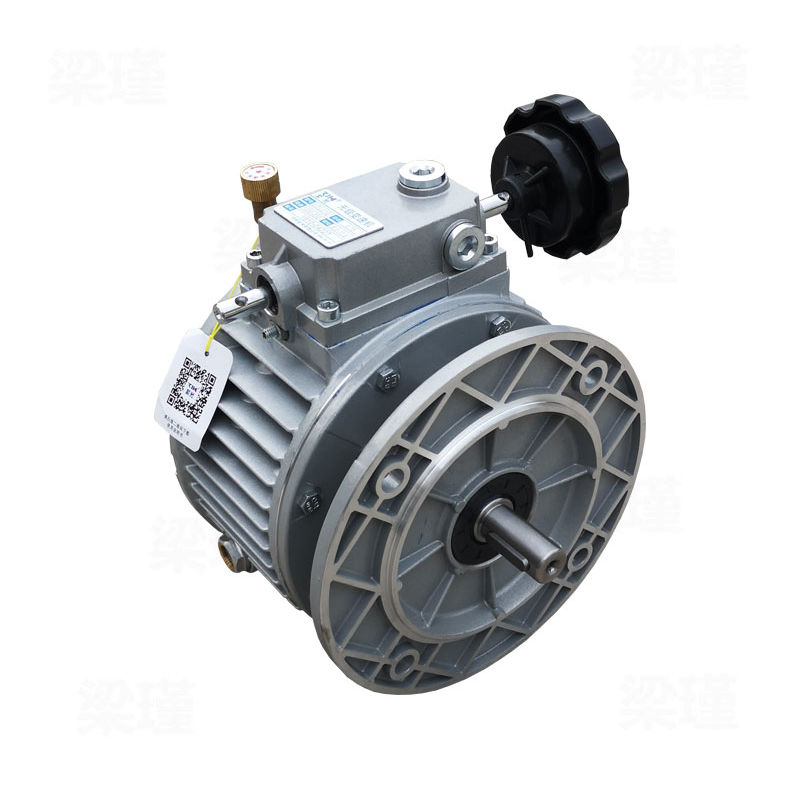

UDL Mechanical Speed Variators Adjustable Speed Drive Smooth Speed Adjustment Continuous Variable Transmission
Product Introduction
|
Product Name: |
UDL Series Variable Speed Gearbox |
Type: |
Speed Variator |
|
Rated Power: |
0.18-0.75kw |
Installation: |
Vertical and Horizontal |
|
Input Speed: |
up to 2000rpm |
Output Speed: |
1000---200rpm |
|
Output Torque: |
up to 100nm |
Combination: |

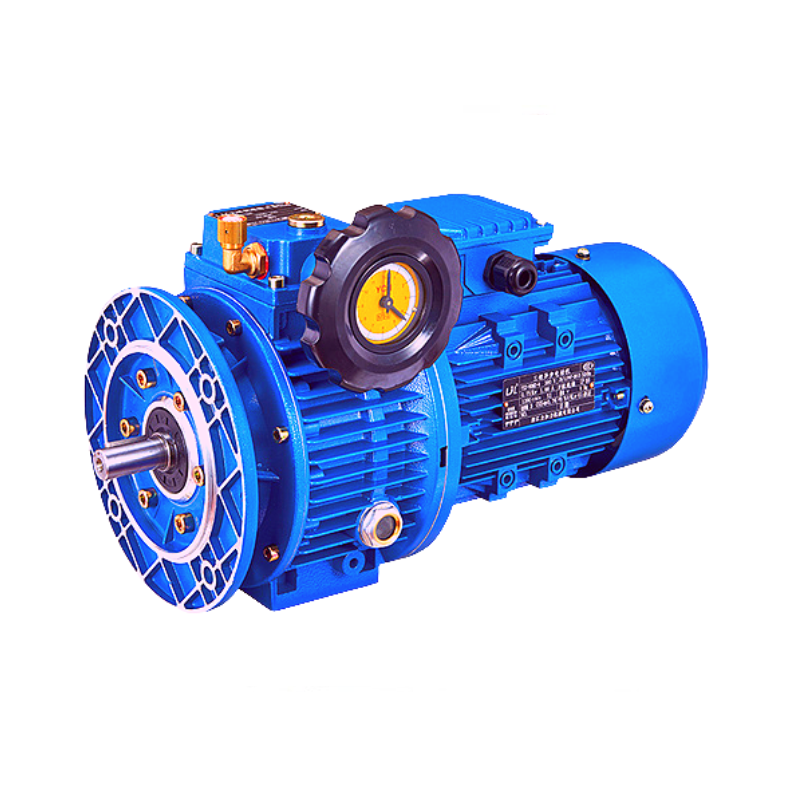

Udl+Motor,Udl+Nmrv |
|
Motor Votaloge: |
220V/ 380V / 440V |
Motor Hz: |
50Hz /60Hz |
|
Material: |
Aluminium alloy & cast iron |
Packing: |
Wooden Box |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details
Characteristics:
1. High speed regulation accuracy: 0.5-1 rpm (revolutions per minute)
2. Wide speed range: 1:1.4 to 1:7 speed ratio can be freely switched
3. High structural strength and long service life
4. Convenient speed regulation
5. Support continuous operation, forward and reverse rotation, smooth operation, stable performance, and low noise
6. Fully sealed design, suitable for various working environments
7. Compact structure and small volume
8. Made of high-quality aluminum alloy die-casting, it has a stylish appearance, light weight, and rust resistance
9. Strong adaptability: UDL series transmissions can be combined with various reducers to achieve low-speed stepless speed regulation.
Product Parameters
|
Models |
Power |
Ratio |
O. Speed |
O.Torque |
O. Shaft Dia. |
O. Flange Dia. |
|
UDL002 |
0.18KW |
1.6~8.2 |
800~170rpm |
1.5~3N.m |
φ11 |
φ140 |
|
UDL005 |
0.25KW |
1.4~7 |
1000~200rpm |
2.2~6N.m |
φ14 |
φ160 |
|
UDL005 |
0.37KW |
1.4~7 |
1000~200rpm |
3~6N.m |
φ14 |
φ160 |
|
UDL010 |
0.55KW |
1.4~7 |
1000~200rpm |
4~8N.m |
φ19 |
φ200 |
|
UDL010 |
0.75KW |
1.4~7 |
1000~200rpm |
6~12N.m |
φ19 |
φ200 |
|
UD020 |
1.1KW |
1.4~7 |
1000~200rpm |
9~18N.m |
φ24 |
φ200 |
|
UD020 |
1.5KW |
1.4~7 |
1000~200rpm |
12~24N.m |
φ24 |
φ200 |
|
UD030 |
2.2KW |
1.4~7 |
1000~200rpm |
18~36N.m |
φ28 |
φ250 |
|
UD030 |
3.0KW |
1.4~7 |
1000~200rpm |
24~48N.m |
φ28 |
φ250 |
|
UD030 |
4.0KW |
1.4~7 |
1000~200rpm |
32~64N.m |
φ28 |
φ250 |
|
UD050 |
5.5KW |
1.4~7 |
1000~200rpm |
45~90N.m |
φ38 |
φ300 |
|
UD050 |
7.5KW |
1.4~7 |
1000~200rpm |
59~118N.m |
φ38 |
φ300 |

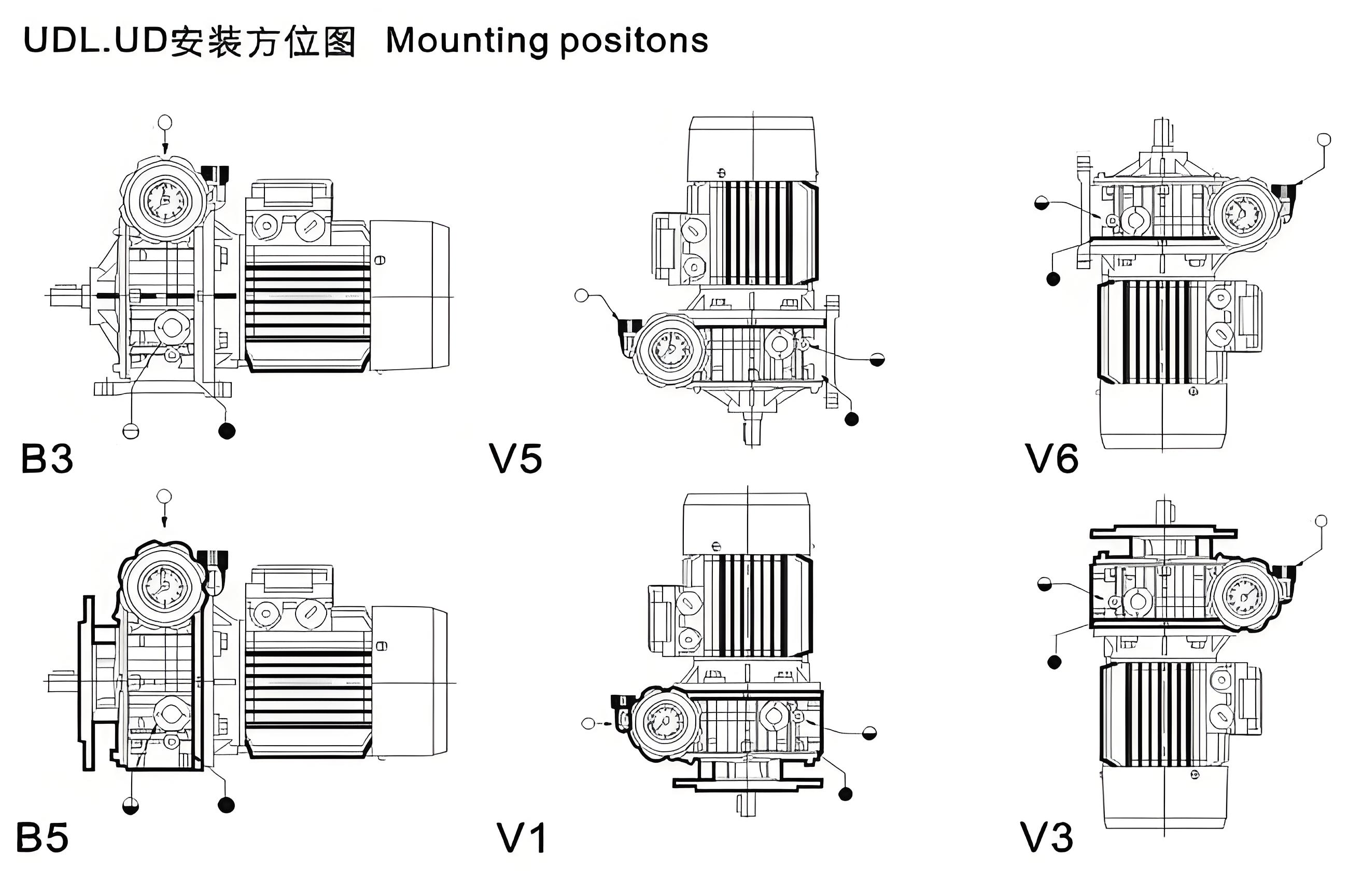

Mounting Position

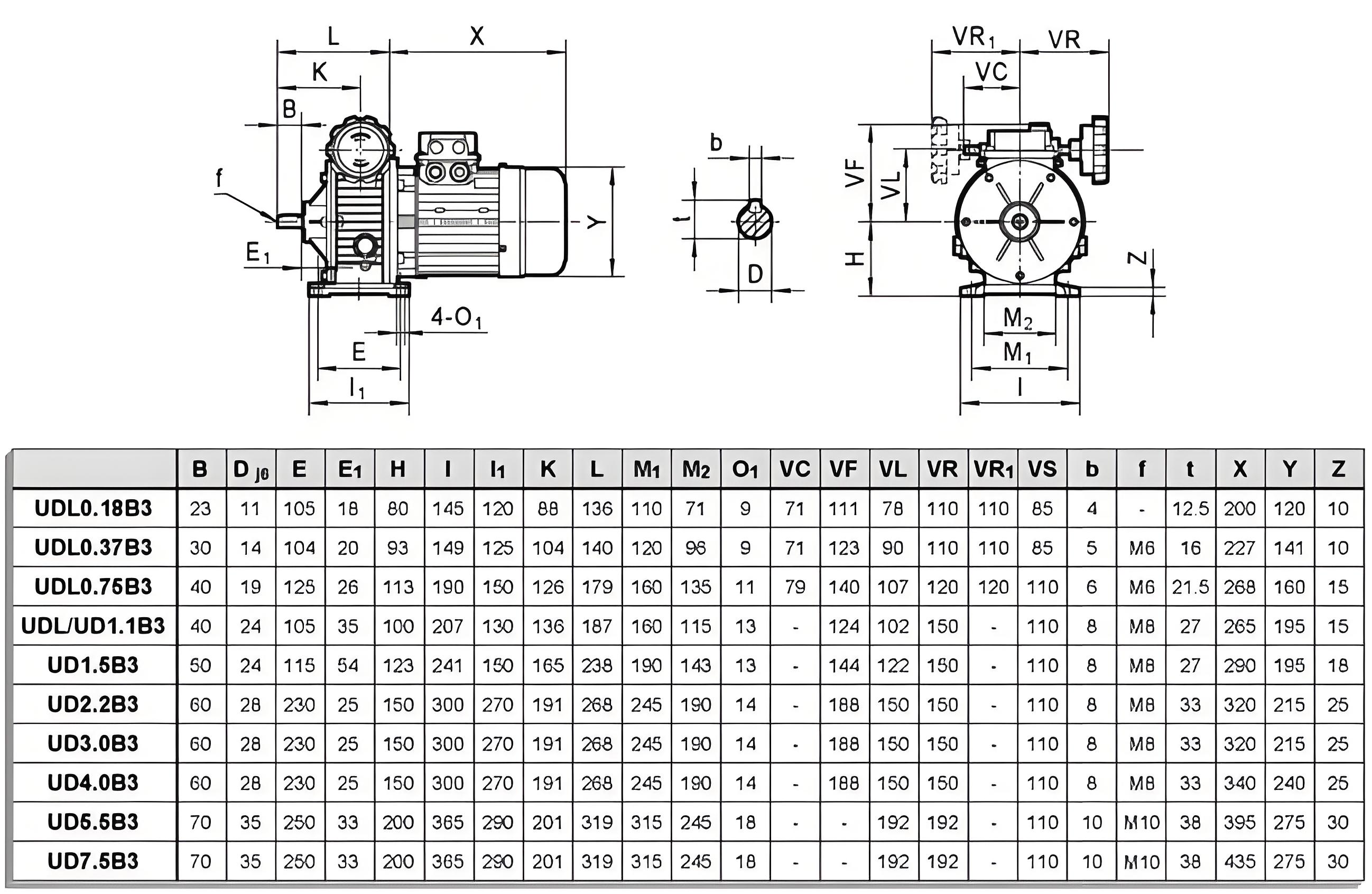

Size Table:
Application Cases
 |
 |
 |

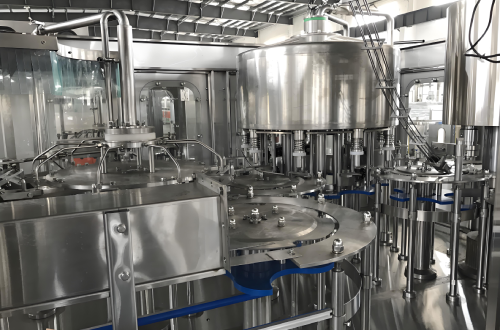

| Food processing |

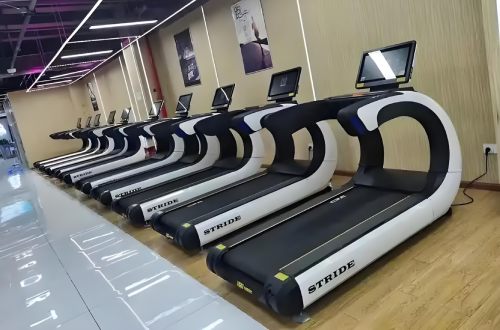

Agricultural cultivation | Fitness equipment |
 |
 |
 |
| Small yacht propulsion system |

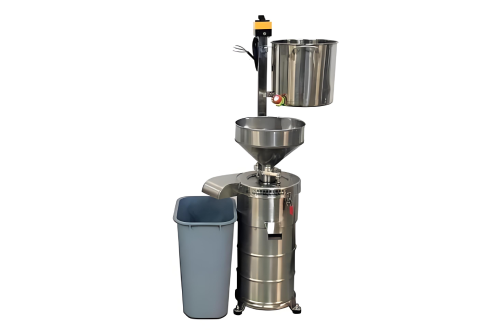

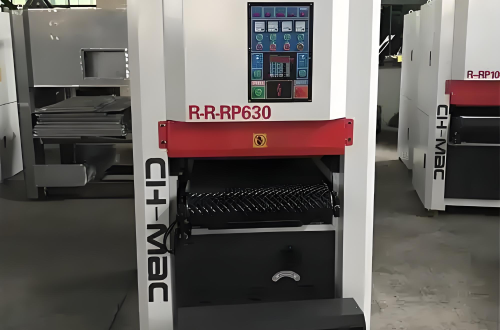

Woodworking sanding machine sanding belt | Commercial soybean milk grinder |
 |
 |
 |

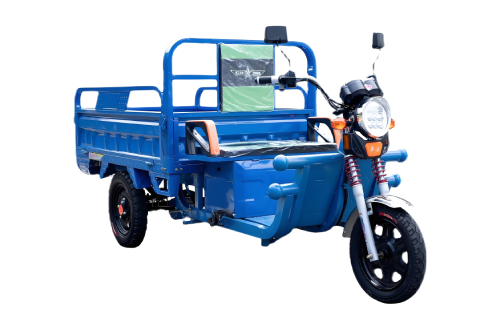

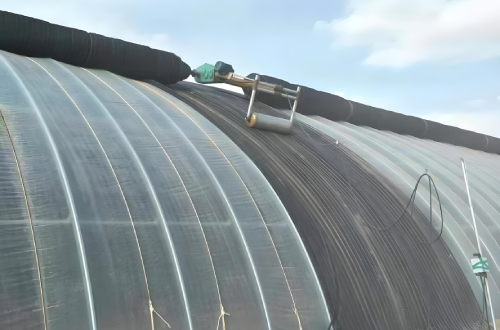

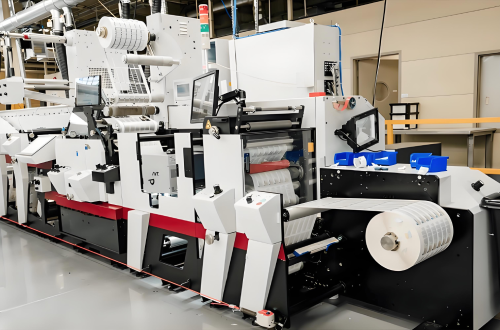

| Freight electric tricycle | Vegetable greenhouse roller shutter machine | Adhesive label printing machine |
