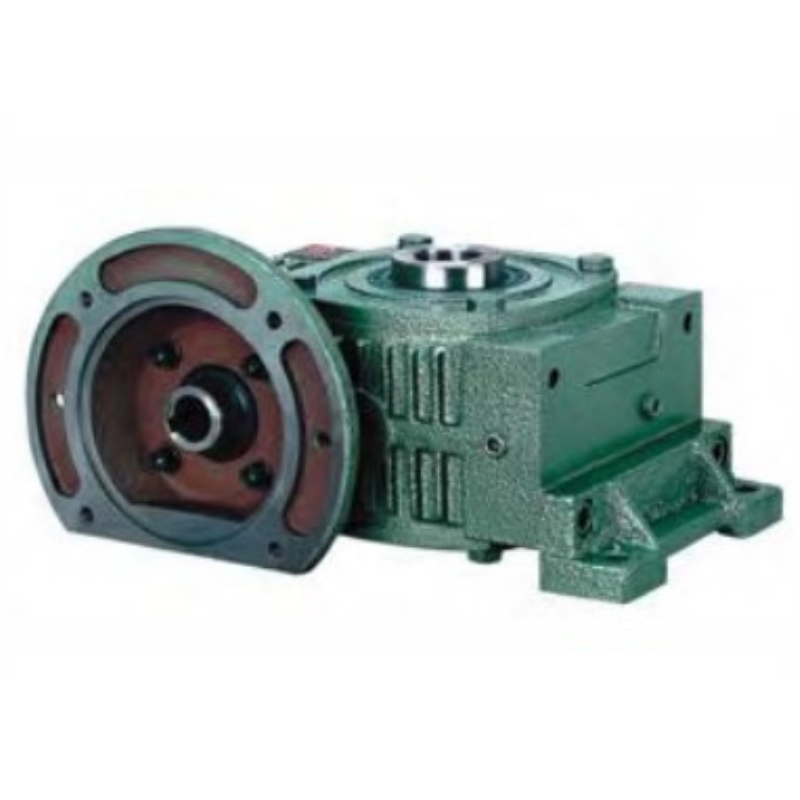

Gearbox Industrial Transmission Reduction Precision Drive WPWDKO Worm Precision Gearbox

Short Description:

The Jiahuang WPWDKO series is a sturdy and durable coaxial hard tooth surface worm gear reducer designed specifically for high torque and precision transmission. This series of reducers has a compact structure and offers single-stage or two-stage reduction options, with a speed ratio range of 10-60 (single-stage) and 200-900 (two-stage), and an input power of up to 33.2 kW.

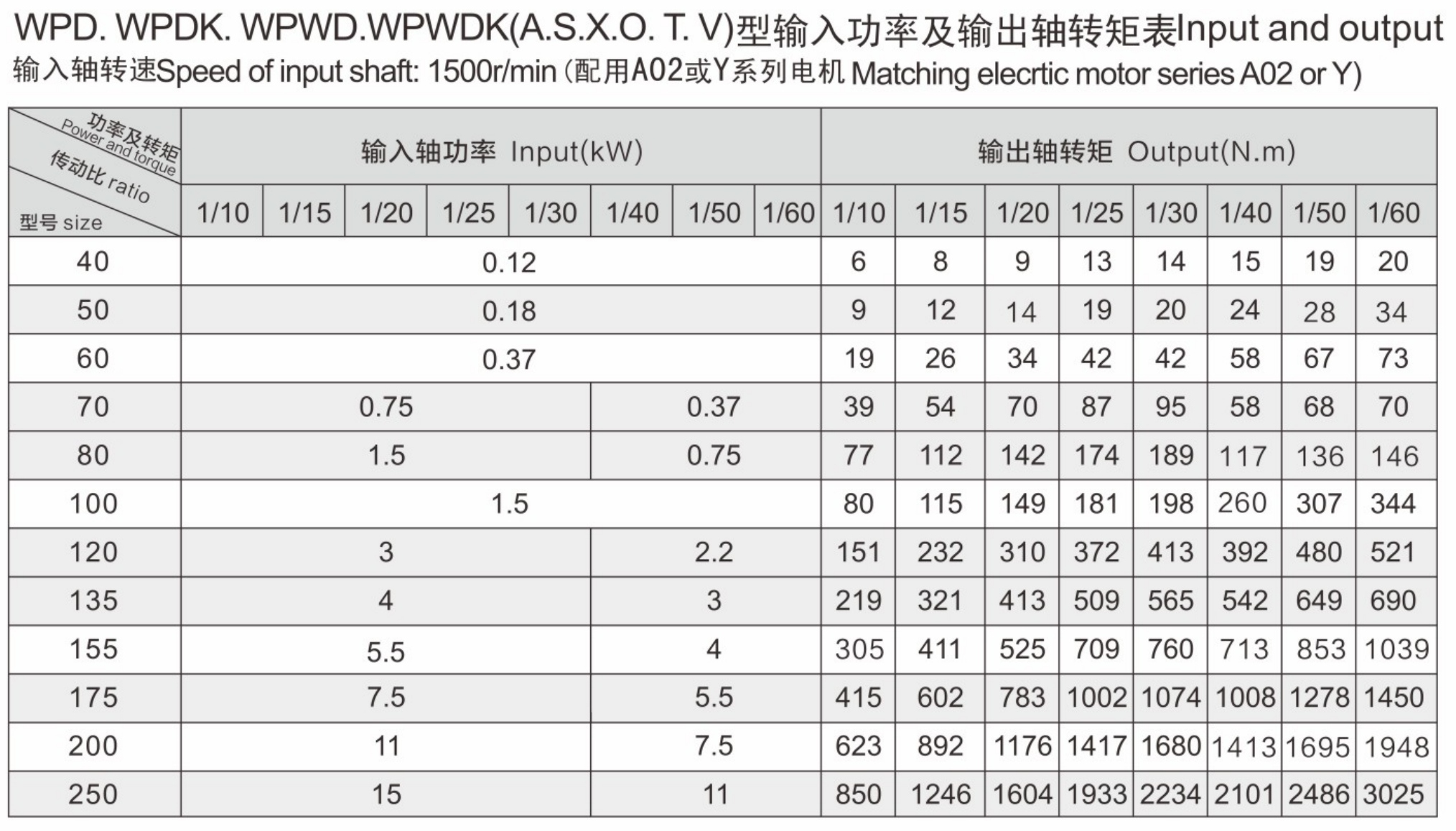

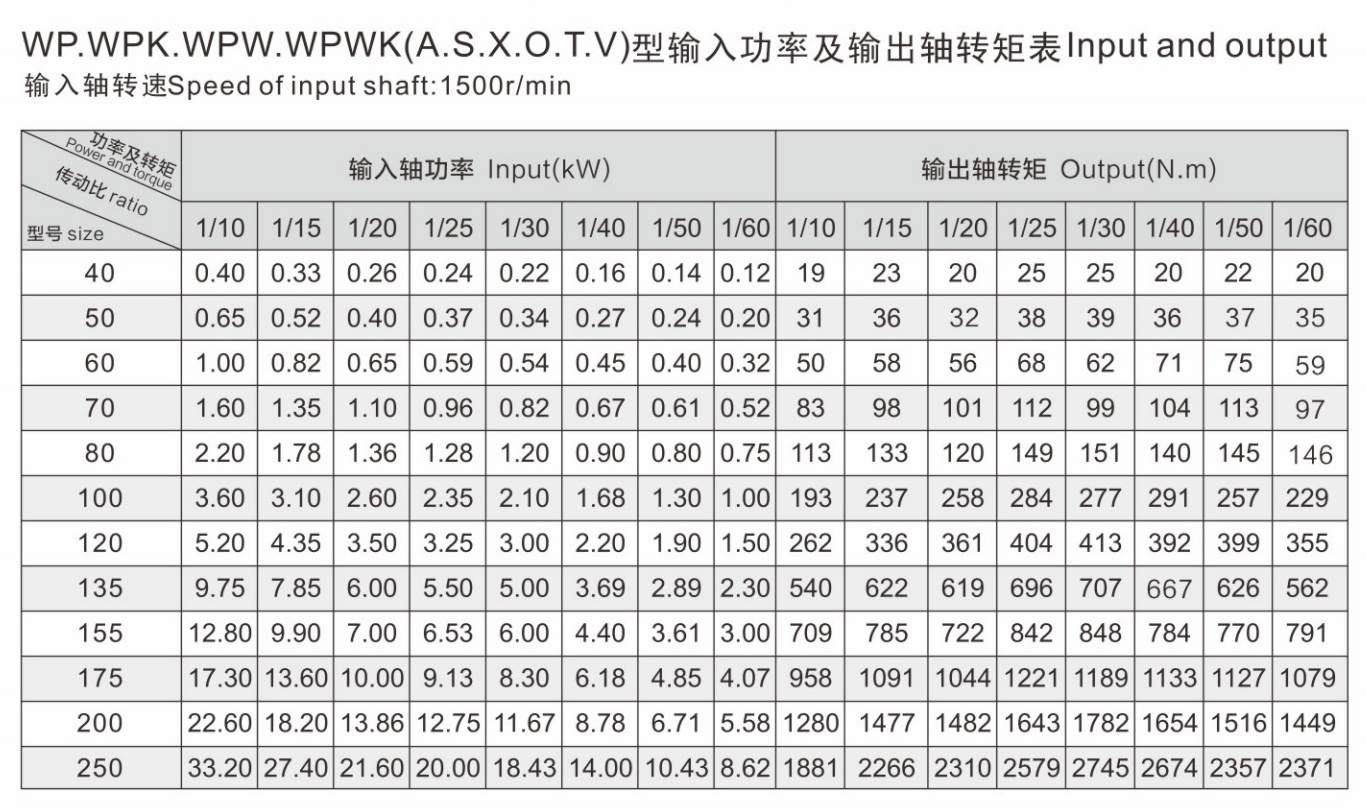

Input power: 0.12~33.2kW

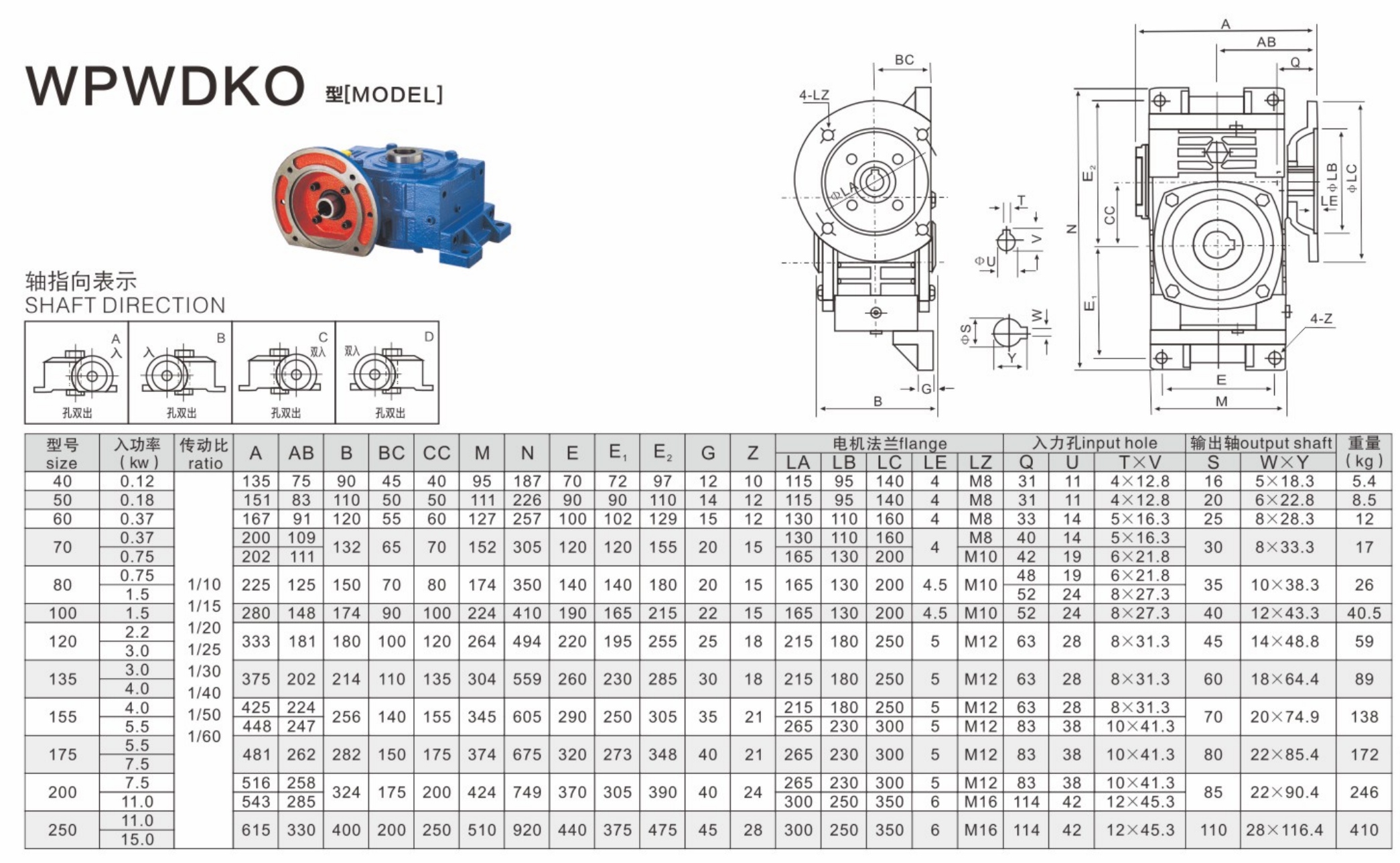

Size: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 250
Ratio: 10, 15, 20, 25, 30, 40, 50, 60
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

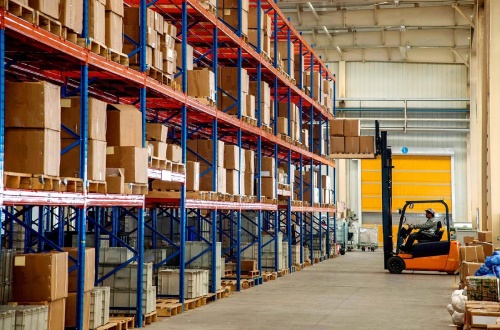

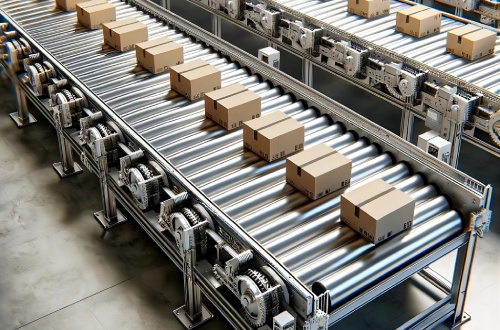

The reducers in this series use hardened steel worm gears and wear-resistant tin bronze worm gears, ensuring durability and smooth operation even under heavy loads. Its universal installation design and bi-directional input shaft flexibility make it suitable for various industrial applications such as robotics, packaging, and material handling.

Compared with the WPWKO model, WPWDKO provides stronger versatility with its multi configuration housing (basic or universal) and wider speed ratio range; WPWKO typically targets simpler layouts and adopts fixed installation options. WPWDKO also supports higher torque output (up to 6050 N · m) and offers a hollow output shaft option, making it more adaptable in complex transmission systems. Both series run quietly and efficiently, but WPWDKO's hardened gears and modular design make it perform well in heavy-duty applications that require precise motion control and reliability.

Product Name:	WPWDKO Gearbox	Ratio:	10,15,20,25,30,40,50,60
Model No.	40,50,60,70,80,100,120,135,155,175,200,250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
