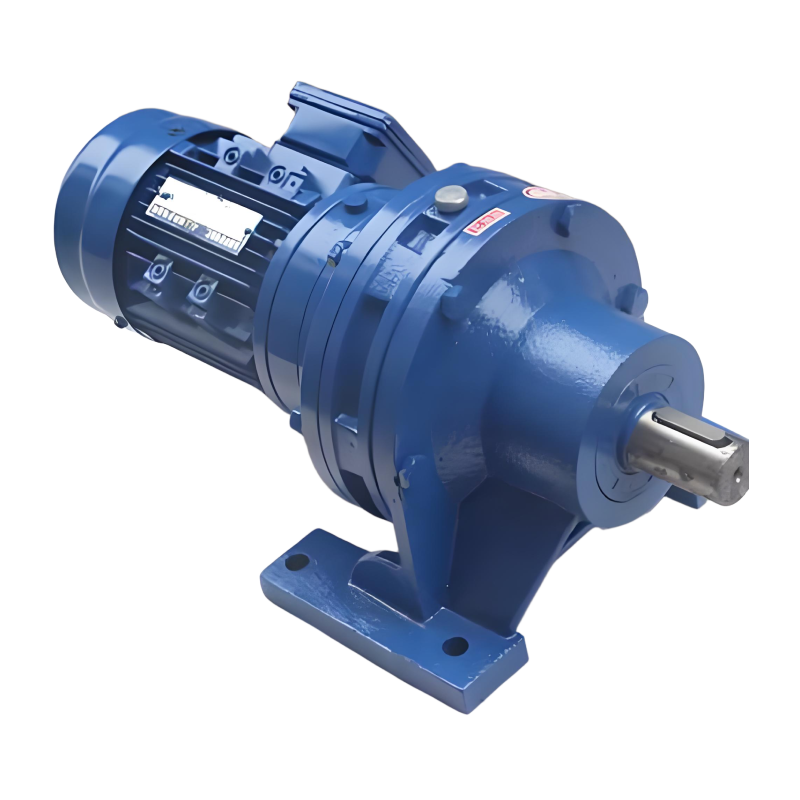

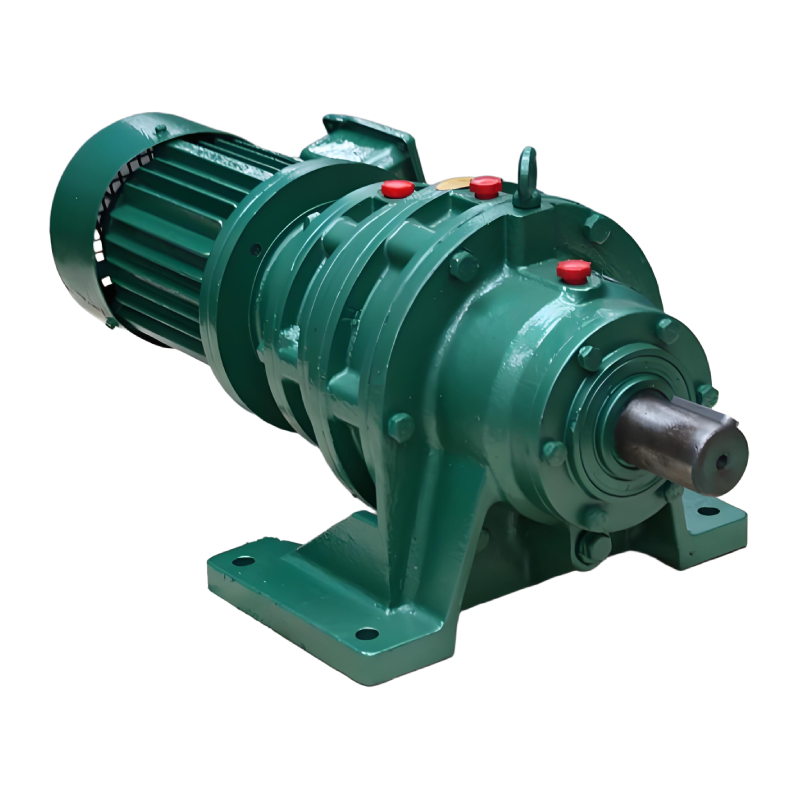

X series Cycloidal Reducer High Torque Transmission For Industrial Conveyors Cycloidal Pinwheel Gearbox Foot Mounted Cyclo Gearbox
Product Introduction
Compared with the WB type, the X series focuses on medium to high load requirements and has a larger range of power and torque; The WB type is a miniature model with a compact size and flexible installation, which is more suitable for the transmission of small equipment with light loads such as food and textile.
|
Product Name: |
X series Cycloidal Pinwheel Gearbox |
Type: |
Cycloidal |
|
Power: |
0.18kw~50kw |
Output Torque: |
25~250n.M |
|
Ratio: |
5-100 |
Packing: |
Wooden Box |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details
Application Cases
 |
 |
 |
| Textile printing and dyeing industry |
Light Industry and Food Industry | Metallurgical and mining industry |
 |
 |
 |
| Petrochemical industry |
Lifting and transportation industry |
Construction Machinery Industry |
 |
 |
 |
| Agricultural machinery industry | Water treatment industry | Woodworking Machinery Industry |
