Worm Gear Reducer WPA Bronze Wheel Steel Worm Shaft Industrial WP SeriesInput power: 0.12~33.2kW
Product Introduction
Its shell is made of thickened cast iron, which is sturdy and durable, can resist external impacts, and has excellent sealing performance to prevent oil leakage and dust from entering. The reducer is designed to be easy to use: easy to install, and easier to maintain in the later stages, thereby reducing downtime.
The internal worm gear is made of tin bronze material, matched with 45 # high-quality steel worm gear, and has undergone professional heat treatment. This material combination enhances wear resistance and load-bearing capacity, ensuring long-term stable operation.
|
Product Name: |
WPA Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

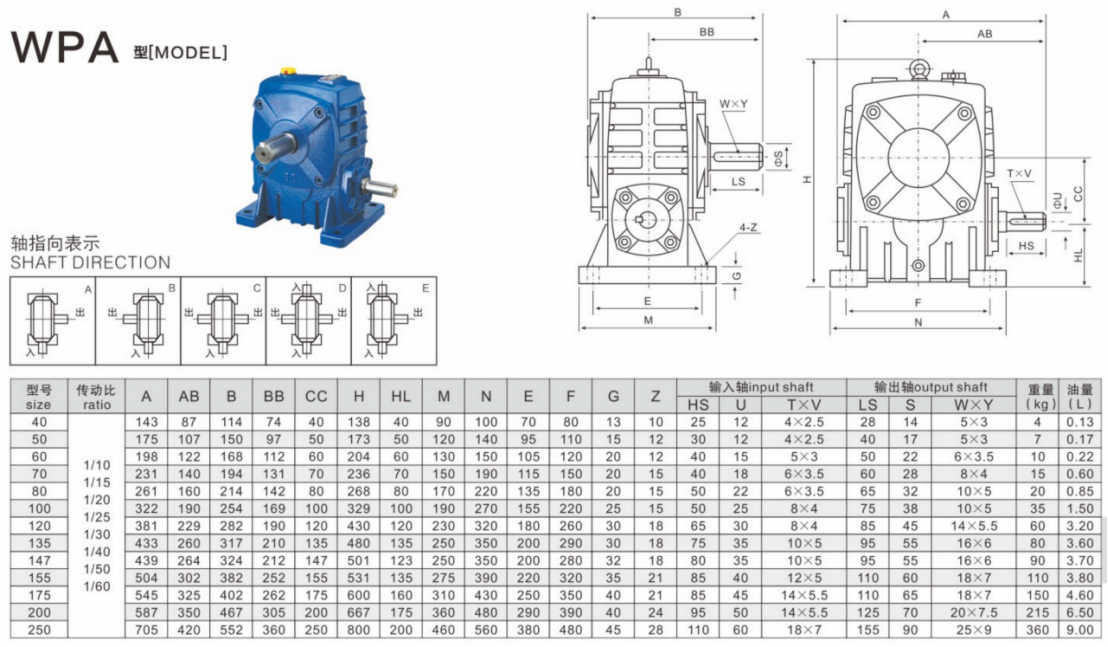

Product Model

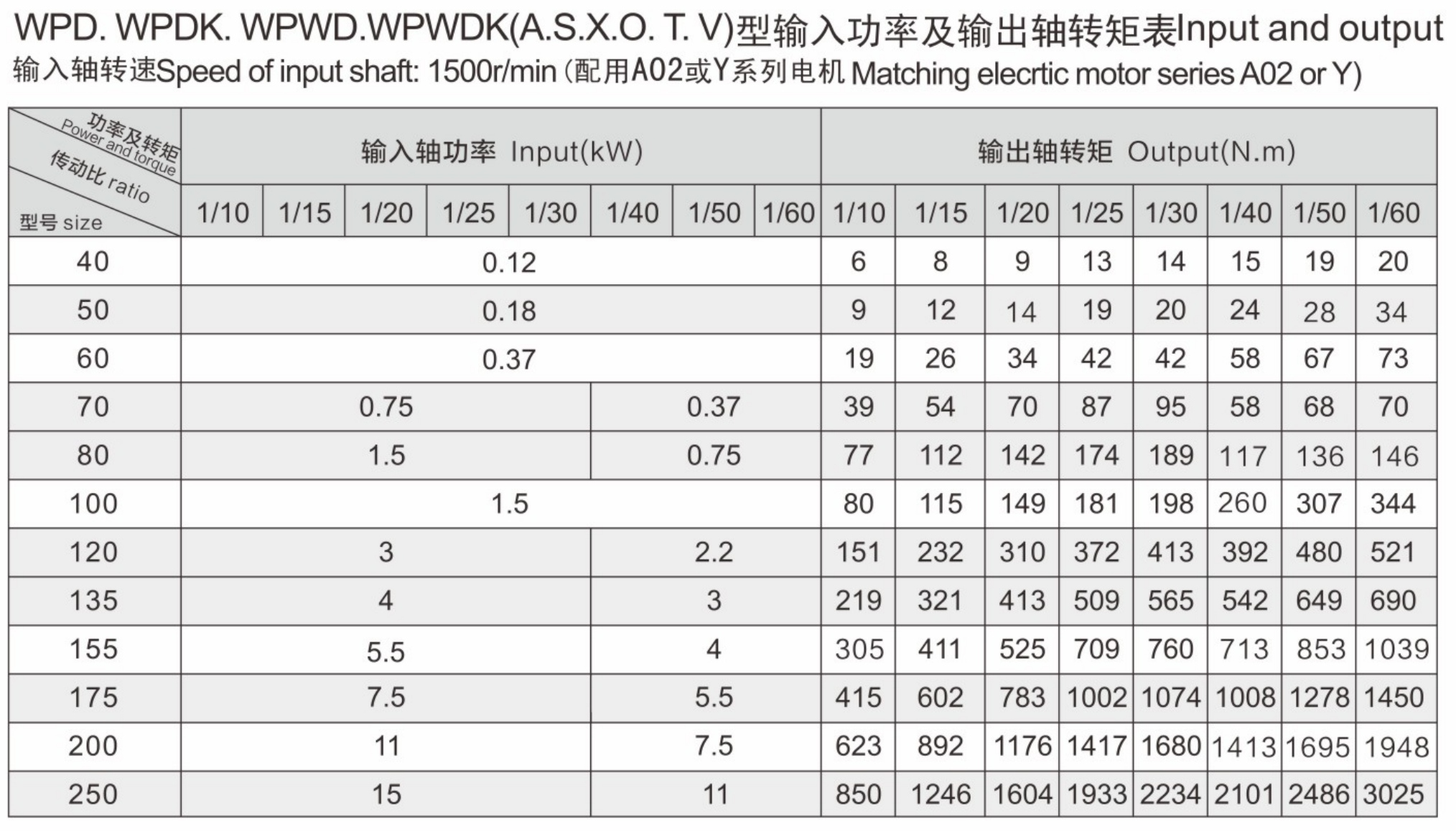

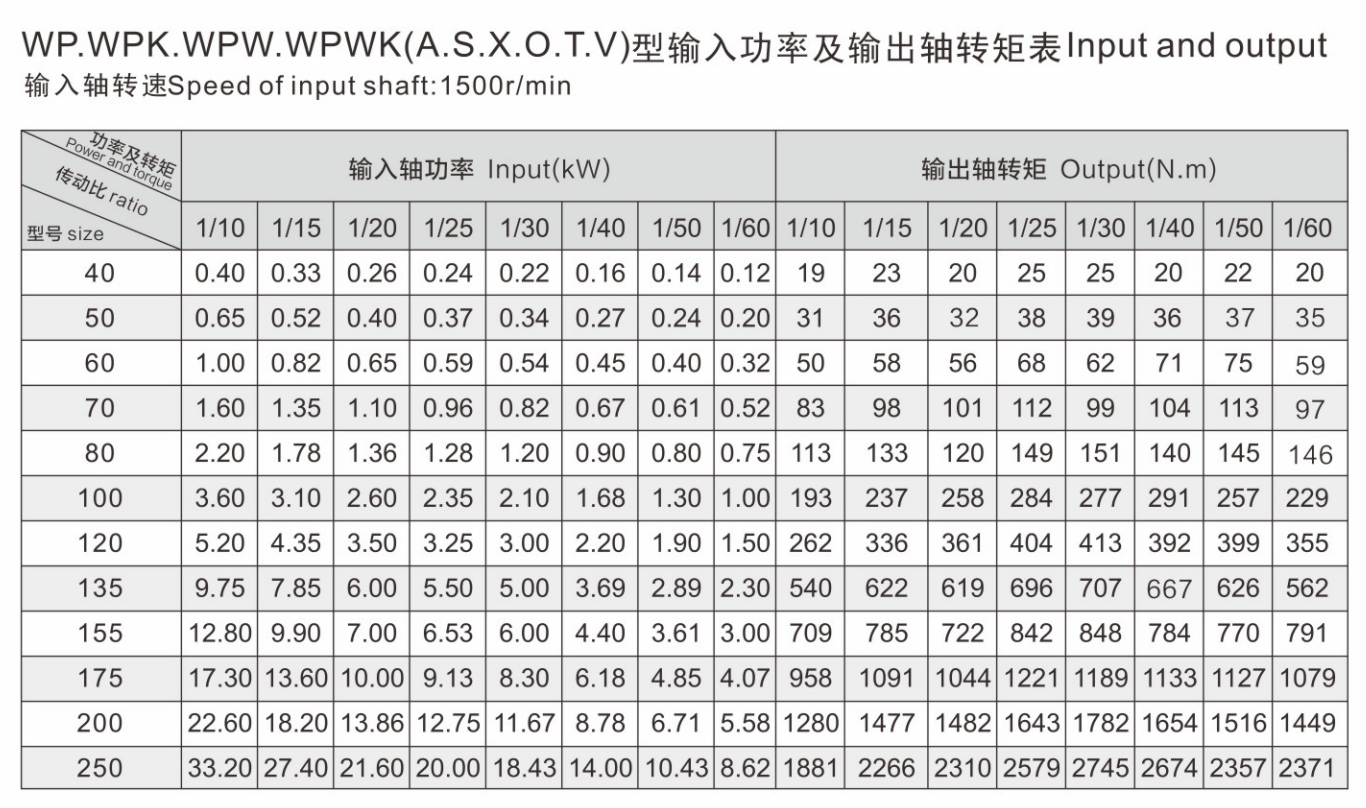

Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
