SWL Screw Jack Weight Lift Worm Gear Cast Iron 5 Ton Manual Control With Top Plate Lifting Capacity For Industrial Machinery
Product Introduction
|
Its design emphasizes practicality: the space saving structure, lightweight construction, and compact footprint make it an ideal choice for installations with limited space. At the same time, the wide range of compatible power sources from electric to manual operation ensures that it can adapt to various on-site conditions. These reducers have low operating noise, easy installation, and flexible deployment: they can operate independently or in combination, allowing for precise control of lifting height or propulsion distance according to programming. With multiple structures and assembly configurations, as well as customizable lifting heights according to user needs, they can be seamlessly integrated into various applications, from small adjustment systems to coordinated industrial lifting platforms. The Jiahuang SWL series redefines the efficiency of basic lifting components with its high reliability and long service life. |
 |
|
Product Name: |
SWL Worm Gear Screw Jack |
Gearing Arrangement: |
Worm |
|
Input Speed: |
5-1800r/min |
Output Speed: |
0.0125-2.60r/min |
|
Output Torque: |
8.86-464 |
Application: |
Lifting |
|
Material: |
Cast Iron |
Packing: |
Wooden Box |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details

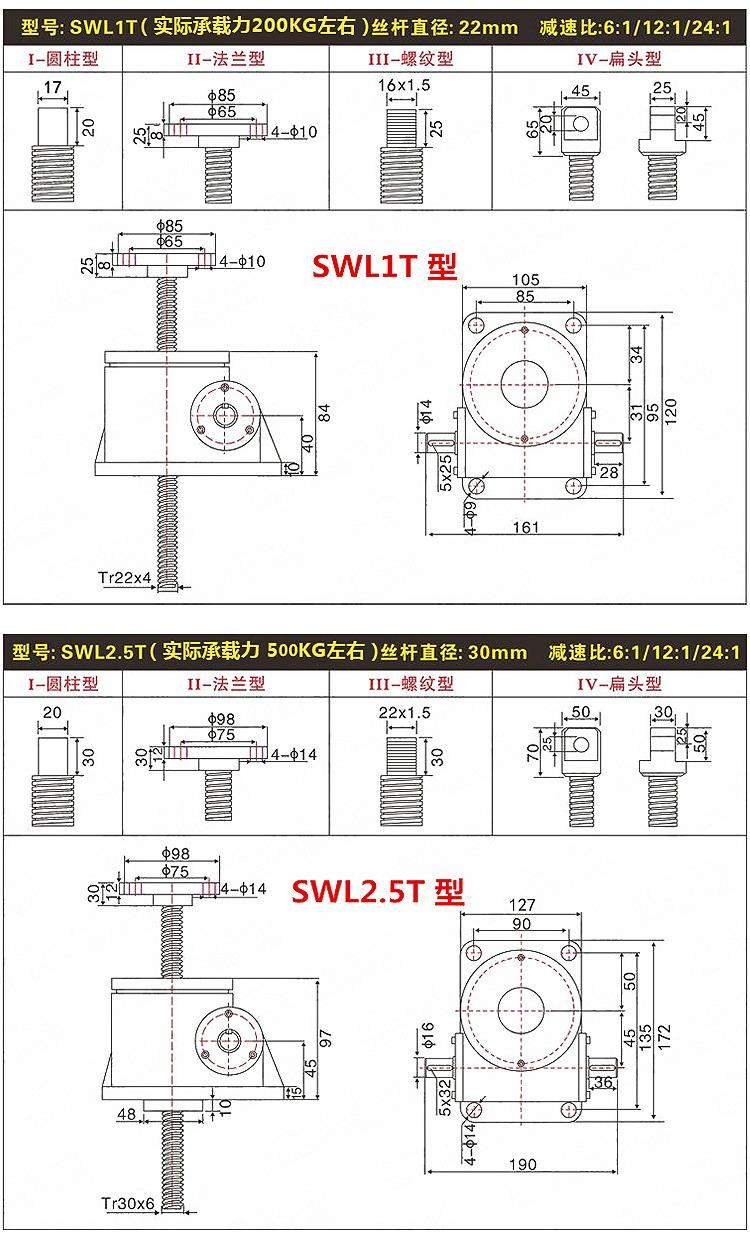

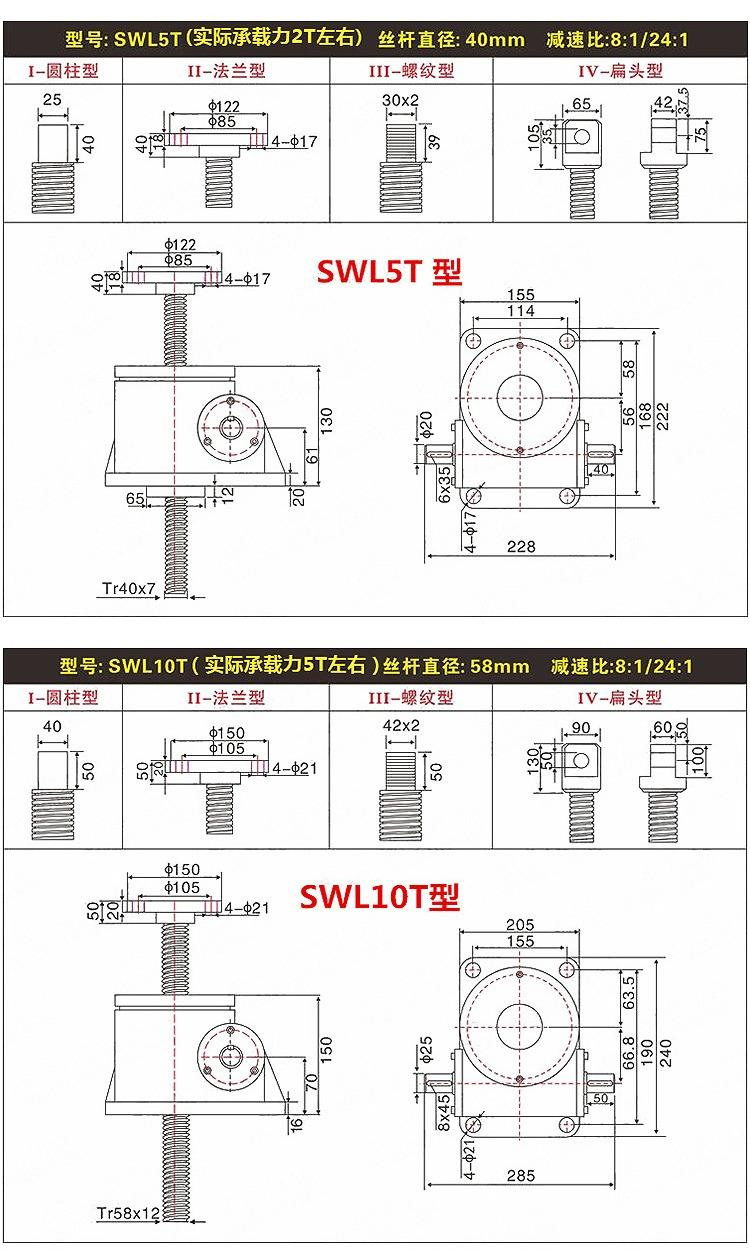

SWL Worm Gear Screw Jack Size
 |
 |
Application Cases
 |
 |
 |
| CNC machine |
Automated production line lifting platform | Shelf stacker crane |
 |
 |
 |
| Welding robot |
Construction Machinery Concrete Cloth Machine | 3D Printing Equipment |
