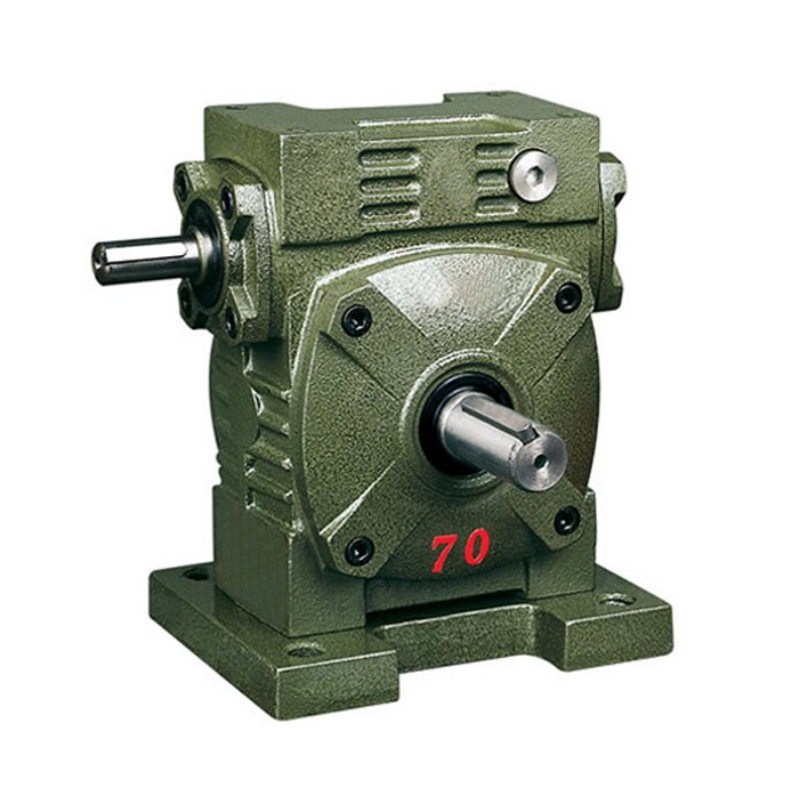

Wp Reduction Gearbox WP High Temperature Reducer For Furnace Oven Equipment WPWS
Product Introduction
Its compact design includes multiple installation options (base or flange) and output configuration (solid or hollow shaft), making it suitable for industries such as plastics, mining, construction, and material handling where space is limited and high torque is crucial.
The main difference between WPWS and WPW series lies in their design direction and installation flexibility. WPWS is typically designed for specific universal installation locations, with a focus on direct integration; The WPW series emphasizes universal installation design, allowing installation in multiple directions (horizontal, vertical, or inclined) without changing the structure, thereby providing stronger adaptability in various mechanical layouts. The structural materials and efficiency characteristics of both are similar, but the design of WPW makes it more suitable for applications that require flexible alignment and compact installation in complex systems.
|
Product Name: |
WPWS Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details

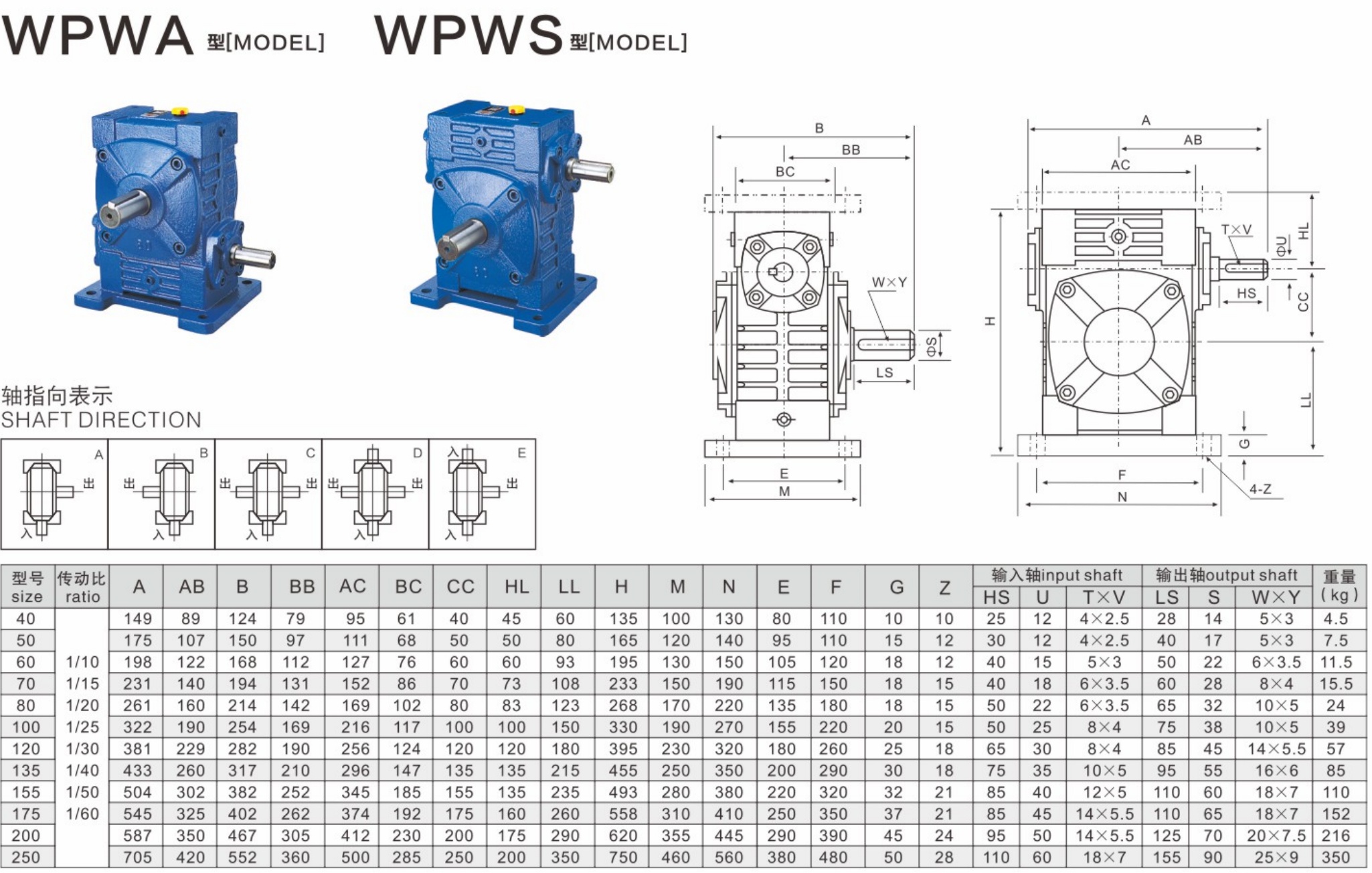

Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
