Worm Gear Reducer Transmission Small Pulley Speed WPEKS

Short Description:

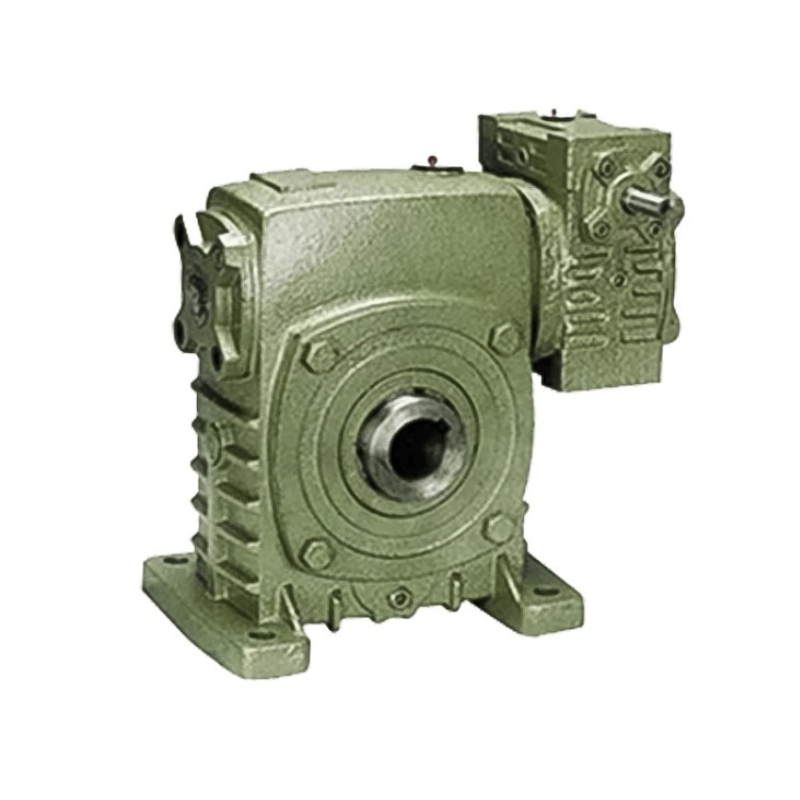

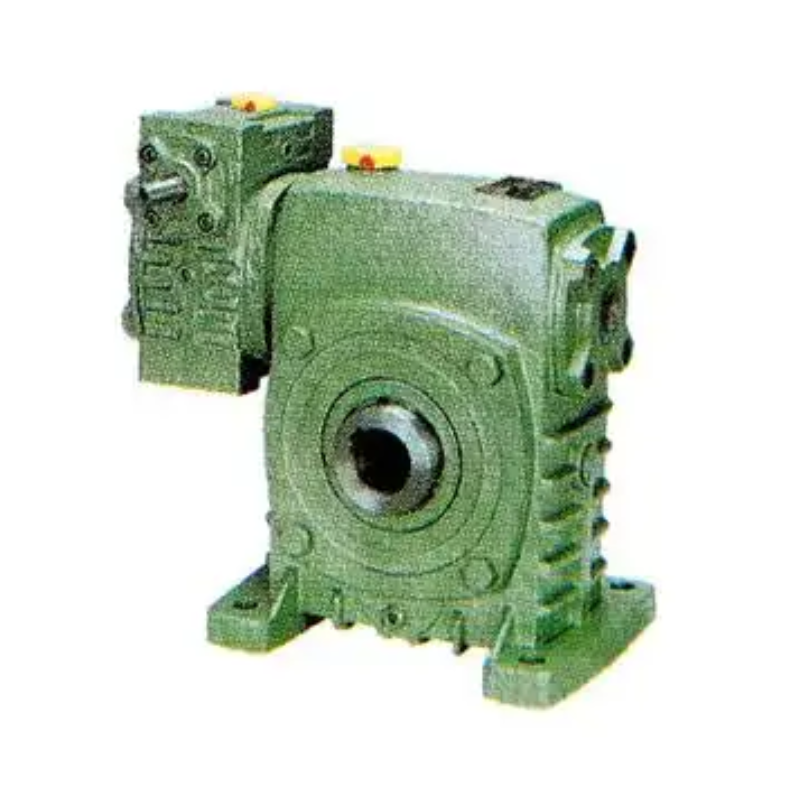

The WPEKS worm gear box is distinguished from the WPES worm gear box by its hollow output shaft - a key upgrade that the WPES worm gear box lacks. The WPEKS worm gear box retains the practical vertical layout of WPES (input shaft on top, output shaft on bottom) to meet the requirements of overhead power input. The hollow output shaft design allows it to easily pass through long shafts or multi unit components without the need for additional couplings, simplifying equipment integration.

Input power: 0.12~33.2kW
Size: 40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250
Ratio: 200,300,400,500,600,800,900
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

WPEKS is highly suitable for small lifting equipment, textile rollers, and compact conveyor systems. It combines the layout flexibility of WPES with the transmission convenience of hollow shafts, providing JIAHUANG's iconic durability for light to medium industrial loads.

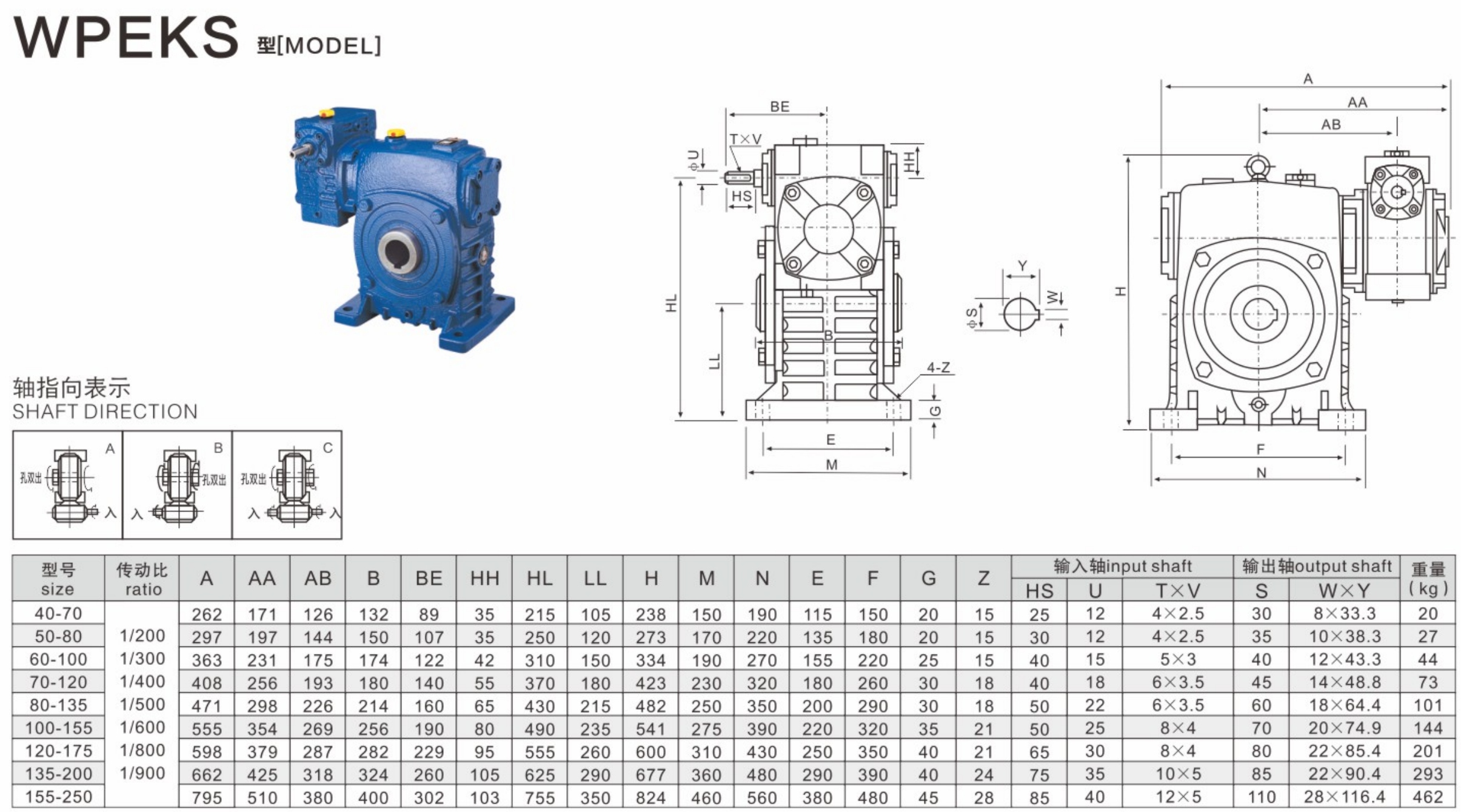

Product Name:	WPEKS Gearbox	Ratio:	200,300,400,500,600,800,900
Model No.	40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
