Worm Gear Reducer For Escalator Good Quality Bronze With Reduction Worm Gearbox WPWEK
Product Introduction
The key difference between WPWEK and WPWE models lies in their structural design and installation flexibility. WPWEK is a two-stage universal reducer with a box shaped housing that emphasizes adaptability, allowing for multi-directional installation without the need for a base plate; And WPWE is usually a two-stage standard reducer, usually used in conjunction with the base plate for fixed installation. The core components of both are similar, such as tin bronze worm gears and hardened steel worm gears, but WPWEK's universal design provides greater flexibility in narrow spaces and complex mechanical layouts. In addition, the WPWEK series supports combinations of up to three reducers to achieve extremely high reduction ratios, making it more suitable for heavy-duty applications compared to more standard WPWE configurations.
|
Product Name: |
WPWEK Gearbox |
Ratio: |
200,300,400,500,600,800,900 |
|
Model No. |
40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

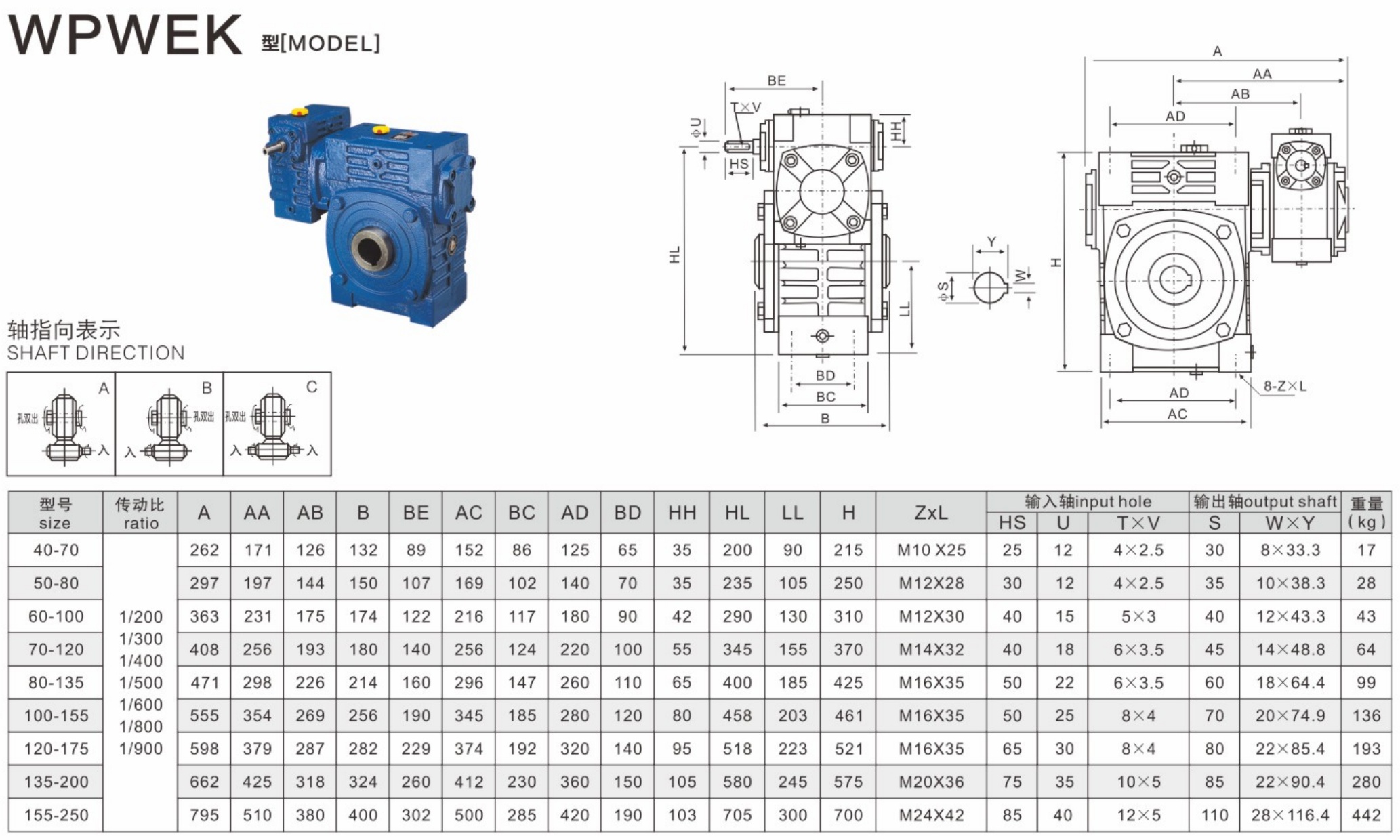

Product Details
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
