Worm Reducer Copper Alloy Gear For Food Machinery WPDS Worm Small Gearbox
Product Introduction
It inherits the compact and lightweight design of the WP series, and the newly added input flange allows the motor to be directly installed on the reducer side. This eliminates the need for additional transmission components such as couplings, chains, or sprockets, saving valuable installation space and shortening assembly time, significantly reducing user costs.
The input power range of WPDS worm gear reducer is 0.18kW to 15kW, and it maintains its high performance: the sturdy housing (in accordance with the strict standards of WP series) ensures stable operation, while its optimized internal structure provides a long service life and strong load-bearing capacity. It is suitable for metallurgy, plastics, and lifting equipment, providing efficient and space saving transmission solutions for industrial equipment.
|
Product Name: |
WPDS Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

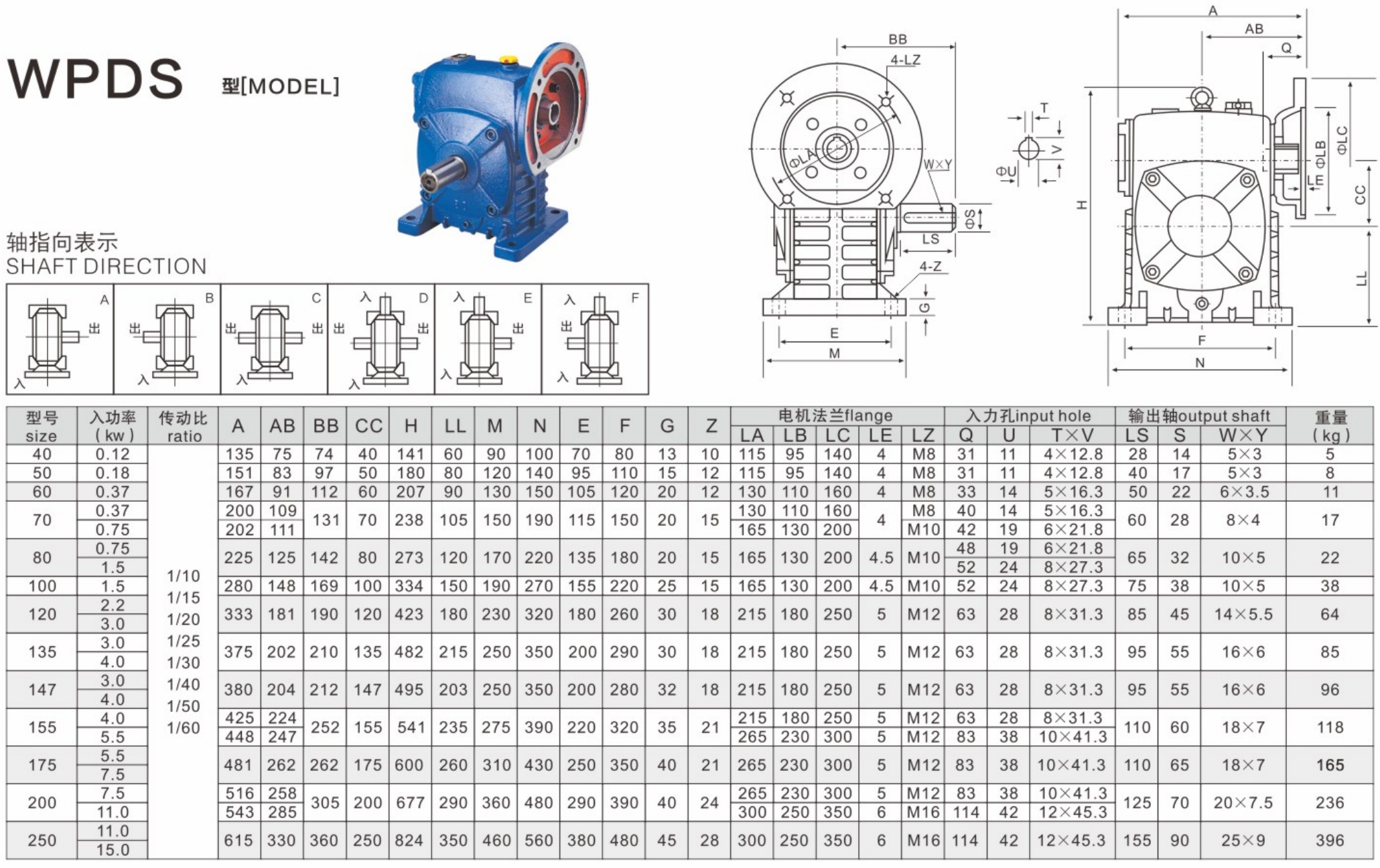

Product Details

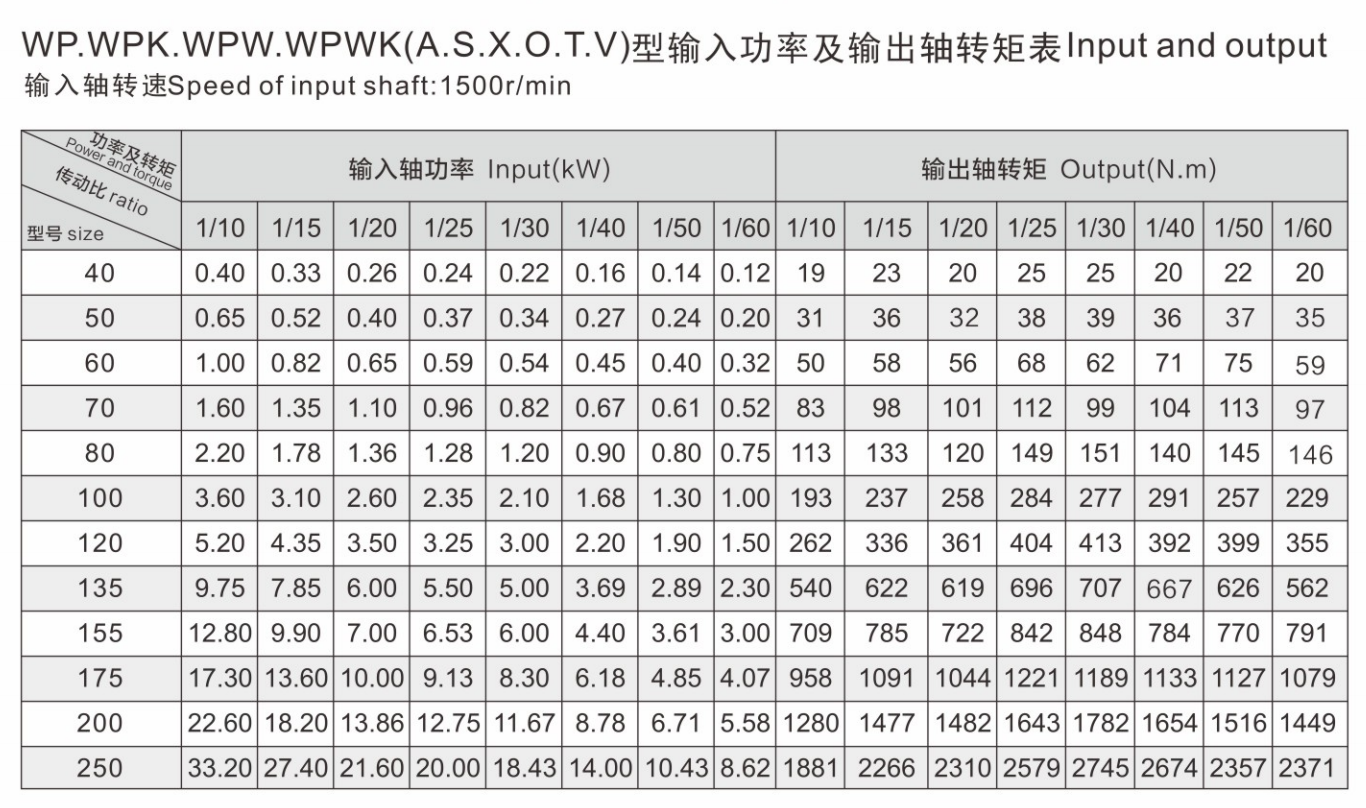

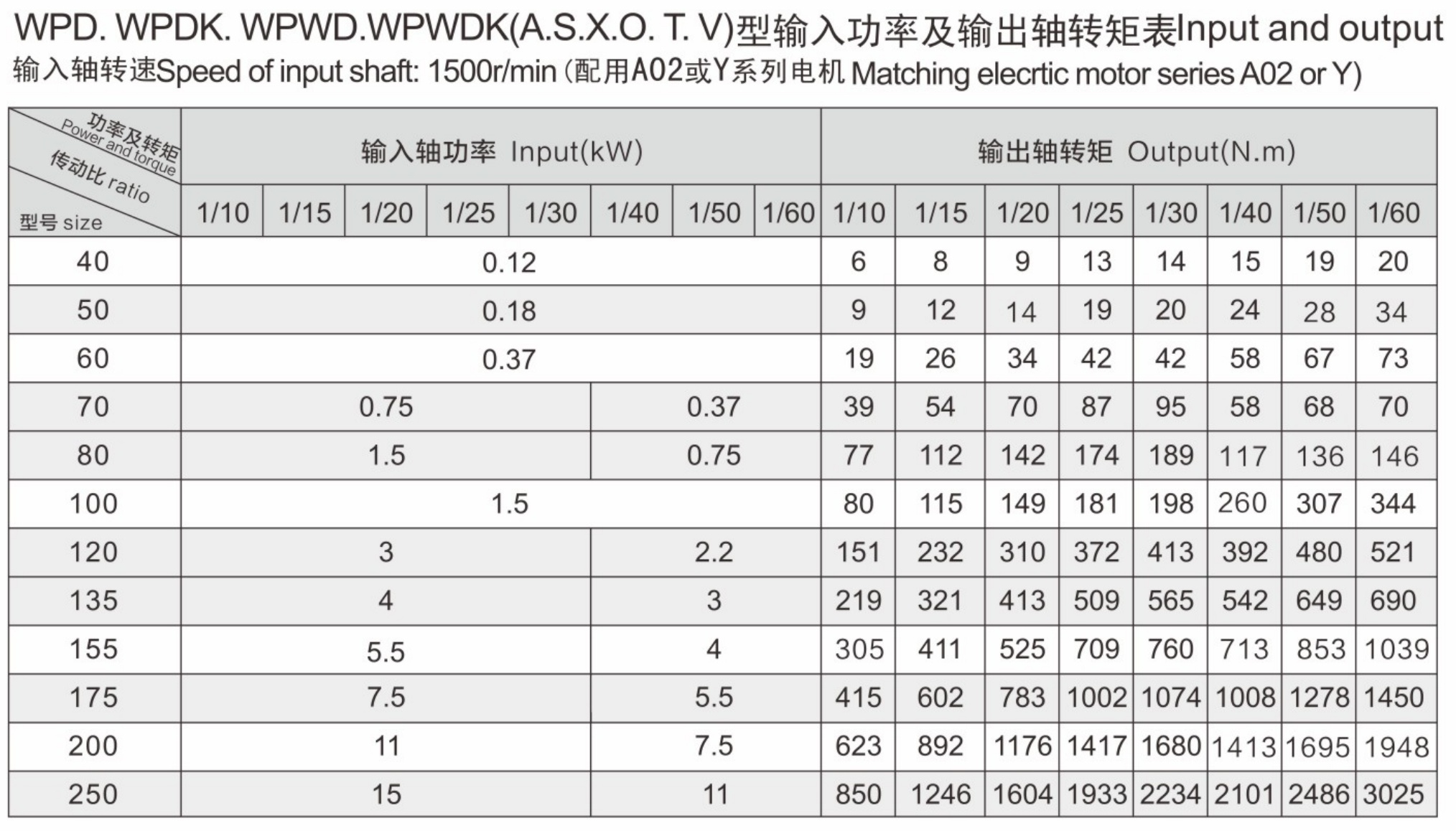

Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
