Worm Pulley Reducer Speed Reducer For Metallurgy Steel Plant WPX

Short Description:

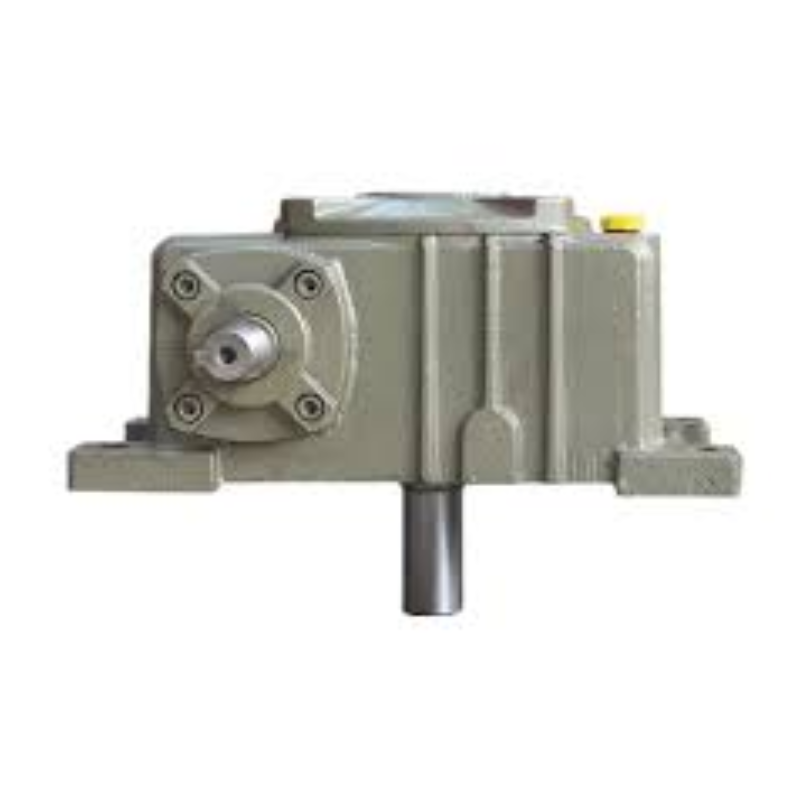

As a layout adaptive product of Jiahuang WP series, WPX worm gear box is designed to solve the installation problem of limited space. Its core advantage is that compared with traditional horizontal WP models, its output shaft direction is opposite, which is tailor-made for equipment that requires non-standard power output direction.

Input power: 0.12~33.2kW
Size: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 250
Ratio: 10, 15, 20, 25, 30, 40, 50, 60
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

It retains the proven durability of the WP series: the shell is made of thickened hard cast iron, ensuring strong impact resistance and structural stability, and can withstand harsh industrial environments (such as dusty mines or damp textile workshops). Its enhanced sealing design can also prevent oil leakage and dust from entering, ensuring long-term reliable operation and minimizing maintenance.

The reverse output shaft is its main advantage: unlike standard horizontal WP models that use forward output, WPX can adjust the output shaft in the opposite direction, so there is no need for additional transmission adapters when paired with machinery that requires backward or lateral bias power input. It also offers flexible input options (solid shaft/hollow hole) to match various motors, while internal components - tin bronze worm gear (wear-resistant) and heat-treated 45 # steel worm gear (high load capacity) - provide smooth, low-noise performance.

WPX is widely used in compact packaging lines, side drive conveyors, and small agricultural machinery. It perfectly combines the durability and layout flexibility of the WP series, providing reliable transmission solutions for enterprises that need customized power output directions.

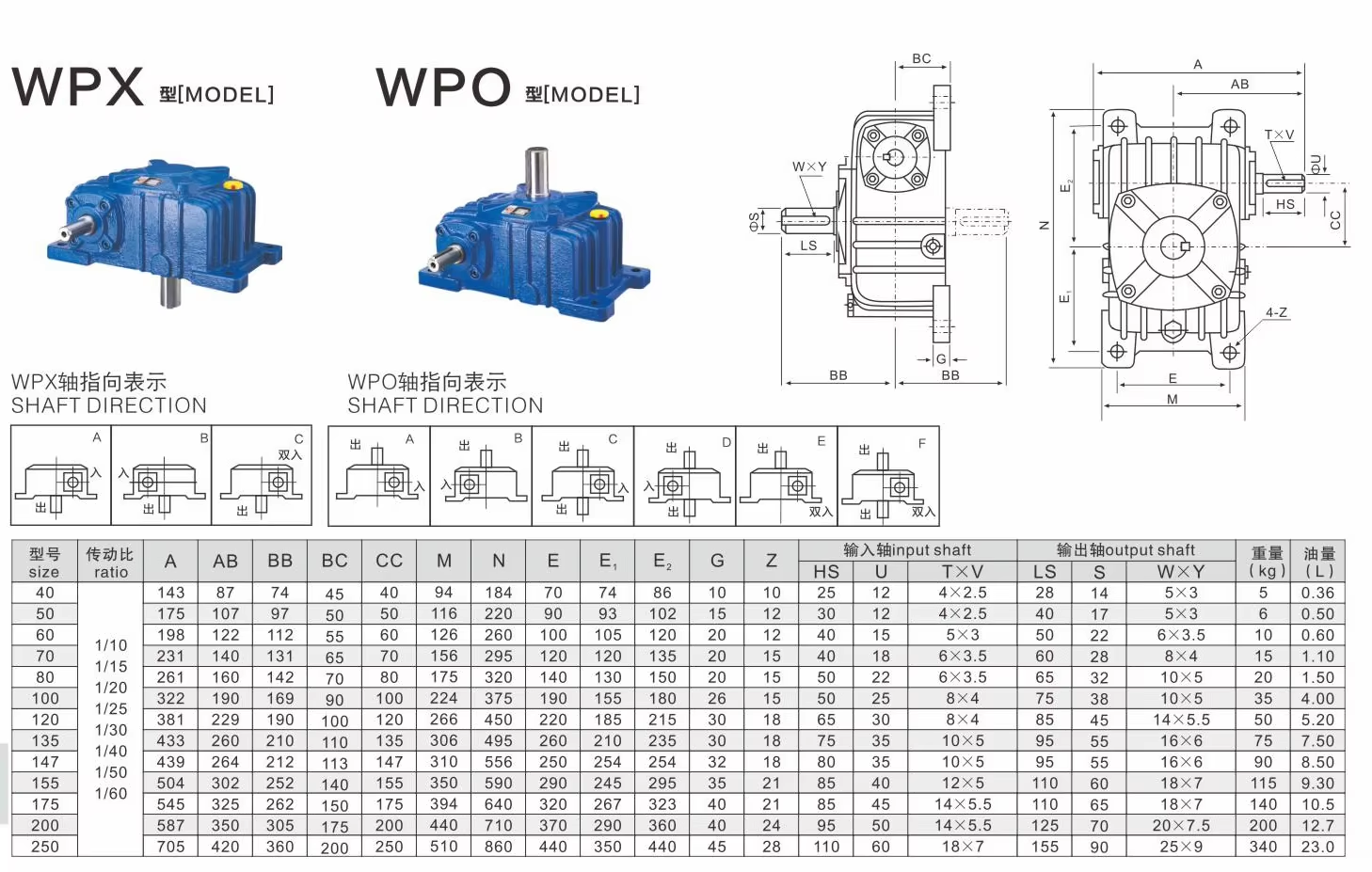

Product Name:	WPX Gearbox	Ratio:	10,15,20,25,30,40,50,60
Model No.	40,50,60,70,80,100,120,135,155,175,200,250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
