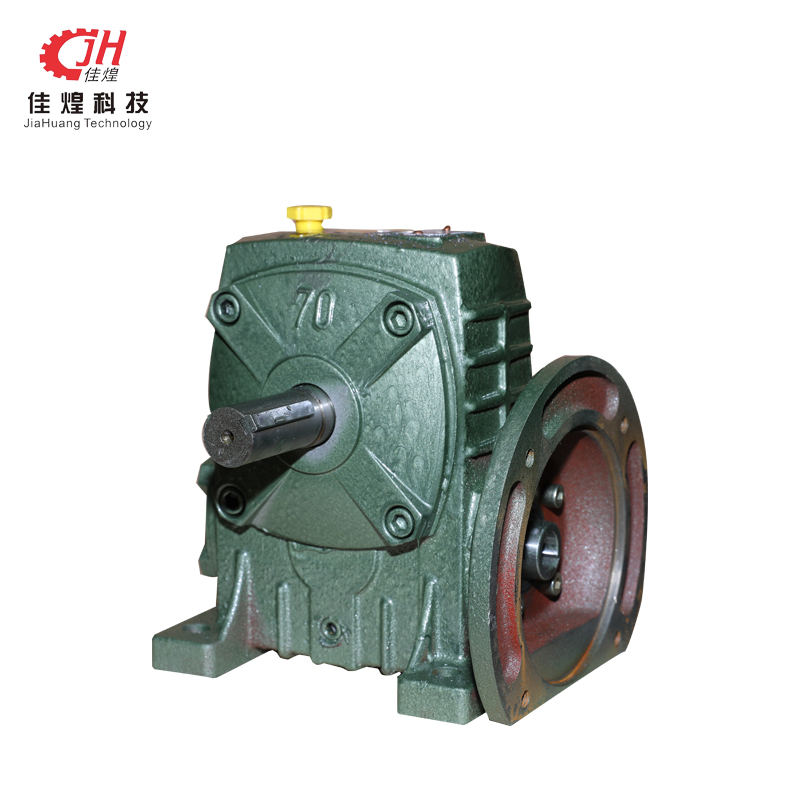

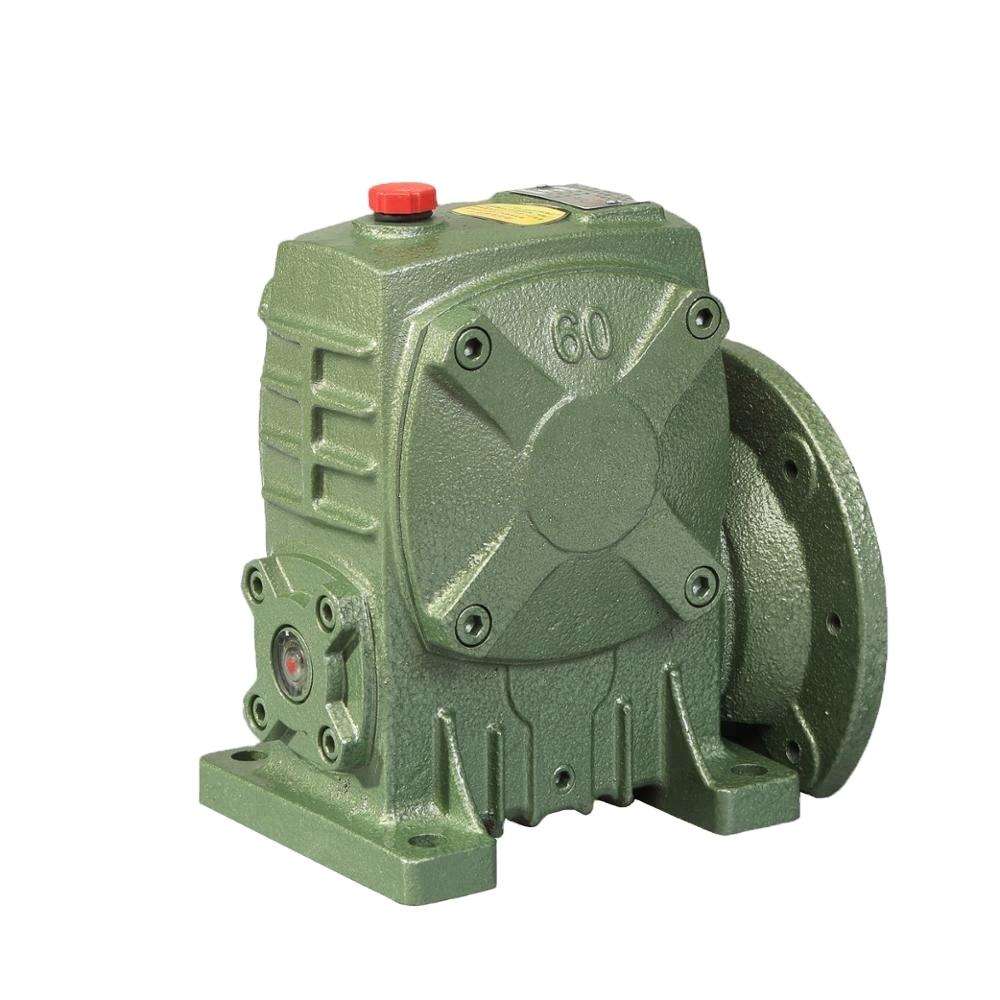

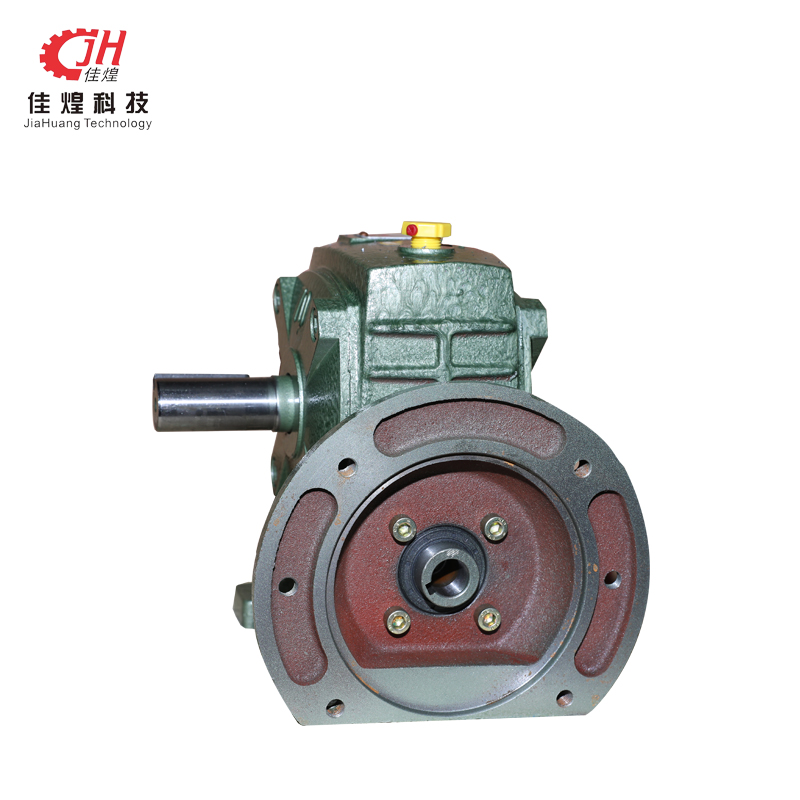

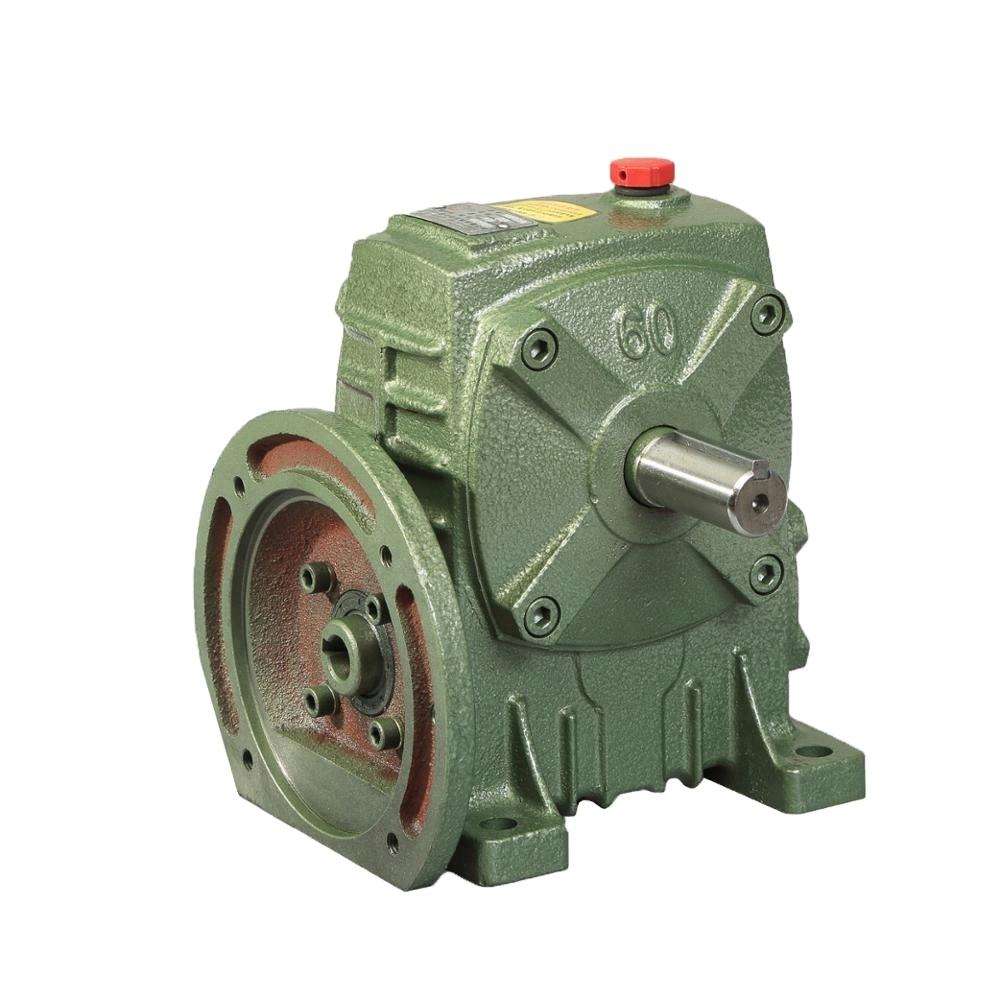

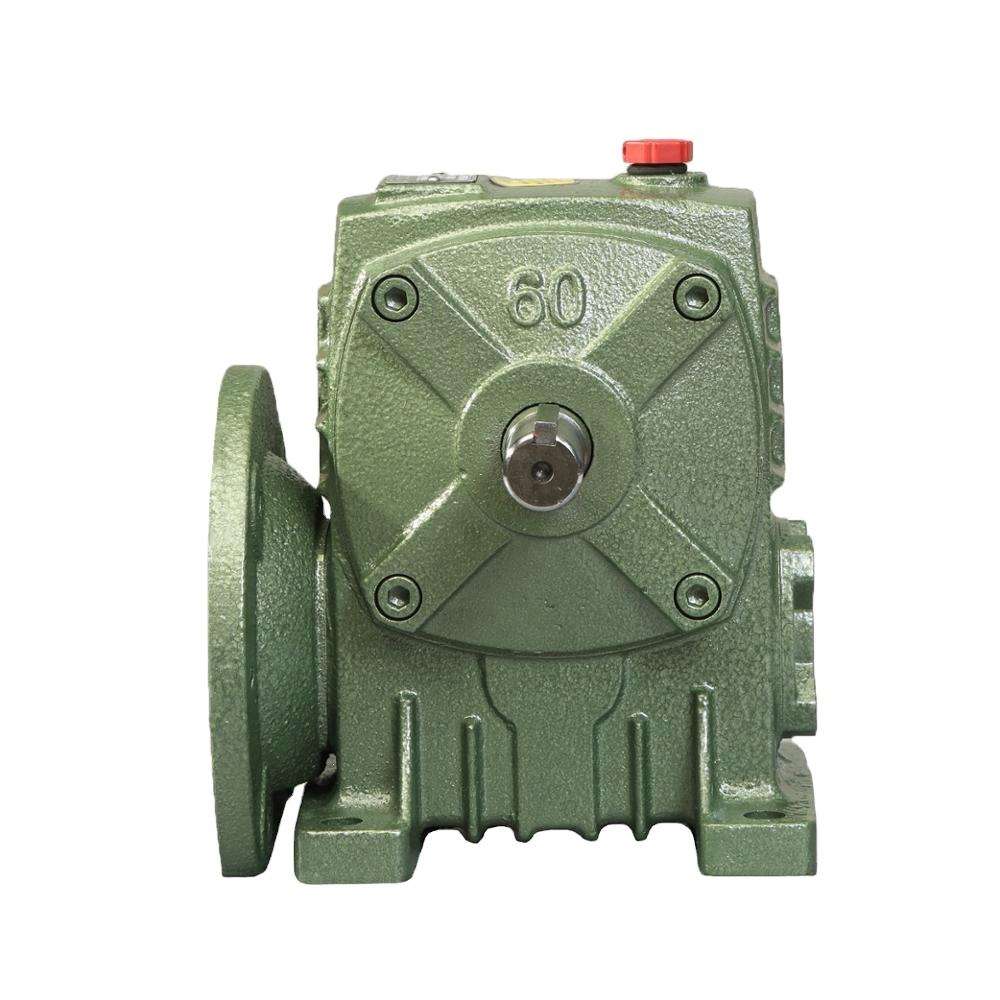

Speed Reducer Gearbox Right Angle Drive For Material Handling WPDA Worm Compact Reducer
Product Introduction
Its core advantage lies in the one-piece cast iron shell - this shell can enhance structural rigidity, reduce vibration during operation, and enhance resistance to external impacts. This reducer supports two configurations: foot installation and flange installation, making it easy to match different workshop layouts. Its IP54 level sealing structure effectively blocks dust and moisture, extending its service life in general industrial environments.
WPDA reducers are highly suitable for integration with Jiahuang motors or existing equipment, especially for driving small conveyors, food processing mixers, textile calenders, and packaging machinery. It combines compact size (saving installation space) and reliable load-bearing capacity, making it a practical choice for industries such as light industry manufacturing, food and beverage, and textile processing that require efficient and economical horizontal transmission solutions.
|
Product Name: |
WPS Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

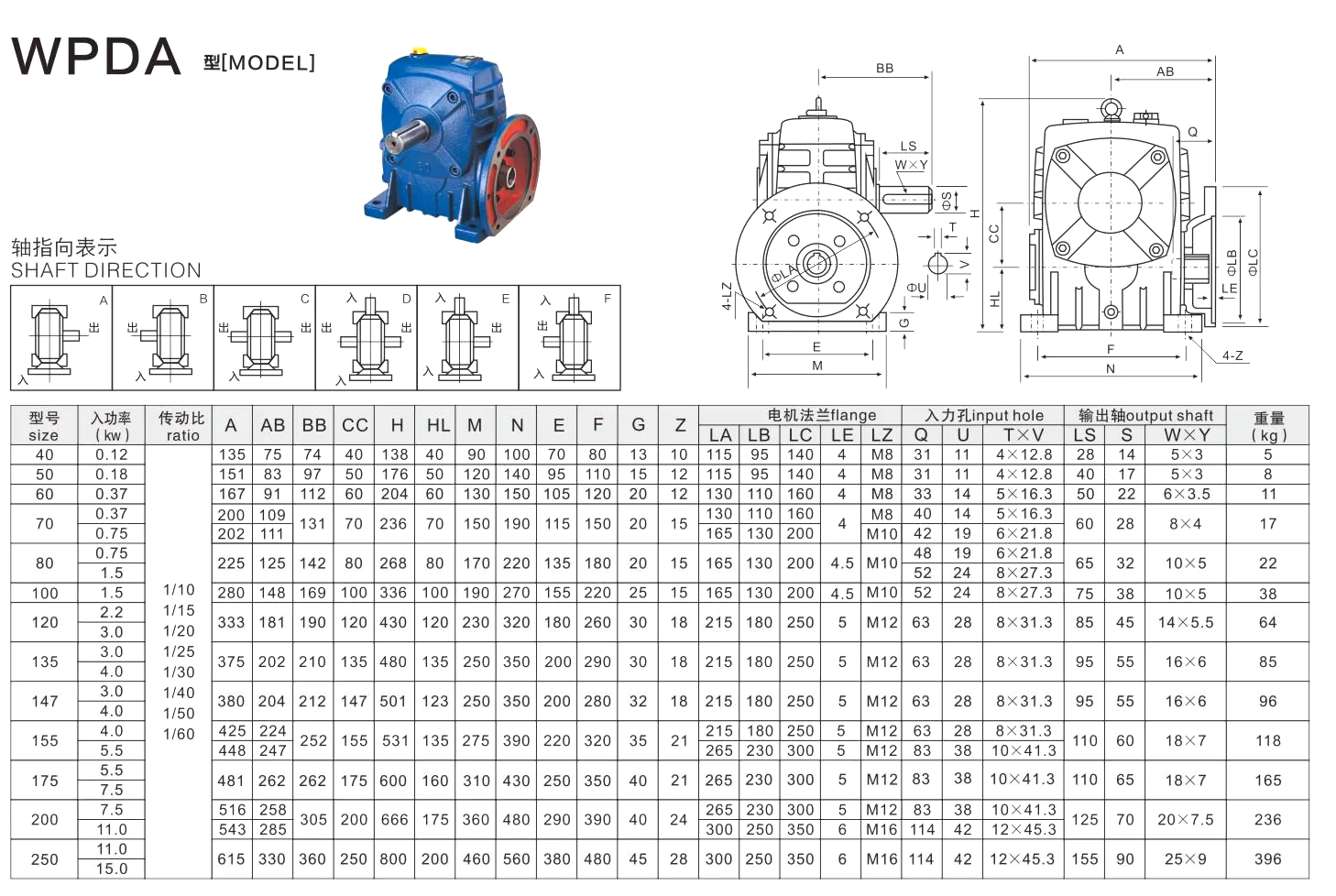

Product Details

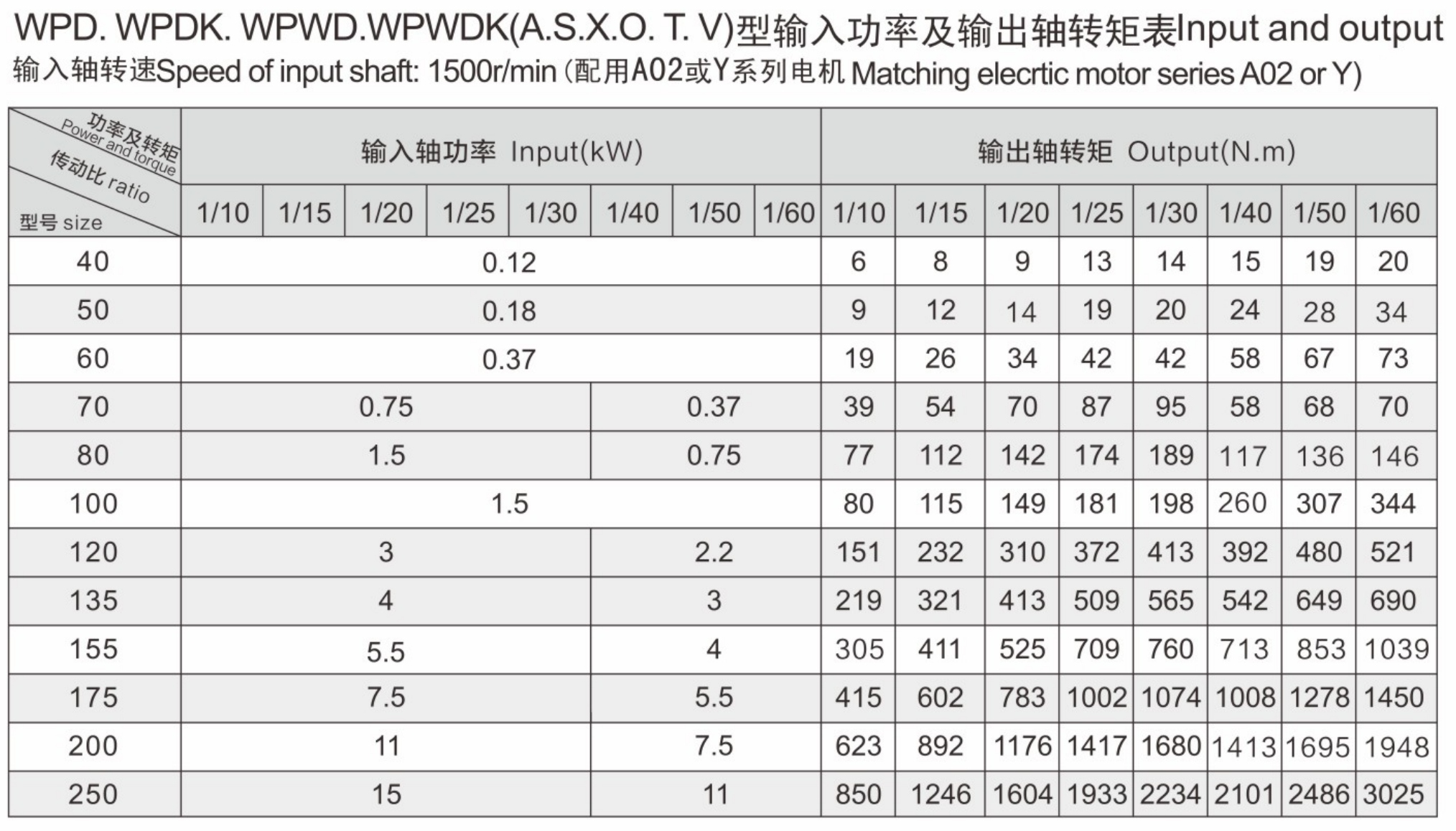

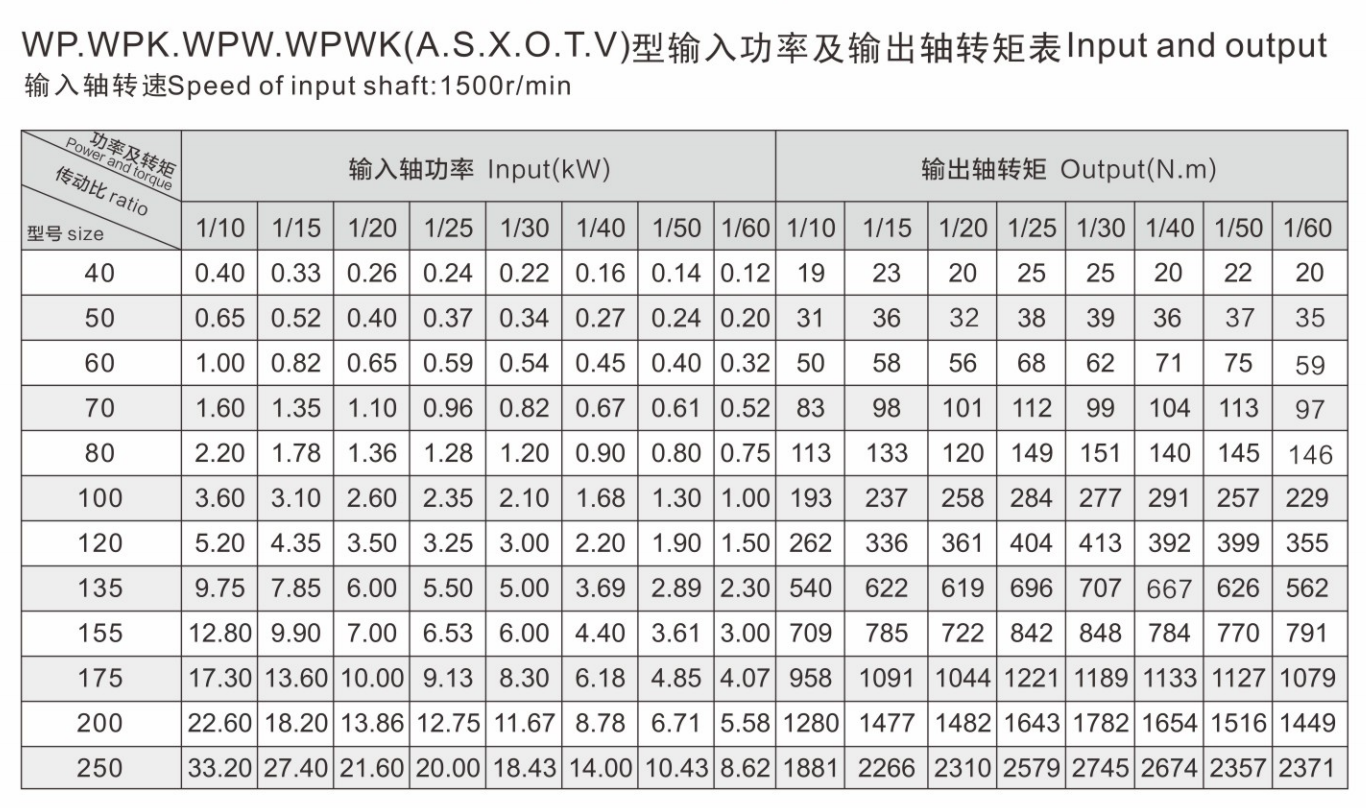

Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
