Transmission Speed Pulley WP OEM Replacement Reducer Brands WPWA Worm Efficient Reducer
Product Introduction
Its rack size ranges from 40mm to 250mm, with a reduction ratio of 10:1 to 60:1, supporting multiple installation methods and providing reliable performance in harsh environments. Its self-locking function and low-noise design make it an ideal choice for applications that require precise motion control and operational safety.
Jiahuang WPWA reducers are widely used in industries such as plastics, metallurgy, mining, and construction, and perform well in driving conveyors, mixers, elevators, and other heavy machinery. Its efficient heat dissipation performance, compatibility with IEC standard motors, and extremely low maintenance requirements can improve production efficiency and service life. This reducer emphasizes durability and adaptability, aiming to effectively reduce speed and increase torque, ensuring optimal performance in different industrial environments.
|
Product Name: |
WPWA Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details

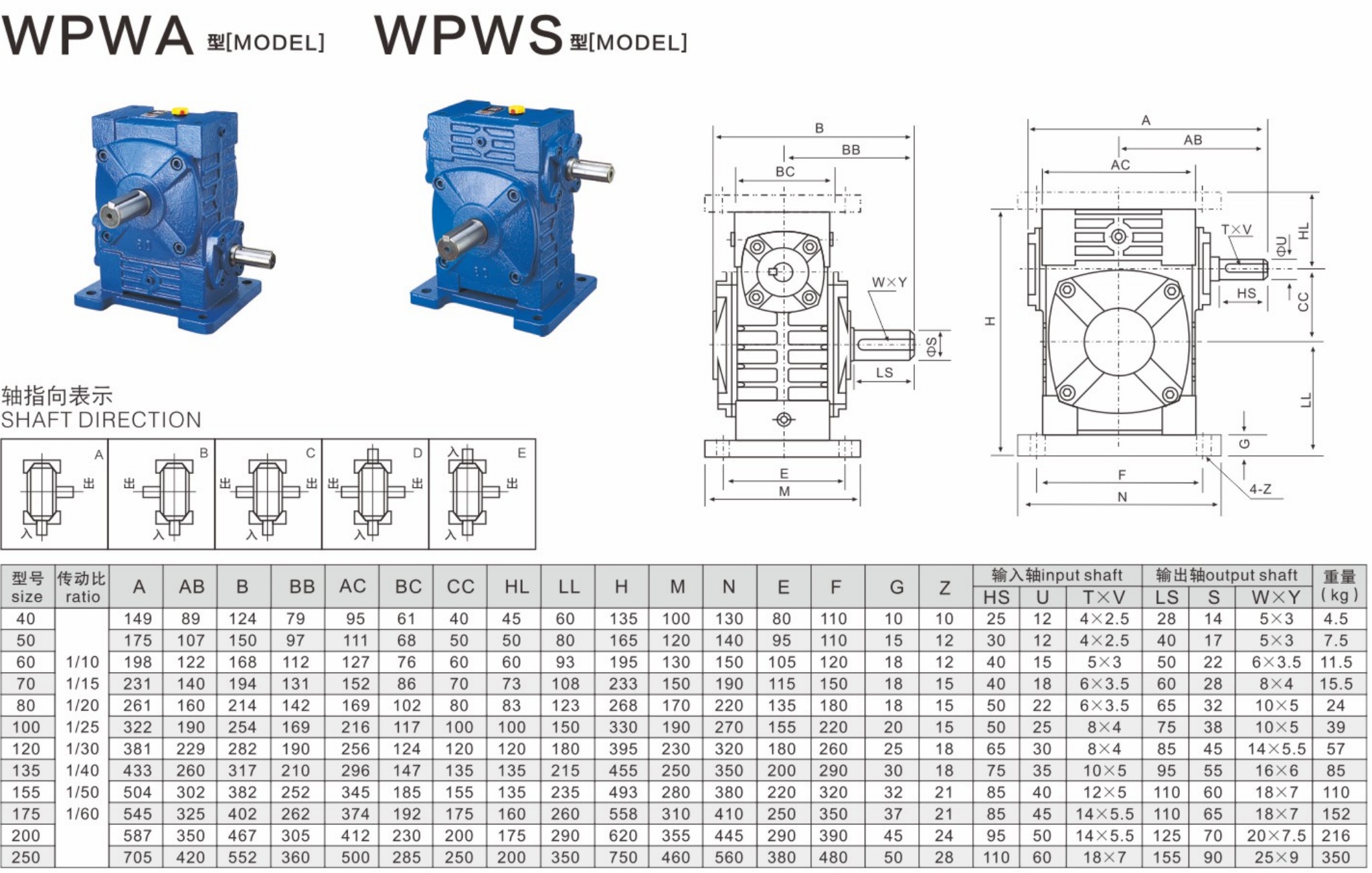

Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
