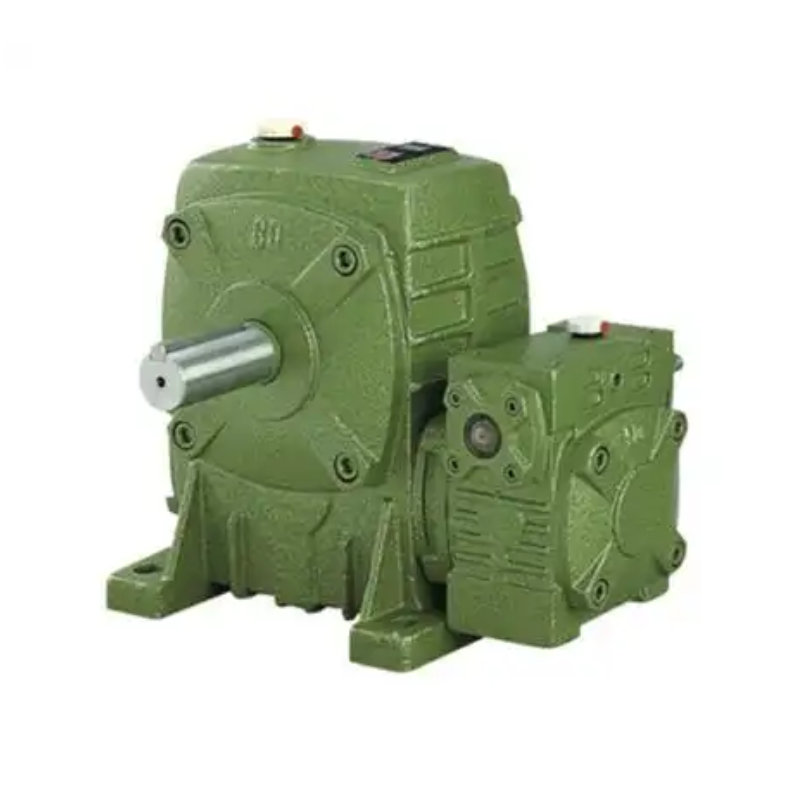

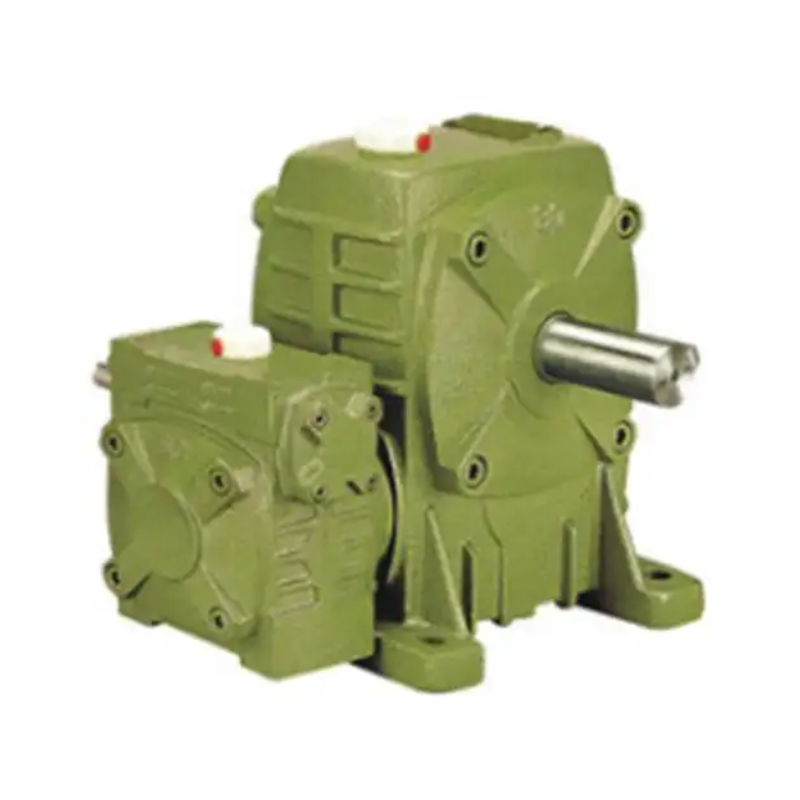

Worm Gear Reducer Small Worm Gearbox For Water Treatment Plant WPEA
Product Introduction
The key advantage of WPEA lies in its optimized vertical axis layout. Unlike larger vertical WP models, WPEA adopts a streamlined input-output shaft arrangement (with the input shaft at the bottom and the output shaft at the top), simplifying integration with elevated drive equipment such as small conveyors or textile rollers. Internally, it adopts a combination of tin bronze worm gear known for low friction and wear resistance, and 45 # steel worm gear that has been heat-treated, resulting in smooth transmission, low noise, and longer service life.
Flexible application, easy motor pairing can be achieved through standard couplings, suitable for various application scenarios from plastic molding auxiliary equipment to food processing conveyors. WPEA combines the iconic reliability and space saving efficiency of Jiahuang, making it the preferred choice for enterprises seeking customized vertical transmission solutions for light to medium workloads.
|
Product Name: |
WPEA Gearbox |
Ratio: |
200,300,400,500,600,800,900 |
|
Model No. |
40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

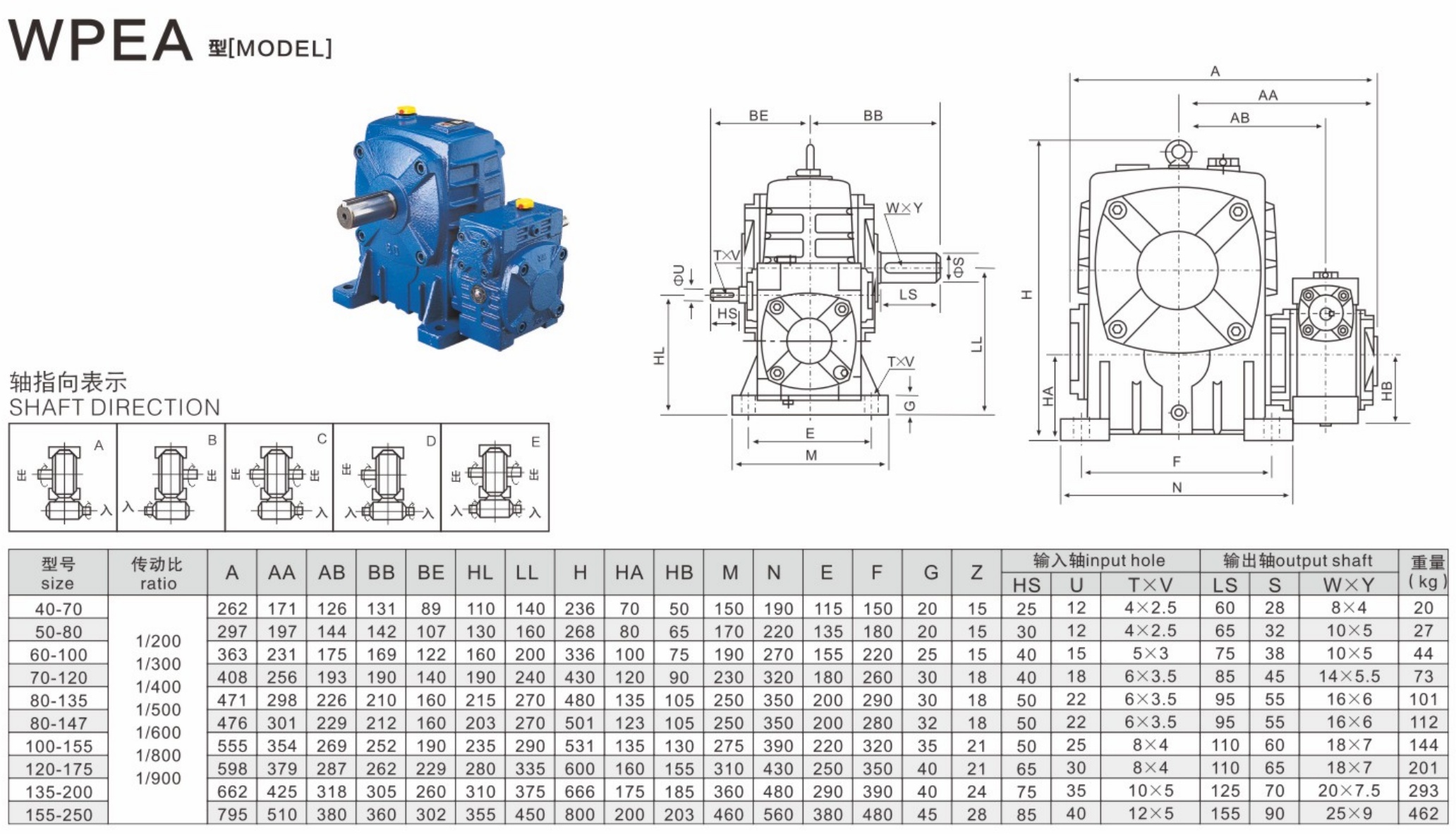

Product Details
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
