Reduction Worm Gearbox WPWEDK WP Double Stage Reducer Ratio 200 300 400 500 600 800 900
Product Introduction
The main difference between WPWEDK and WPWEK lies in their specific model names and possible structural configurations in the general dual level category. Both belong to the worm gear reducer family and share many common core characteristics, such as the use of high-quality materials and the ability to provide high reduction ratios. Specific differences, such as potential variations in input/output shaft layout, housing design, or specific sealing options, will be detailed in Jiahuang's specific technical specifications for each model, which are built upon the universal WP series framework.
|
Product Name: |
WPWEDK Gearbox |
Ratio: |
200,300,400,500,600,800,900 |
|
Model No. |
40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

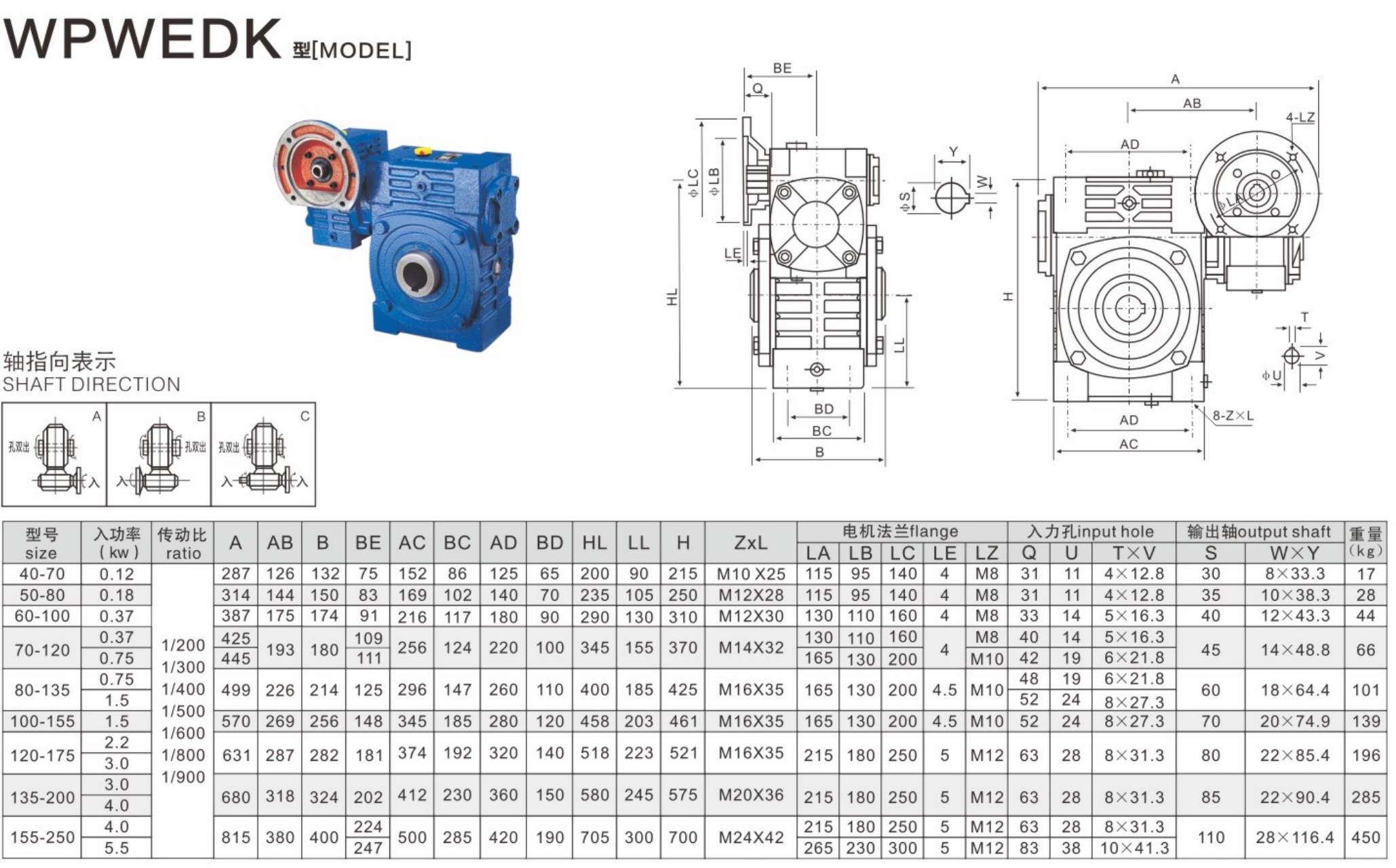

Product Details
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
