2Reducer Wp Speed Transmission With Input Flange For Motor Connection WPWED

Short Description:

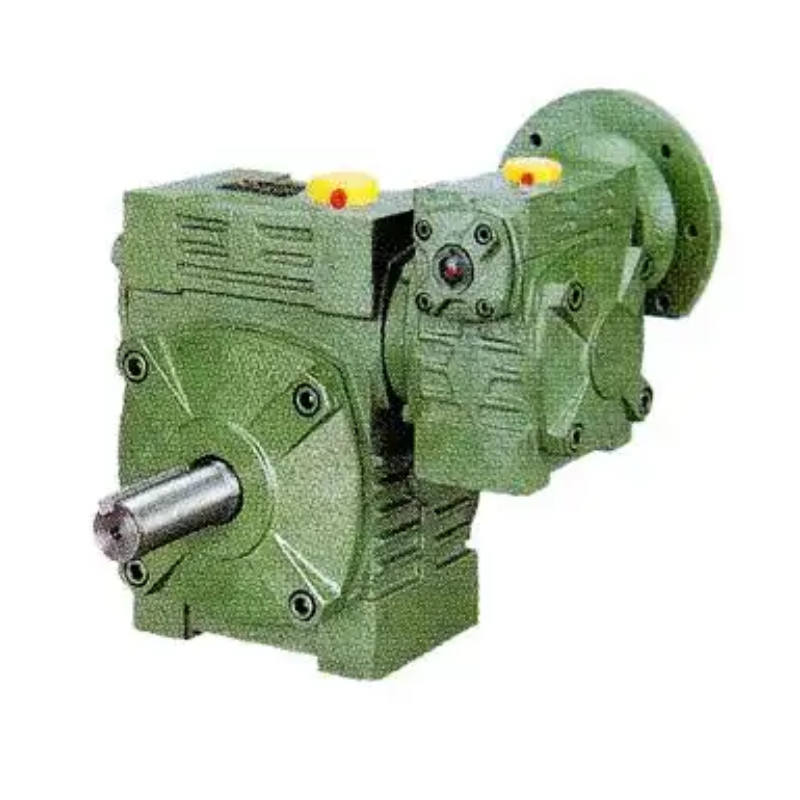

The Jiahuang WPWED series reducer is a sturdy and durable two-stage worm gear reducer designed specifically for harsh industrial applications. This series of reducers adopts a cast iron shell, which has stronger rigidity, compact structure, and extremely high transmission ratio, usually up to 200:1 to 900:1. Its design has a wide range of applications, using a universal housing, providing multiple installation surfaces and bolt holes, and flexible installation.

Input power: 0.12~33.2kW
Size: 40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250
Ratio: 200,300,400,500,600,800,900
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

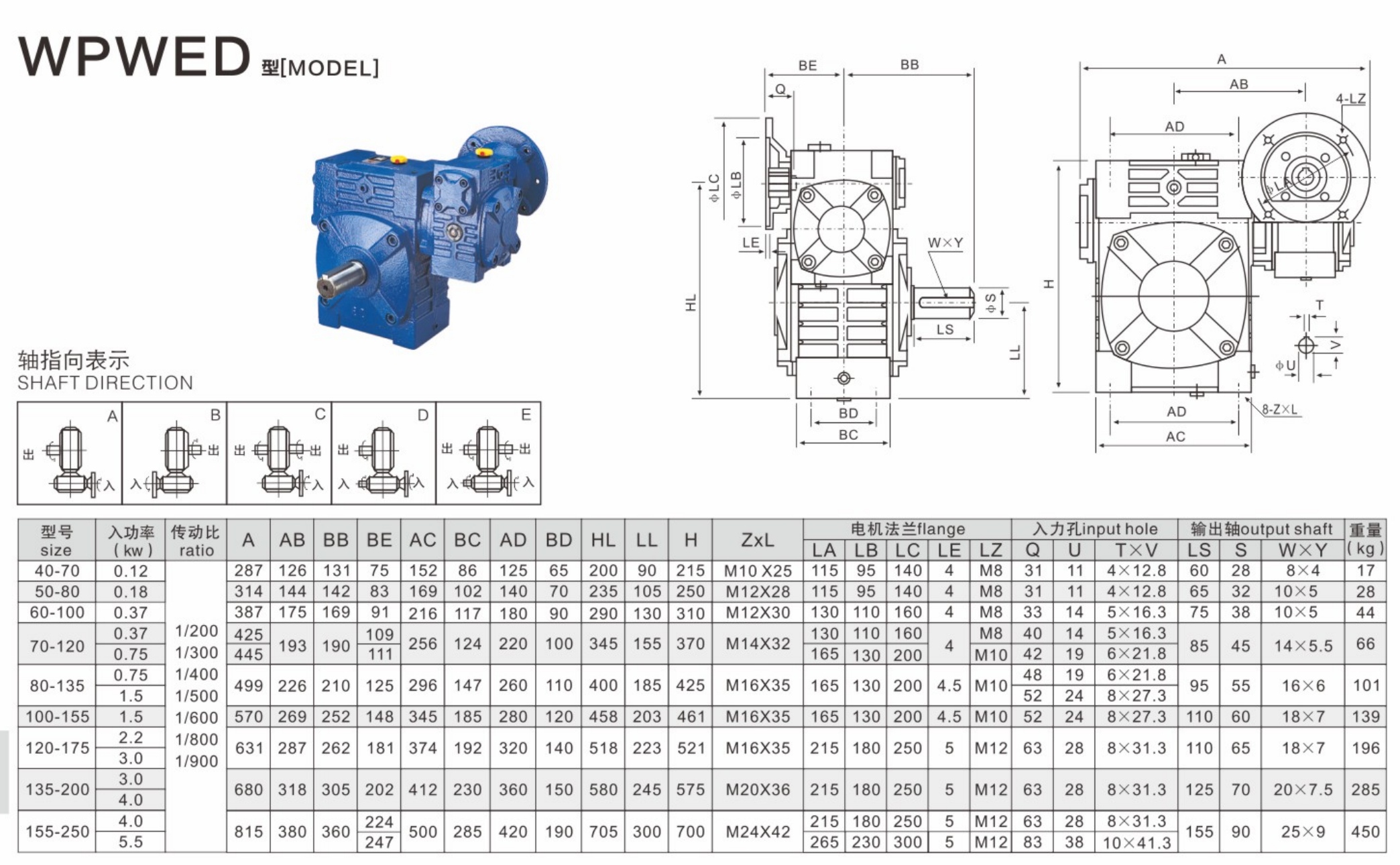

Product Introduction

The main difference between the WPWED series and the WPWE series lies in their design structure and specific model naming. Both are two-stage reducers, but the WPWED model specifically refers to a design variant within the WPWEDKO/WPWEDK/WPWED series framework. The 'D' in WPWED typically represents specific design features or output options, such as output shaft type or installation configuration, which may differ from standard WPWE models. Essentially, WPWED is a specific subtype or configuration under the two-stage universal worm gear reducer series, including the WPWE series, that can provide customized solutions for specific torque and installation requirements.

Product Name:	WPWED Gearbox	Ratio:	200,300,400,500,600,800,900
Model No.	40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
