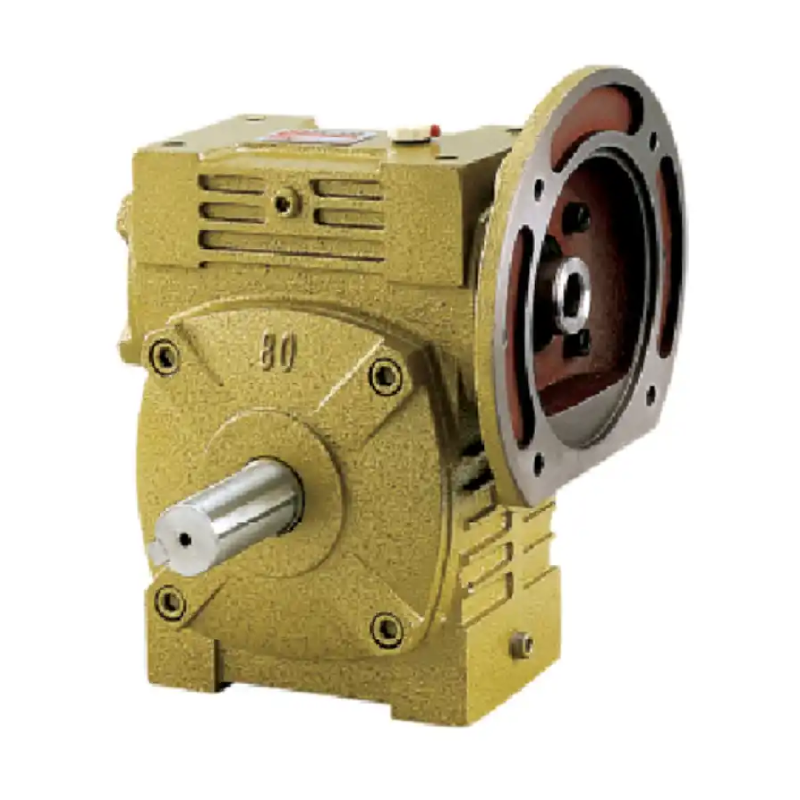

Reduction Worm Gearbox WP Universal Mounting Gearbox WPWD
Product Introduction
Its compact single-stage design can provide a larger transmission ratio (such as 10-60) and typically has self-locking function, without the need for additional braking systems in many applications.
The main difference between WPWD and WPW reducers lies in their structural design and configuration codes. Although both belong to the WP series and have core advantages such as high torque output and compactness, the "D" in WPWD may indicate specific design changes, such as different installation options (e.g. base installation versus flange installation), input/output shaft arrangement (shaft position up/down), or the possibility of dual input/output shafts compared to WPW models. Ultimately, both are renowned for their mechanical adaptability in fields such as plastics, beverages, and construction.
|
Product Name: |
WPWD Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

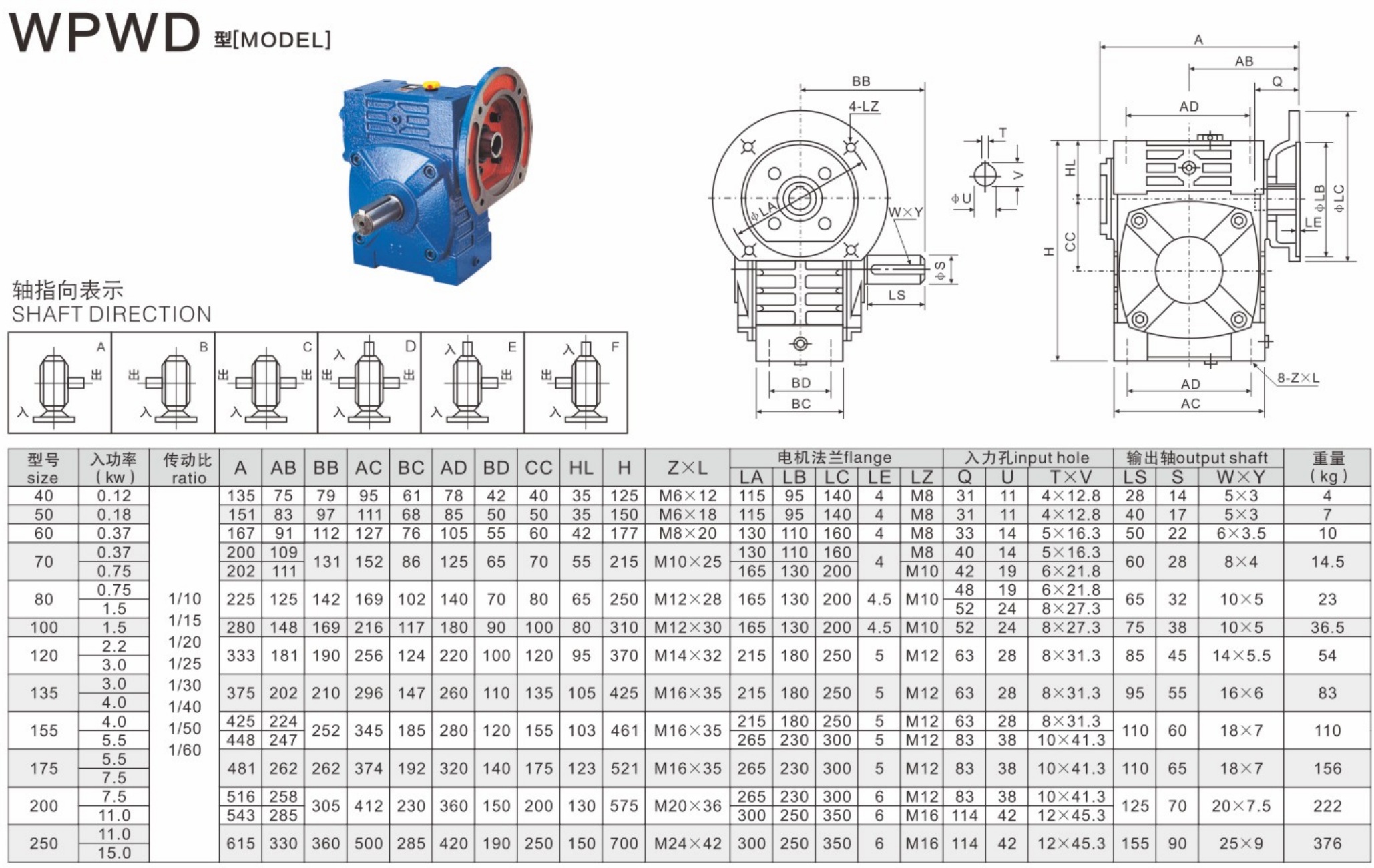

Product Details
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
