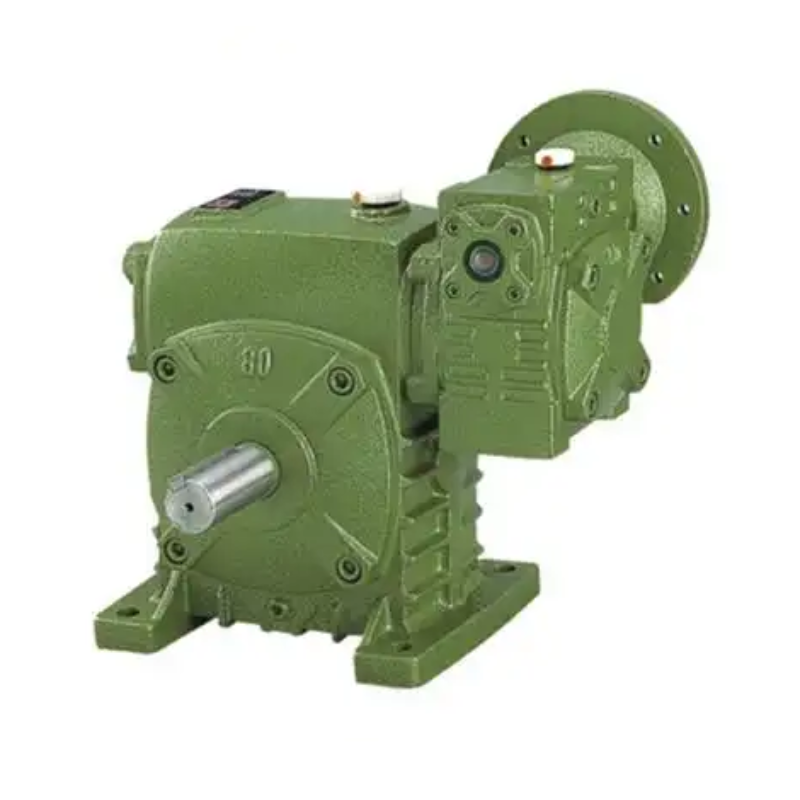

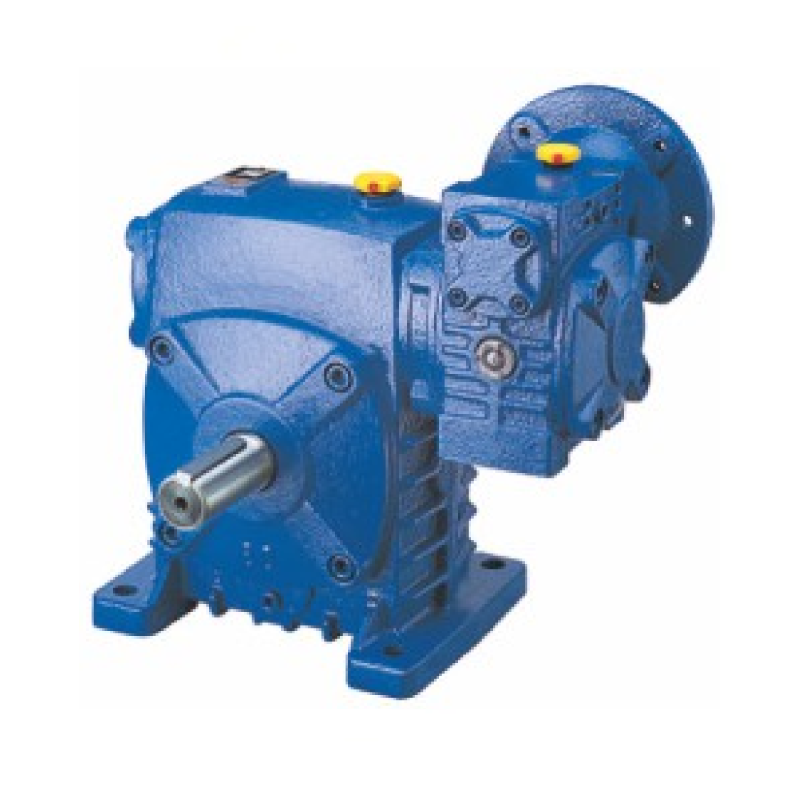

Reduction Gearbox Wp Worm Reducer For Beverage Production Line WPEDS

Short Description:

The main difference between WPEDS worm gear box and WPES is the integrated input flange, which is lacking in WPES. It retains the reverse vertical layout of WPES (input shaft on top, output shaft on bottom) to meet top mounted power requirements, while the flange design enables direct and stable motor installation without the need for additional couplings or adapters, simplifying assembly. Its thick cast iron shell and reliable sealing make it resistant to impact, oil leakage, and dust, making it suitable for harsh industrial environments.

• Input power: 0.12~33.2kW

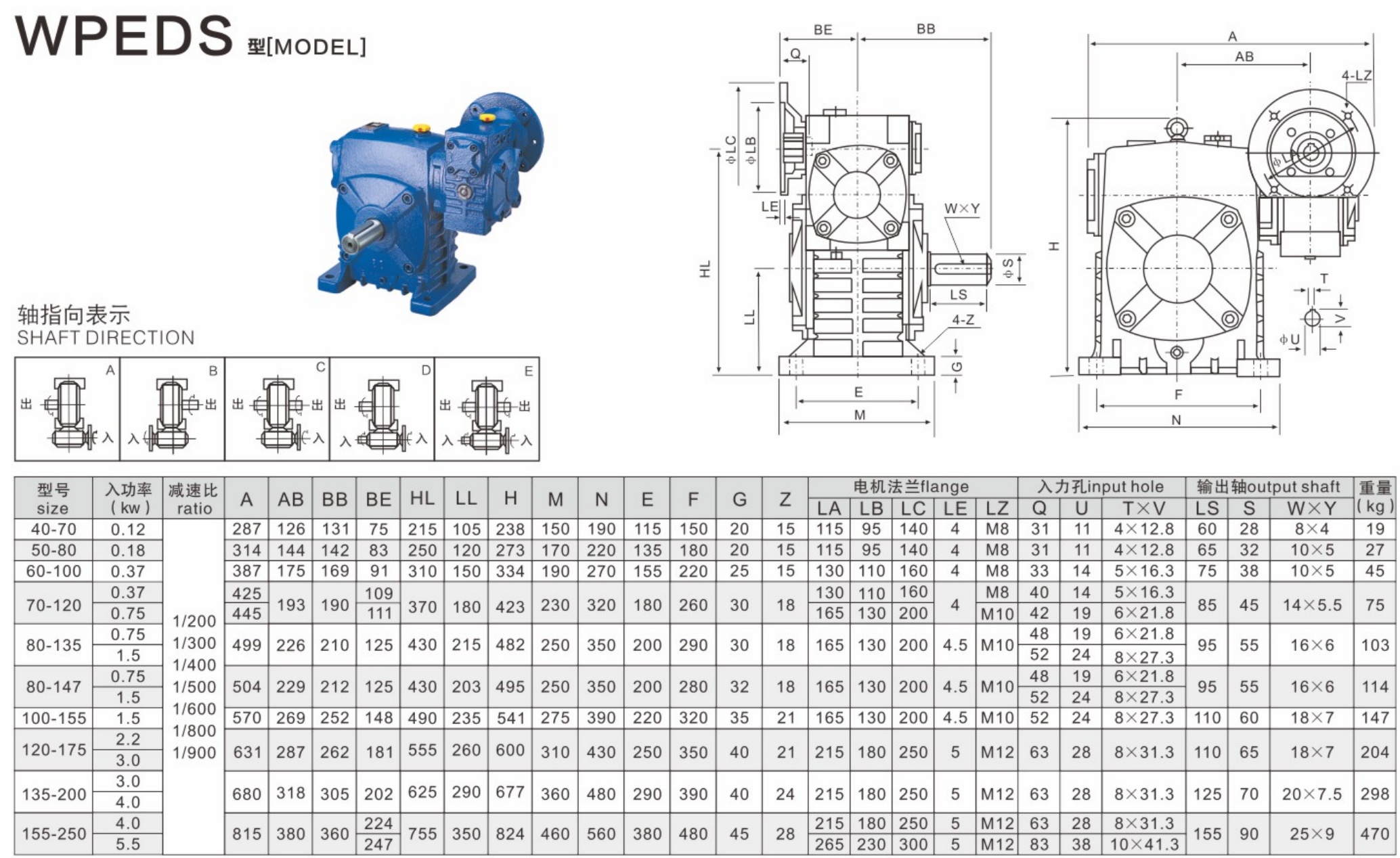

• Size: 40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250
• Ratio: 200,300,400,500,600,800,900
• Color: green, blue, yellow, etc
