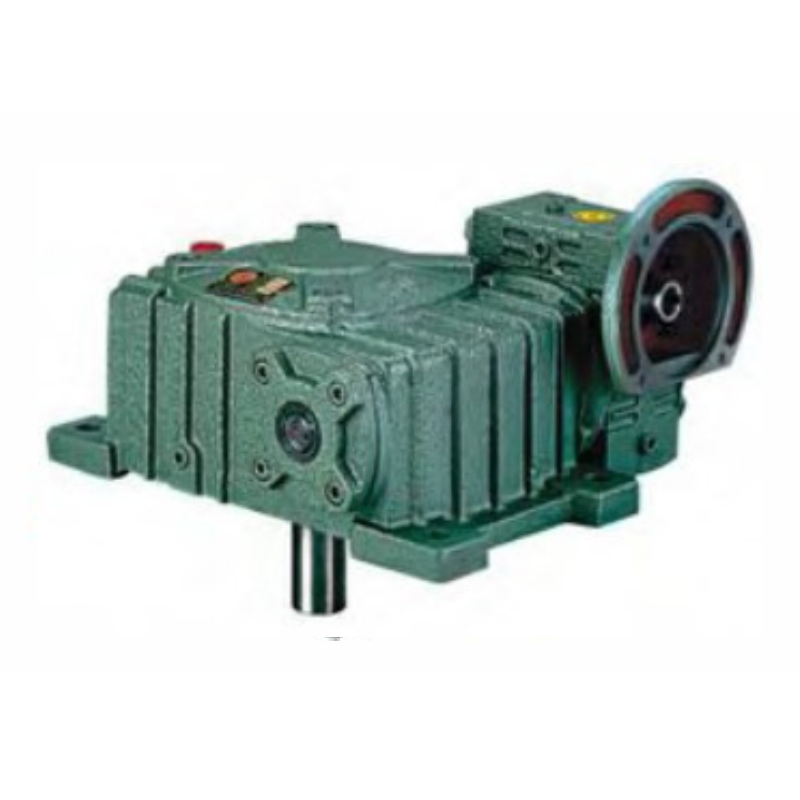

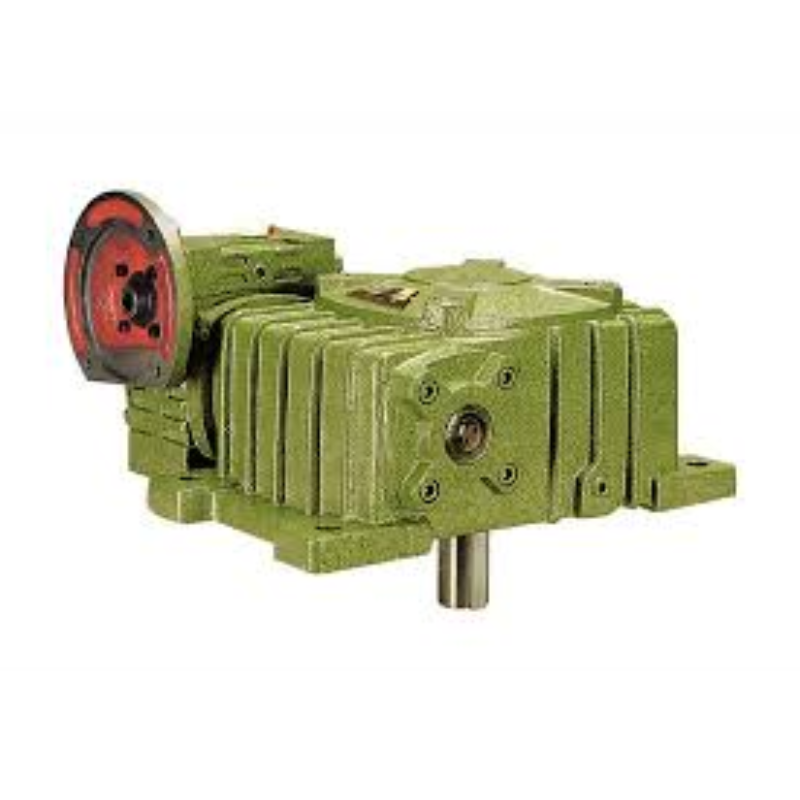

WP Speed Reducer With Reduction Worm Gearbox For Agricultural Machinery Usage WPEDX
Product Introduction
This reducer can operate smoothly at temperatures ranging from -40 ° C to 40 ° C, and can rotate in both directions. It can also be equipped with self-locking function to achieve a large reduction ratio. Its hardened steel worm gear and nickel copper worm gear ensure its wear resistance and long service life.
The main difference between WPEDX and WPEX lies in their design and application focus: WPEDX is a two-stage reducer that combines helical gears and worm gears, with a higher reduction ratio (up to 900:1) and larger torque capacity, making it very suitable for heavy machinery. In contrast, WPEX is a single-stage worm gear reducer with a simpler structure and lower reduction ratio (usually up to 60:1), suitable for lighter applications such as conveyors or packaging equipment. In addition, WPEDX typically offers modular options for flexible installation and integration, while WPEX focuses more on cost-effectiveness to meet basic deceleration needs.
|
Product Name: |
WPEDX Gearbox |
Ratio: |
200,300,400,500,600,800,900 |
|
Model No. |
40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

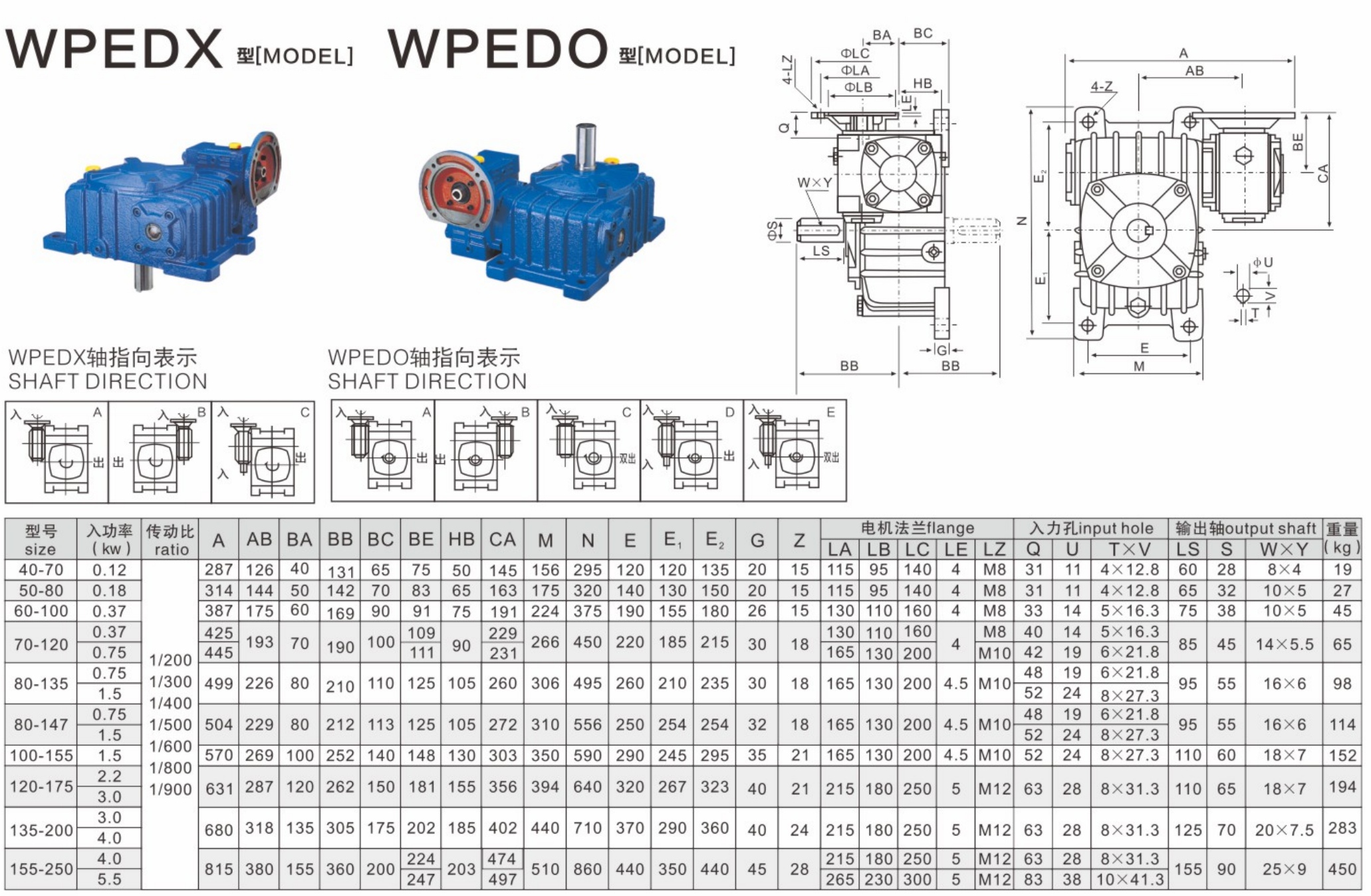

Product Details
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
