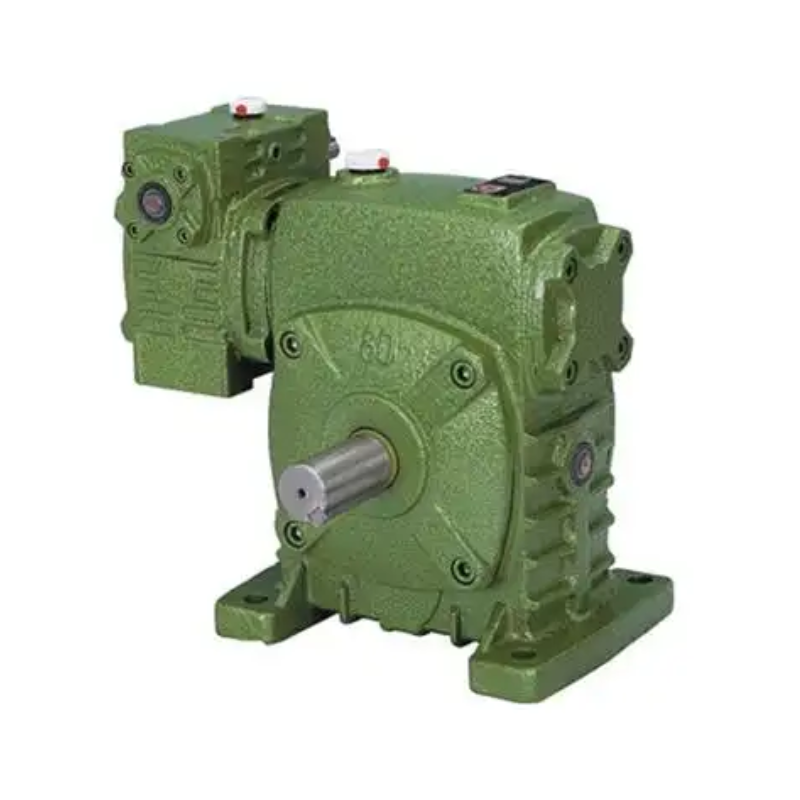

Speed Reducer For Wp Gear box Transmission WPES

Short Description:

The difference between WPES worm gear box and WPEA worm gear box lies in their reverse shaft layout: WPEA places the input shaft at the bottom, while WPES flips the input shaft to the top, tailor-made for equipment that requires elevated power input. It retains the thickened cast iron casing of the series, ensuring impact resistance and reliable sealing, preventing oil leakage and dust, and can also operate excellently in humid or dusty industrial environments.

Input power: 0.12~33.2kW
Size: 40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250
Ratio: 200,300,400,500,600,800,900
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

The WPES worm gear box is an ideal choice for small mixers, overhead conveyors, and textile machinery. It combines the durability of WPEA with a reverse layout, providing a flexible vertical transmission solution for unique installation needs.

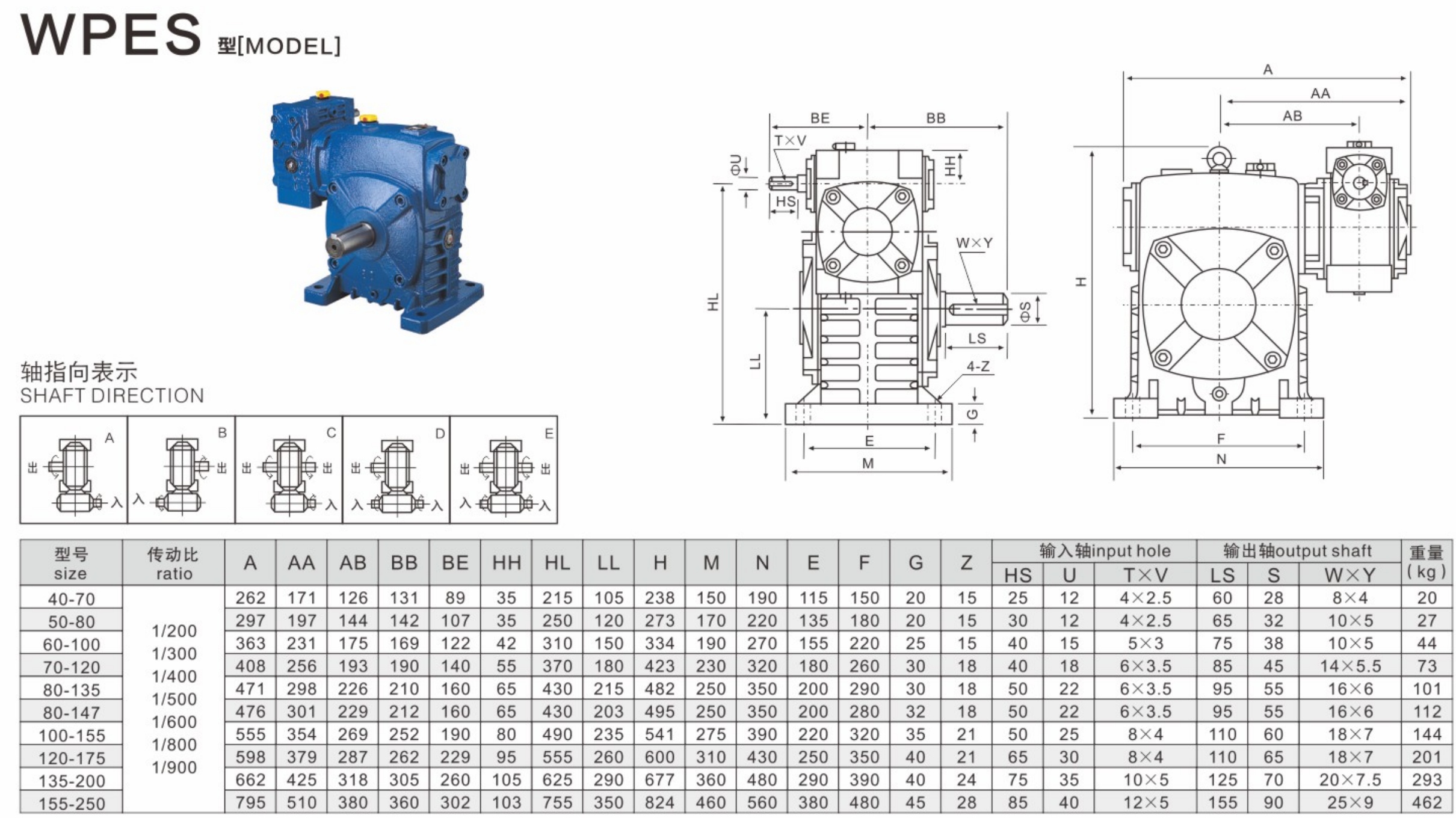

Product Name:	WPES Gearbox	Ratio:	200,300,400,500,600,800,900
Model No.	40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
