Reducer Gear Pulley WP Worm Combination Reducer Ultra High Ratio WPWDA

Short Description:

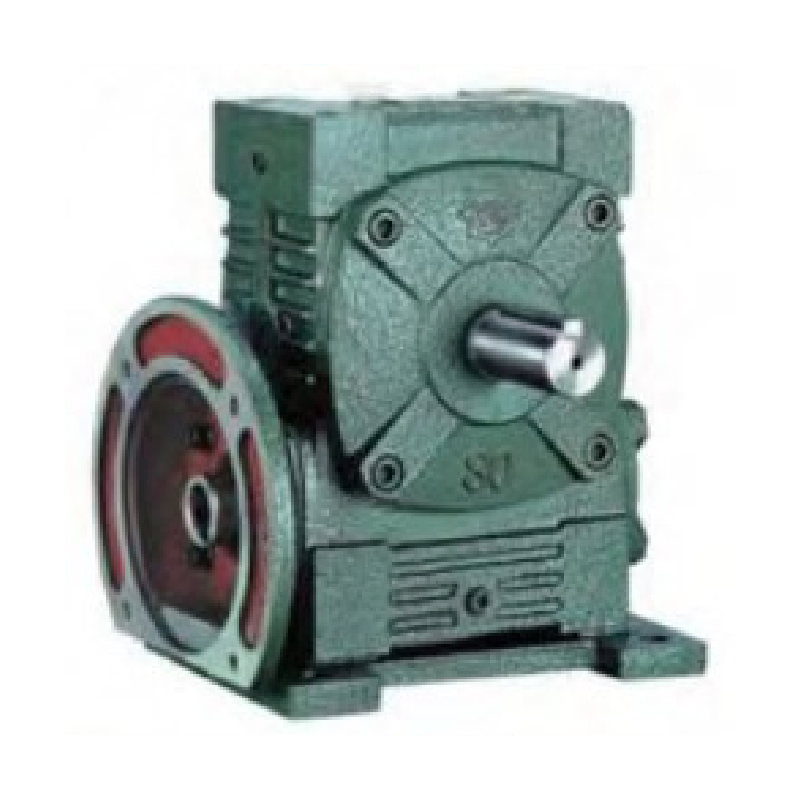

Jiahuang WPWDA worm gear reducer is a robust and efficient power transmission solution designed specifically for heavy-duty industrial applications. The reducer adopts a cast iron shell, which has excellent durability and rigidity, and can operate in harsh environments ranging from -40 ° C to+40 ° C. This series of reducers uses hardened steel worm gears and wear-resistant tin bronze worm gears to ensure high load capacity and reliable performance.

Input power: 0.12~33.2kW
Size: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 250
Ratio: 10, 15, 20, 25, 30, 40, 50, 60
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

The single-stage reduction ratio range of this series of reducers is from 10:1 to 60:1, and the output torque ranges from 6 N.m to 6050 N.m. It can provide significant reduction and power transmission for various mechanical equipment, including conveyors, construction equipment, and material handling systems. Its design supports multiple installation configurations (foot or flange installation) and input options (solid shaft or with input flange), providing great flexibility for integration.
The main difference between Jiahuang WPWDA and WPWA reducers lies in their structural design and specific application areas. The WPWDA series typically features a cast iron casing and typically adopts a dual output shaft configuration or specific flange options to emphasize high torque transmission and suitability for more demanding industrial environments. In contrast, the WPWA series typically features an aluminum alloy casing, which helps reduce weight and improve heat dissipation, making it more suitable for applications that prioritize weight or moderate operating speed.

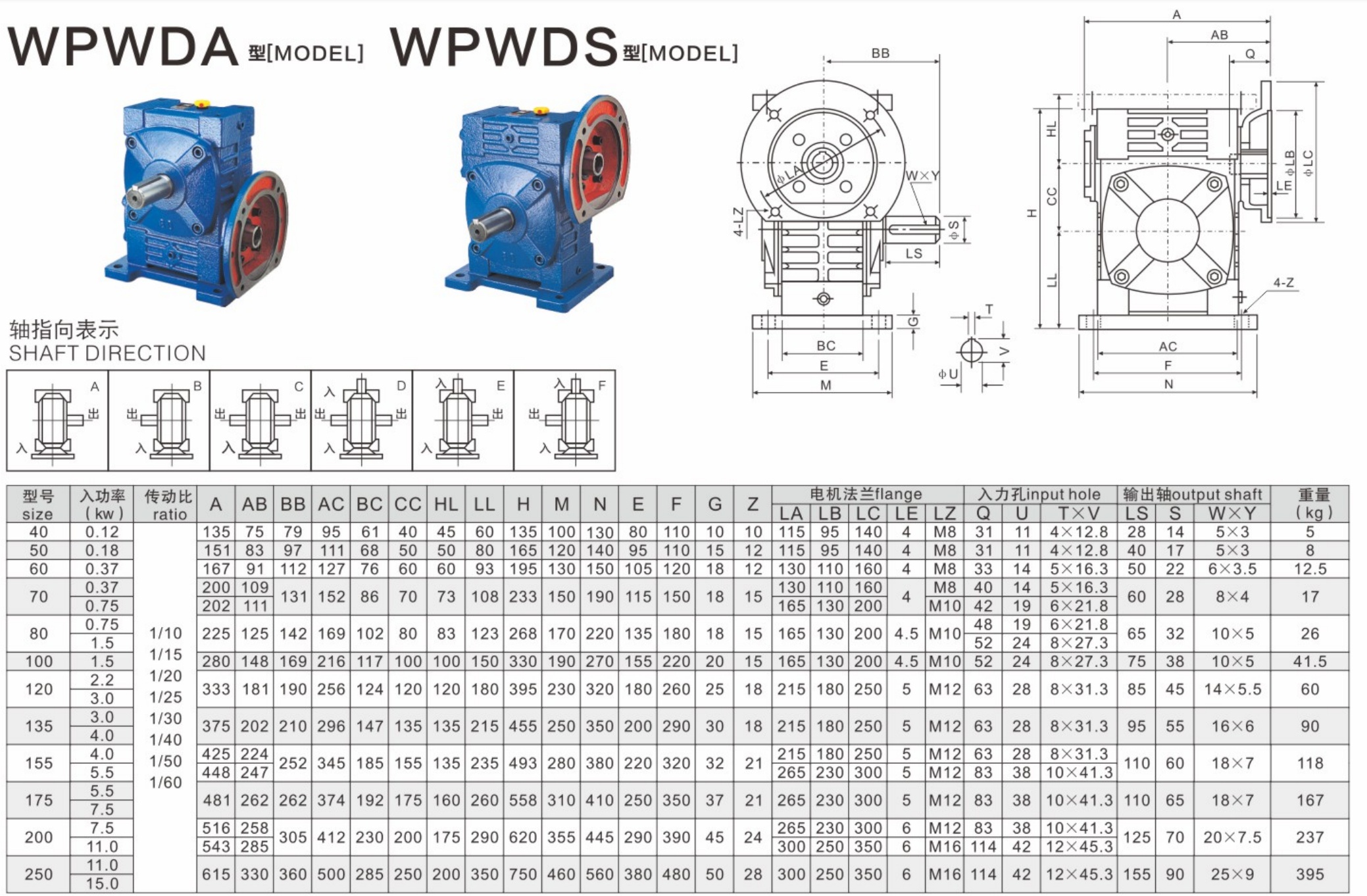

Product Name:	WPWDA Gearbox	Ratio:	10,15,20,25,30,40,50,60
Model No.	40,50,60,70,80,100,120,135,155,175,200,250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
