Gear Reducer Worm Gear Reducer For Agricultural Machinery Farm Use WPWEKO

Short Description:

Jiahuang WPWEKO is a sturdy and efficient two-stage worm gear reducer designed for significant deceleration and high torque output in various industrial applications. It integrates a single-stage worm gear gearbox and a universal gearbox, with a compact structure and a wide range of speed ratios from 1:200 to 1:900. It features a durable cast iron casing, hardened steel worm gear, and wear-resistant copper tin alloy worm gear to ensure reliable and long-lasting performance. Its design is suitable for various installation configurations and can achieve smooth and low-noise operation.

Input power: 0.12~33.2kW
Size: 40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250
Ratio: 200,300,400,500,600,800,900
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

This reducer is very suitable for high demand industries such as plastic manufacturing, metallurgy, beverage production, mining, lifting and transportation, and chemical industry. It provides power for machinery such as extruders, conveyors, mixers, and elevators, and can operate efficiently and reliably even in harsh environments. WPWEKO adopts a low maintenance design, which helps to reduce downtime and operating costs, making it a powerful and cost-effective solution for driving heavy machinery.

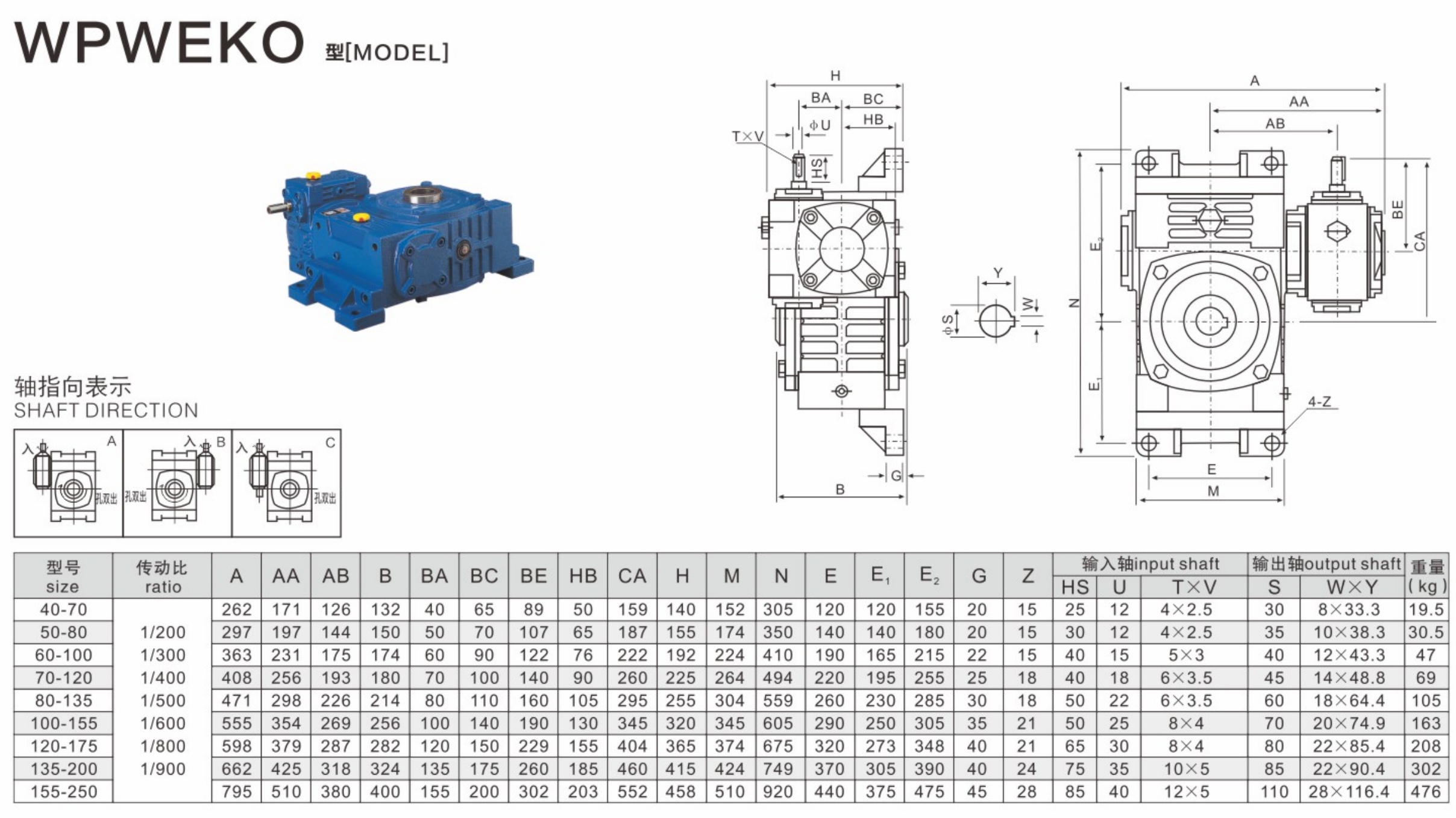

Product Name:	WPWEKO Gearbox	Ratio:	200,300,400,500,600,800,900
Model No.	40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
