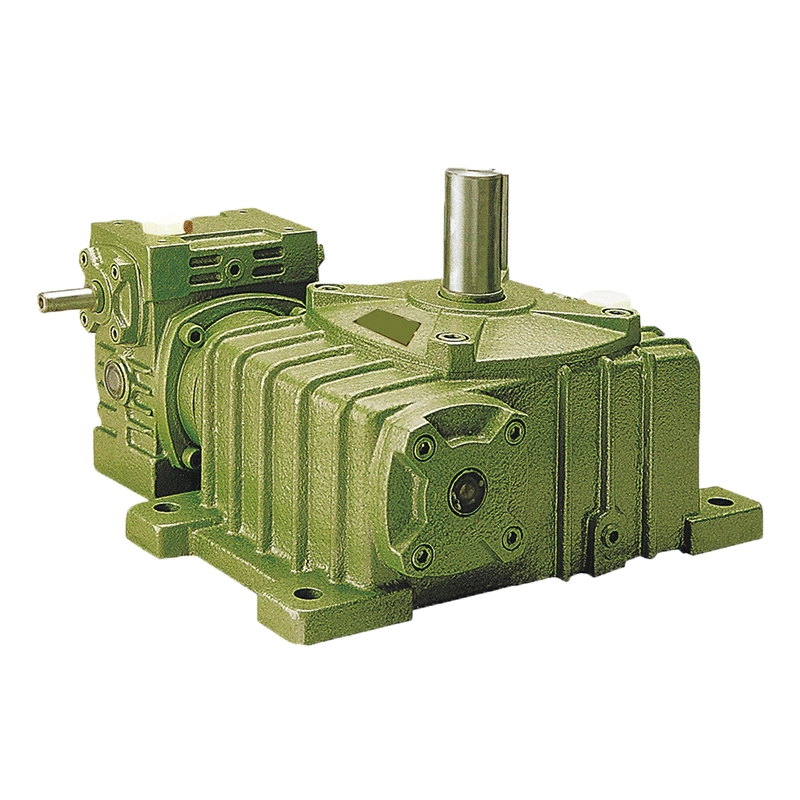

Cast Iron WP Gearbox Durable Construction Worm Type Reducer WPEO
Product Introduction
The worm gear is made of heat-treated 45 # steel, which is durable and long-lasting; The worm gear is made of wear-resistant tin bronze, which has excellent load-bearing capacity and reduces friction. Even under heavy loads, this combination can achieve smooth transmission, minimal vibration, and low noise.
WPEO gearboxes offer a wide range of transmission ratios from 200:1 to 900:1, which can meet various deceleration needs. Its maximum input speed is 1500 rpm and its operating temperature range is -40 ° C to+40 ° C. It is suitable for harsh environments, but may require auxiliary cooling or heating under extreme conditions. The self-locking function of most models of Jiahuang's WPEO also eliminates the need for additional braking systems in vertical load applications, thereby improving safety and cost-effectiveness.
|
Product Name: |
WPEO Gearbox |
Ratio: |
200,300,400,500,600,800,900 |
|
Model No. |
40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

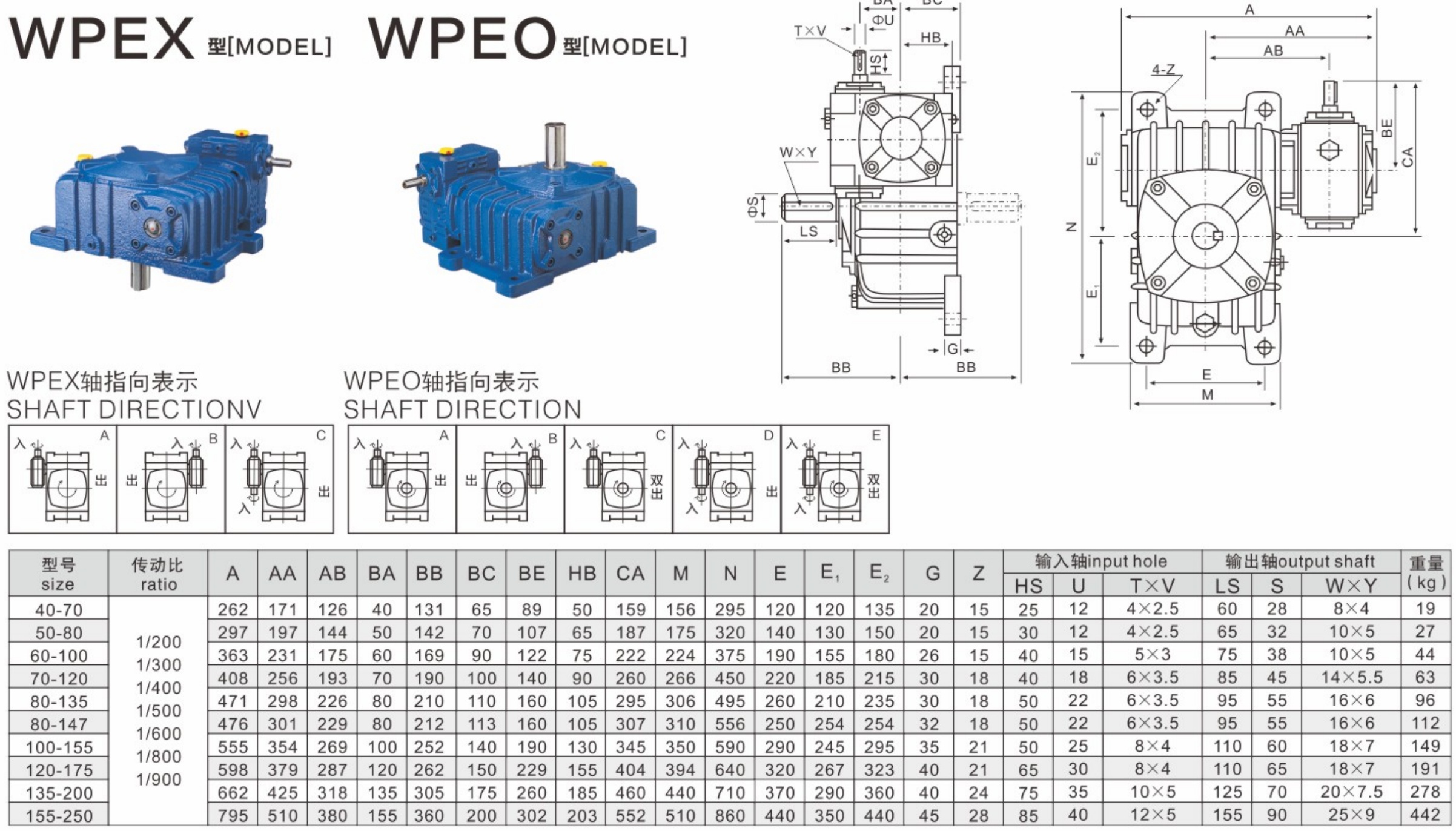

Product Details
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
