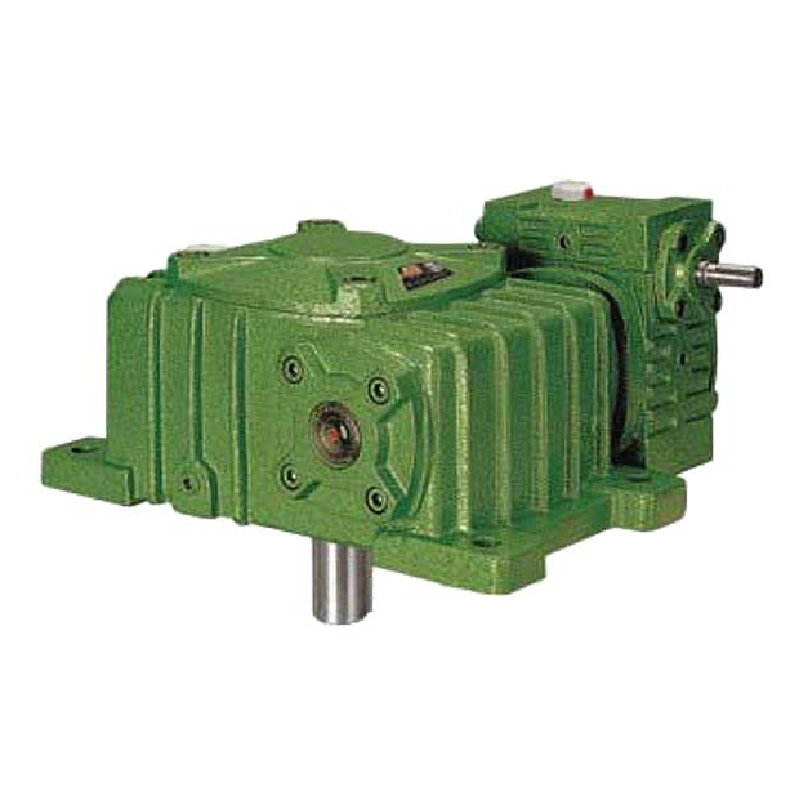

WP Worm Gear Motor Reducer IEC Standard For AC Servo Motor WPEX

Short Description:

The Jiahuang WPEX series is a two-stage worm gear reducer designed specifically for heavy-duty industrial applications. It adopts a compact modular structure and can flexibly configure dual input or dual output shafts. This series of reducers adopts high-strength cast iron shell, hardened steel worm gear and wear-resistant tin bronze worm gear, ensuring durability and efficient power transmission.

Input power: 0.12~33.2kW
Size: 40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250
Ratio: 200,300,400,500,600,800,900
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

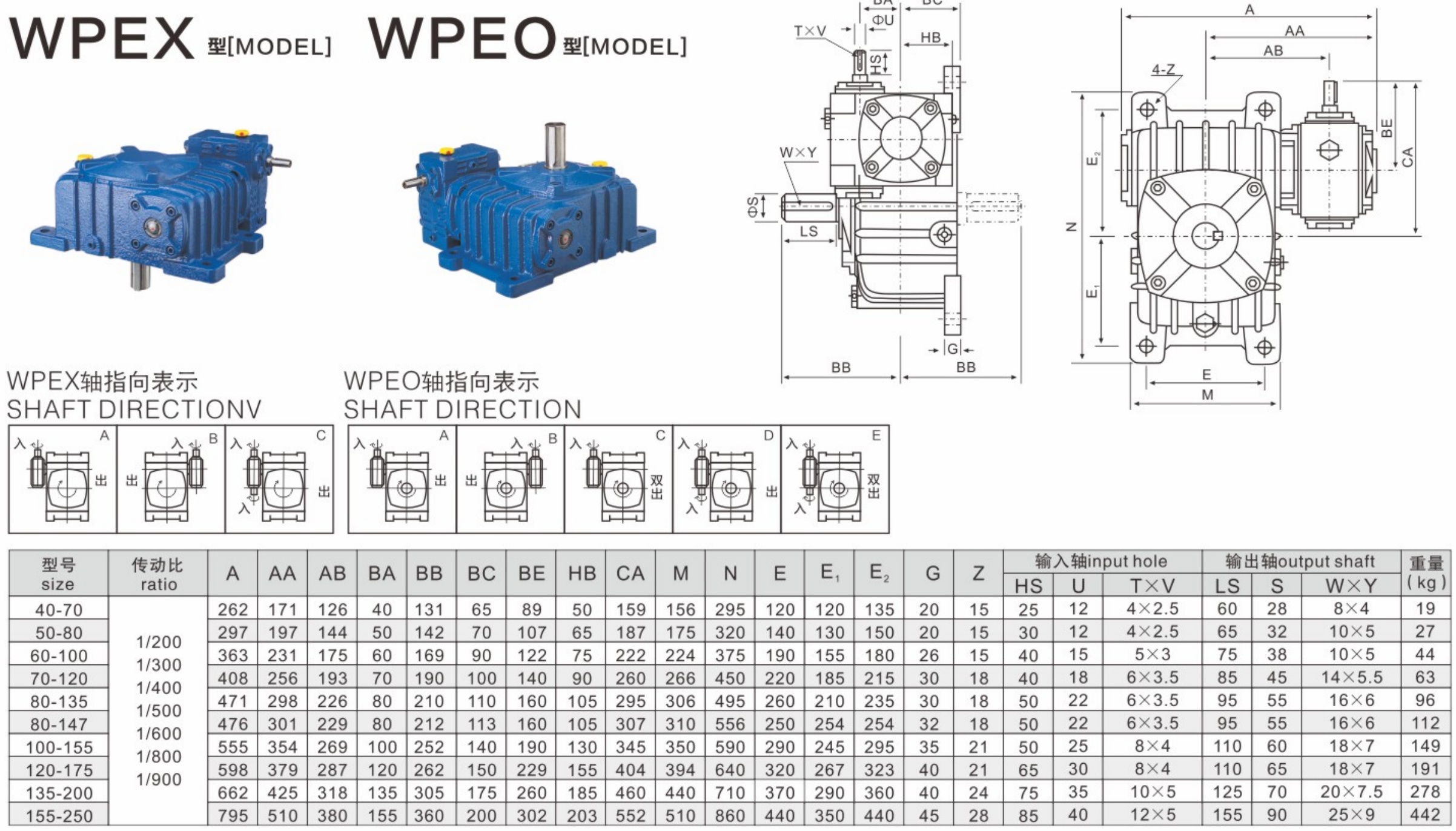

WPEX and WPEO are both two-stage reducers of the WP series, but WPEX models typically support higher torque output and more complex module combinations (such as multi-directional input/output directions). In contrast, WPEO reducers are typically optimized for specific applications that require customized installation or axial/radial load handling. In addition, WPEX devices are typically integrated with standard IEC or NEMA motor flanges to achieve direct motor coupling, while WPEO places greater emphasis on compactness to accommodate space constrained configurations. Both have self-locking function and can operate at temperatures ranging from -40 ° C to 40 ° C, but WPEX focuses more on multifunctionality in industrial environments such as ceramic processing or automotive manufacturing.

Product Name:	WPEX Gearbox	Ratio:	200,300,400,500,600,800,900
Model No.	40-70,50-80,60-100,70-120,80-135,80-147,100-155,120-175,135-200,155-250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
