WP Reduction Gearbox Gearbox Cast Iron Worm Pulley WPW WP Single Stage Reducer Ratio 10 15 20 25 30 40 50 60

Short Description:

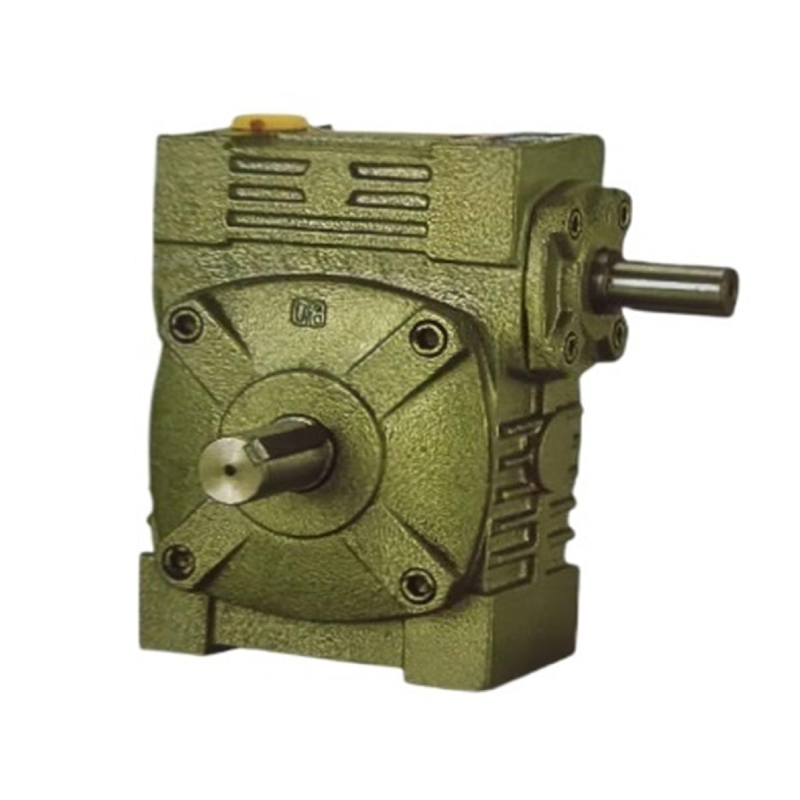

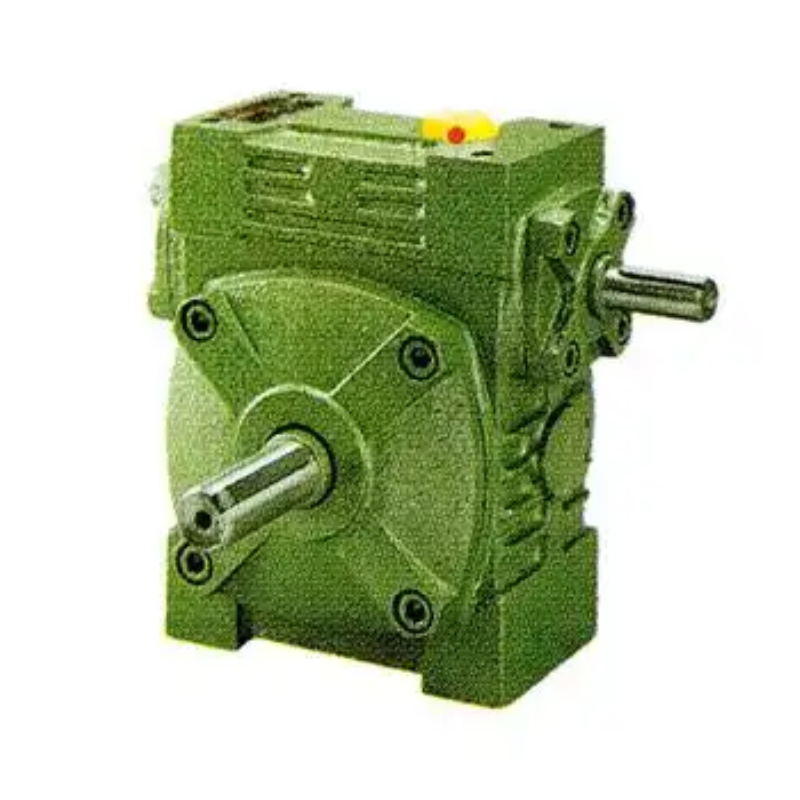

The Jiahuang WPW series worm gear reducer is designed for efficient power transmission in various industrial applications. It adopts a high-strength cast iron shell to ensure durability and efficient heat dissipation. This right angle reducer offers a wide range of single-stage transmission ratios and is highly praised for its compact structure, powerful torque output, and multiple models of self-locking function, simplifying the braking system.

Input power: 0.12~33.2kW
Size: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 250
Ratio: 10, 15, 20, 25, 30, 40, 50, 60
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

Jiahuang WPW reducer is widely used in industries such as food processing, packaging, printing, textile machinery, material handling, and metallurgy. They are easy to integrate and support various installation positions and input connection methods, including motor direct connection flanges. Built in ventilation plug and oil level observation window, easy to maintain, ensuring reliable performance and long service life, is a reliable solution for conveying and driving mechanisms.

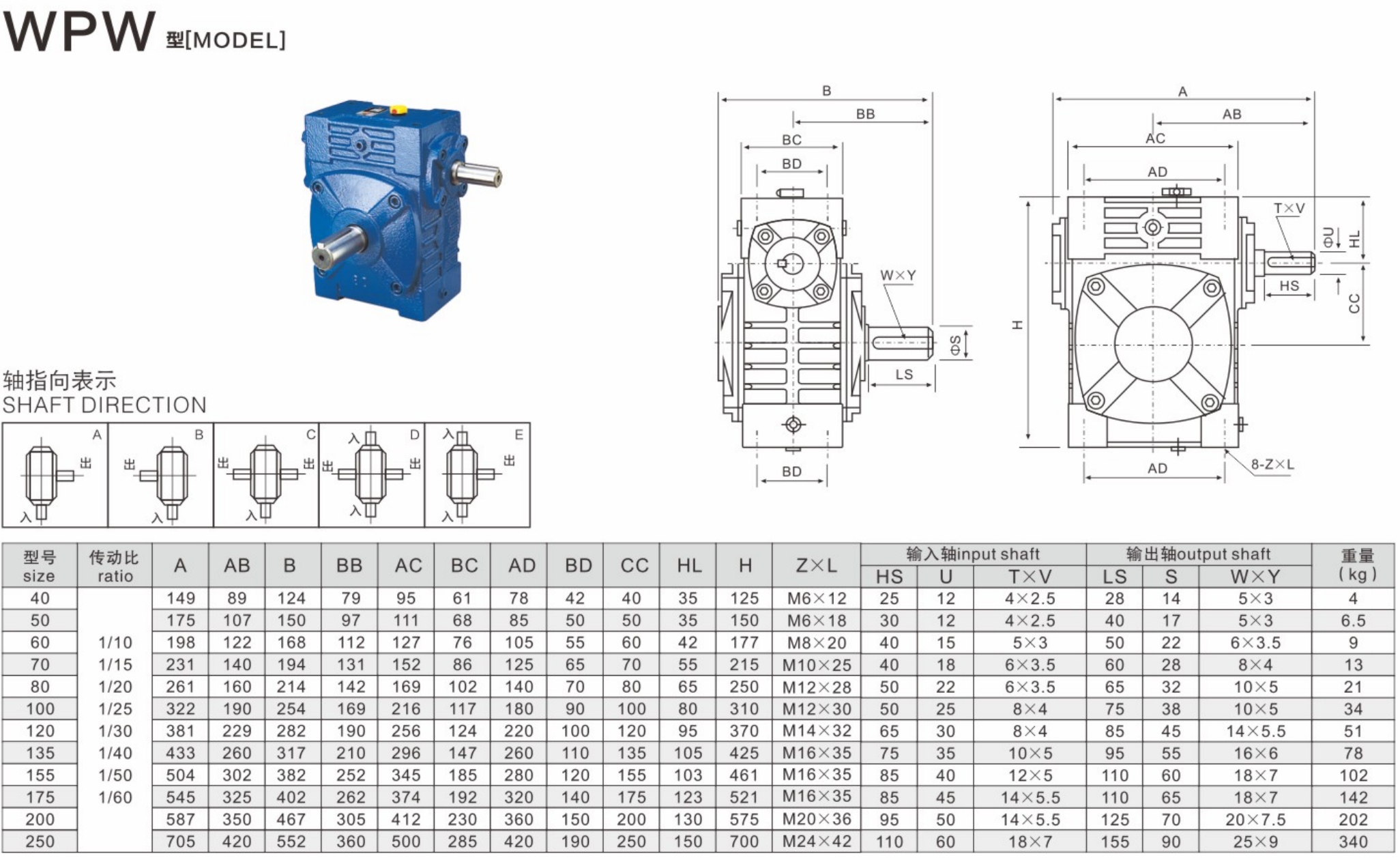

Product Name:	WPW Gearbox	Ratio:	10,15,20,25,30,40,50,60
Model No.	40,50,60,70,80,100,120,135,155,175,200,250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
