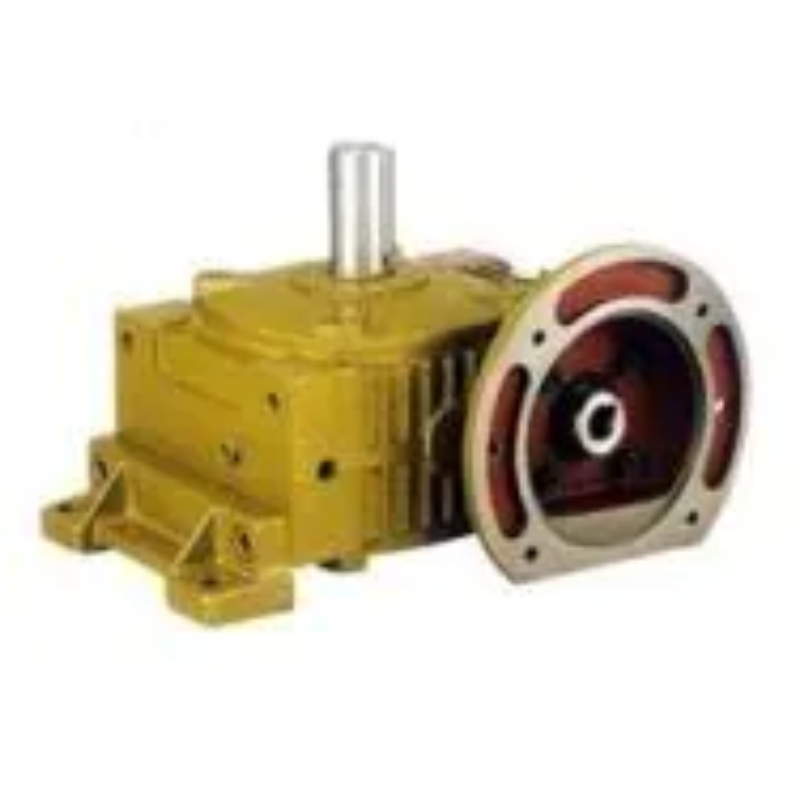

Worm Power Reducer WPWDO WP Output Axle Reducer For Sprocket Pulley Connection
Product Introduction
Its design integrates a vertical upward output shaft and IEC flange input, seamlessly integrating with standard motors. Its main advantages include smooth operation, low noise, and self-locking function under specific conditions, thereby enhancing the safety of vertical load handling. The input power range is from 0.12kW to 15kW, capable of withstanding high impact loads and maintaining reliability in harsh environments.
Jiahuang WPWDO reducer is suitable for various industries and performs well in conveying systems, packaging machinery, lifting equipment, and automated production lines. Its compact structure saves space, and its sturdy structure ensures long lifespan and extremely low maintenance requirements. This reducer also supports multiple installation methods and efficient heat dissipation, making it very suitable for continuous operation applications in food processing, material conveying, and chemical industries. Jiahuang's commitment to quality is reflected in its use of high-quality bearings and seals, providing durability and leak resistance to industrial customers worldwide.
|
Product Name: |
WPWDO Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details

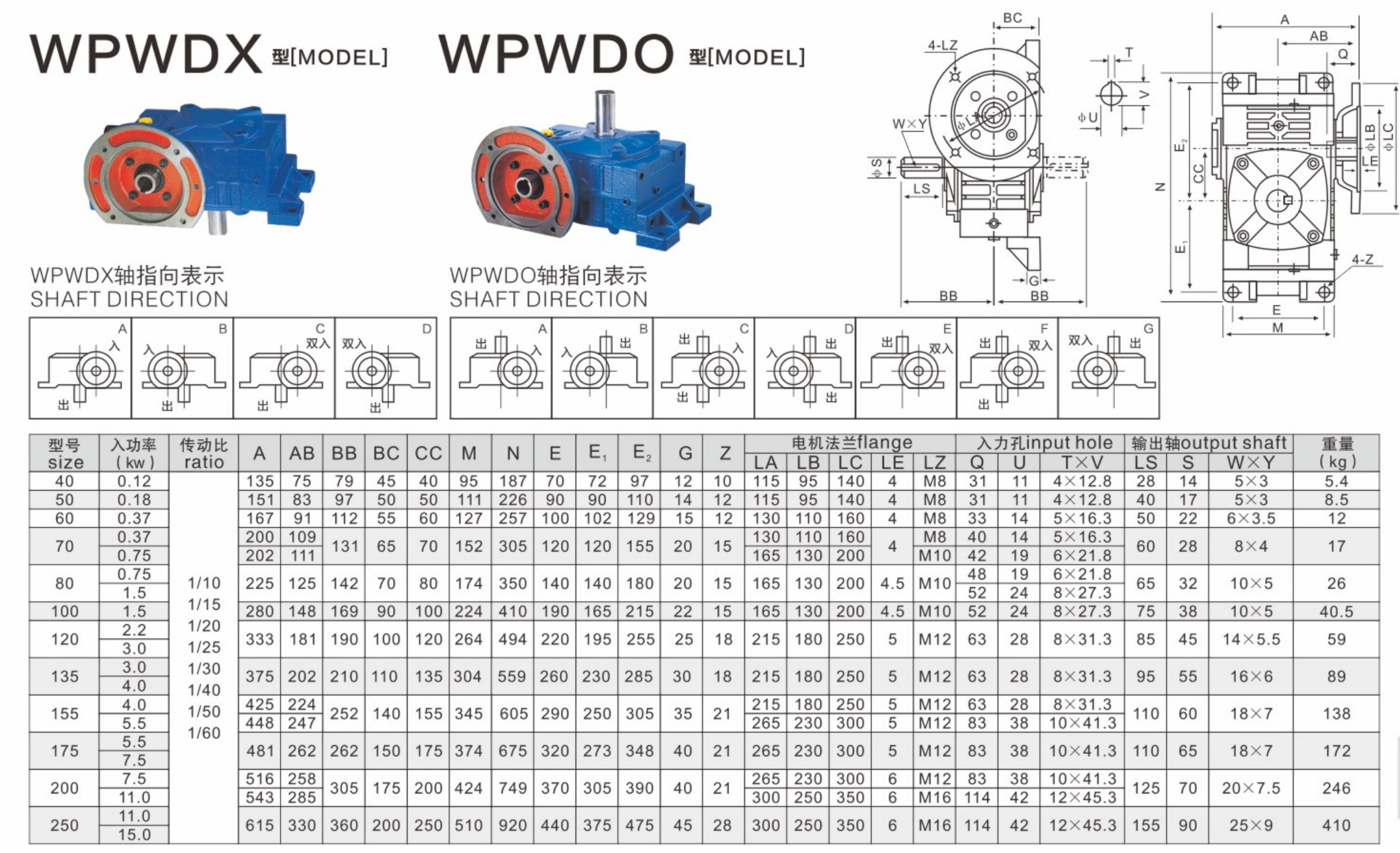

![Worm Power Reducer.png]()
Dynamical capacity table
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
