Worm Gear WP Low Backlash Reducer Precision Motion Control WPWT

Short Description:

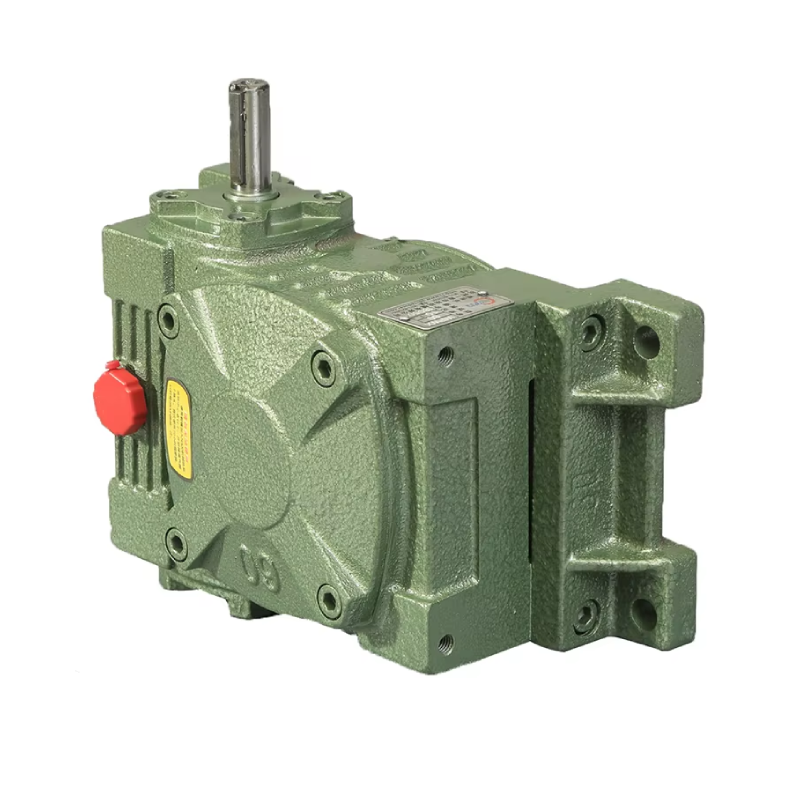

The Jiahuang WPWT series worm gear reducer is a robust and efficient power transmission solution designed specifically for various industrial applications. Its structure is compact, using a cast iron shell to ensure durability and heat dissipation.

Input power: 0.12~33.2kW
Size: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 250
Ratio: 10, 15, 20, 25, 30, 40, 50, 60
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

The worm gear is made of hardened 45 # steel, and the worm wheel is made of wear-resistant tin bronze, which has excellent load-bearing capacity and service life. This reducer has a high reduction ratio (ranging from 10:1 to 60:1), smooth operation, low noise, minimal vibration, and reliable self-locking function, making it very suitable for applications that require precise speed control and torque multiplication.

Jiahuang WPWT reducers are widely used in industries such as metallurgy, mining, chemical engineering, construction, and food processing, and perform well in conveyors, mixers, elevators, and packaging machinery. Its universal installation design allows for flexible installation in multiple directions, while its efficient thermal management and lubrication system ensures stable performance under harsh conditions. The WPWT series perfectly combines strength, efficiency, and versatility, making it a reliable choice for improving the productivity and reliability of mechanical systems.

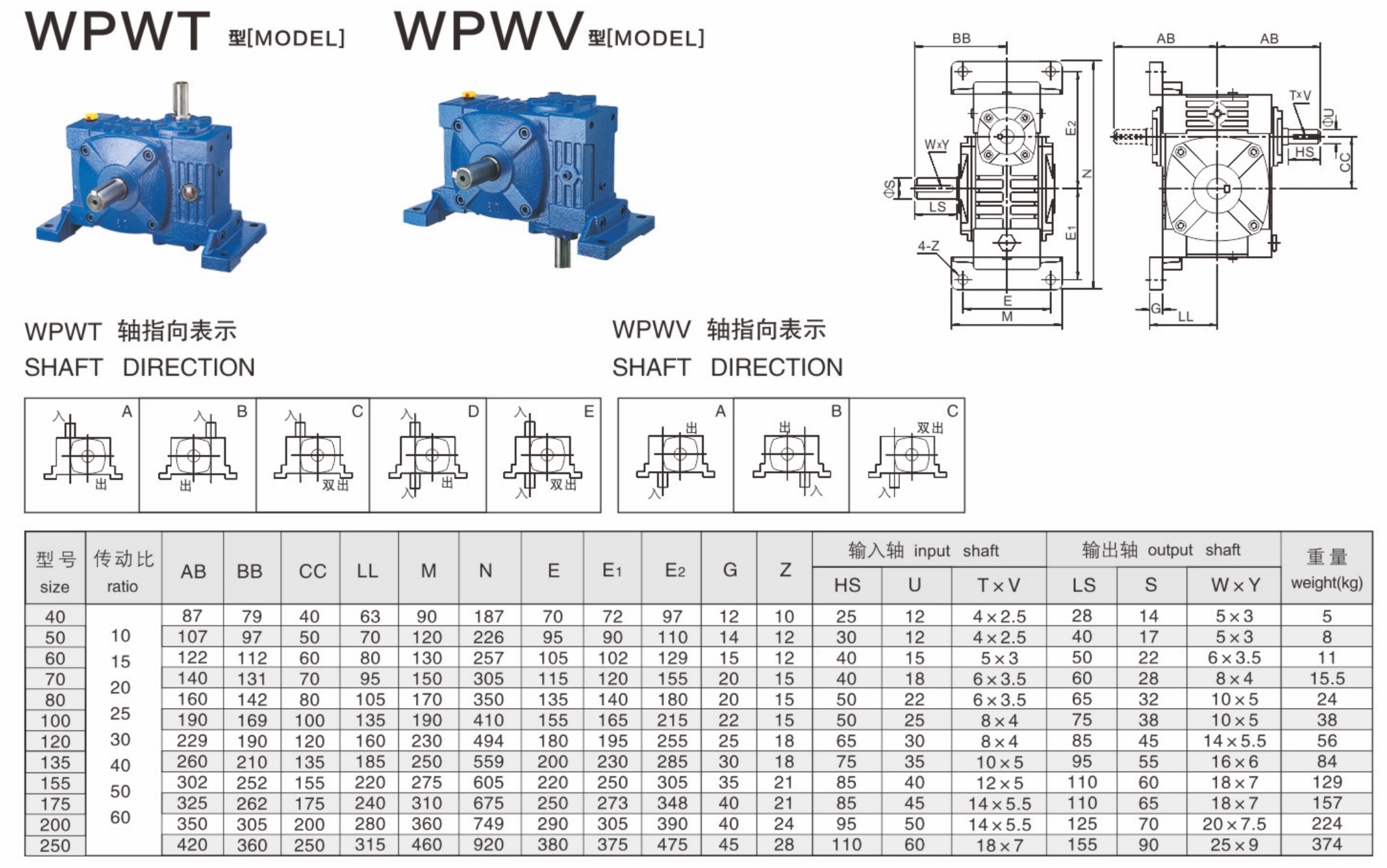

Product Name:	WPWT Gearbox	Ratio:	10,15,20,25,30,40,50,60
Model No.	40,50,60,70,80,100,120,135,155,175,200,250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
