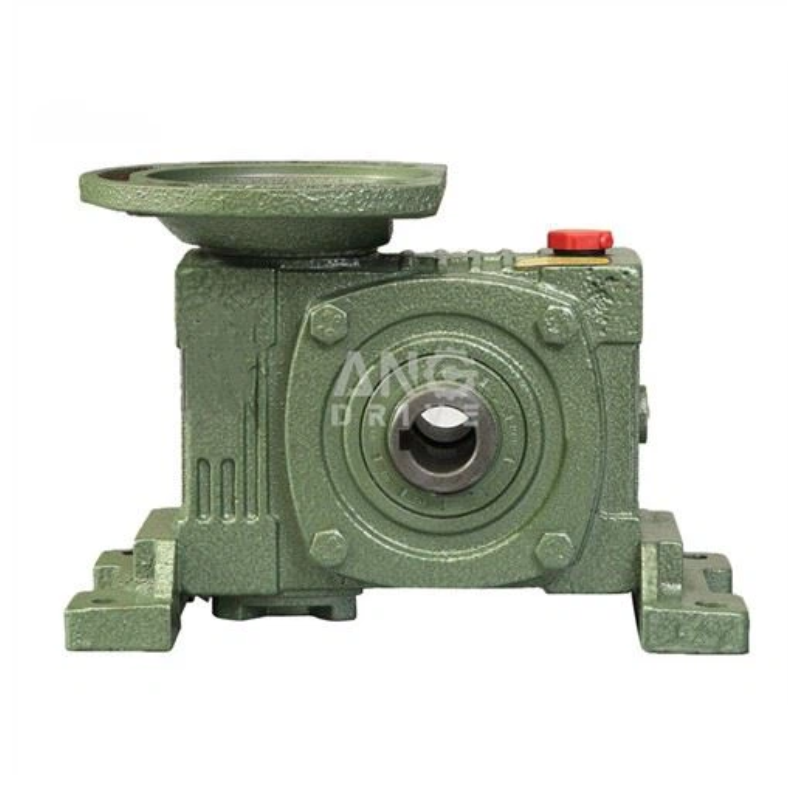

Worm Gear Transmission Wp Type Worm Gear WPWDKT Pulley Speed Reducer
Product Introduction
It offers multiple installation forms (horizontal or vertical), input configurations, and output shaft options, making it highly adaptable. WPWDKT is commonly used in applications such as plastic machinery, metallurgy, food packaging, and material handling, with a working temperature range of -40 ° C to+40 ° C.
The main difference between Jiahuang WPWDKT and WPWKT models lies in their respective design configurations and possible output mechanisms. Although both belong to the WP series, the "D" in WPWDKT usually indicates a specific base or installation method, while the "T" may indicate a specific output shaft type or housing modification. The specific differences may vary by manufacturer, but WPWKT models may offer different connection options or slightly different housing designs than WPWDKT. For precise technical specifications and differences, we recommend that you always consult the official JIAHUANG product manual.
|
Product Name: |
WPWDKT Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details

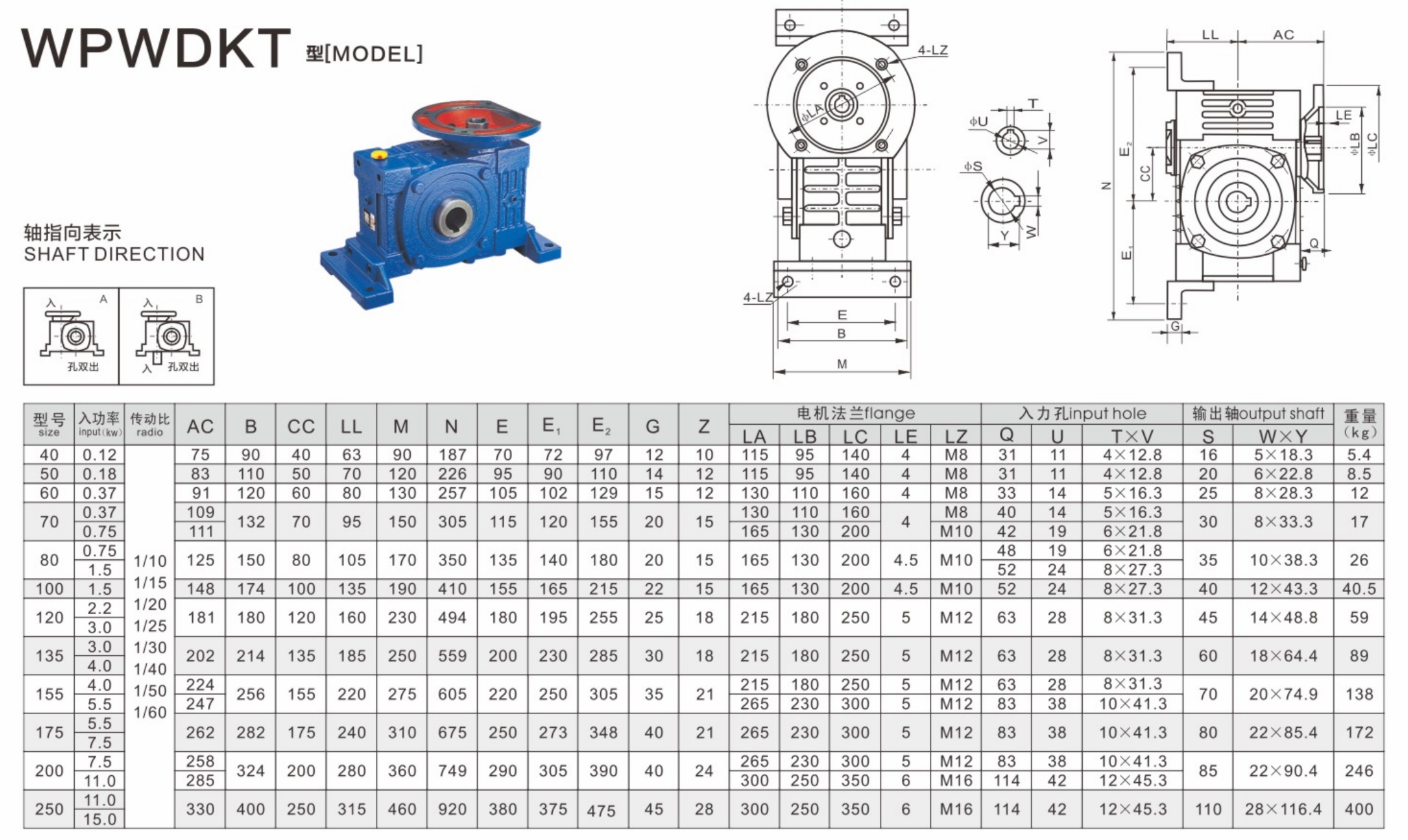

![Worm Gear Transmission.png]()
Dynamical capacity table
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
