Transmission Reducer WP Lifespan Lubricated Reducer Low Maintenance Requirement WPWK

Short Description:

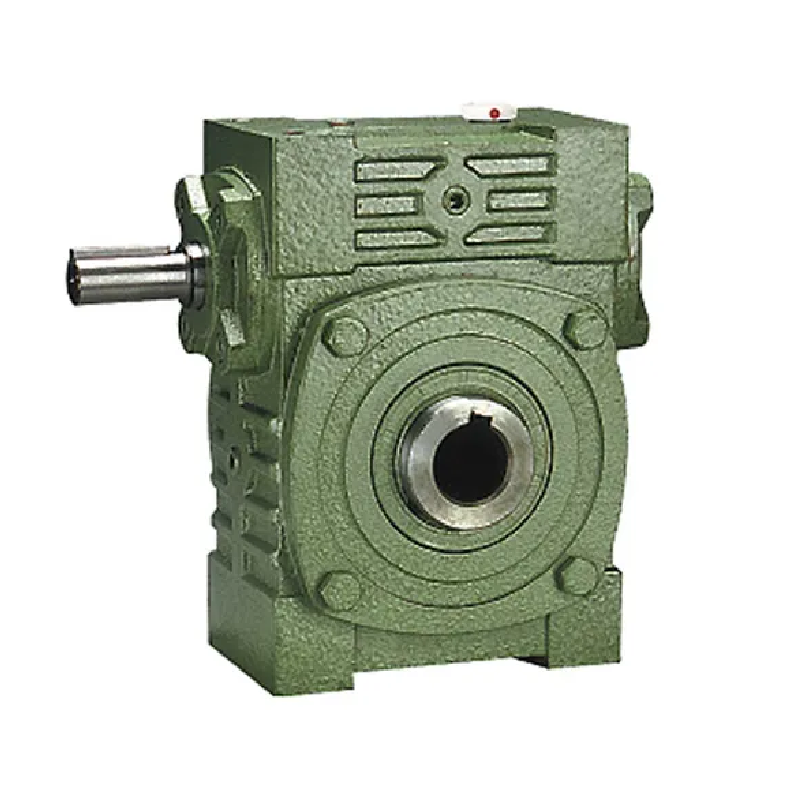

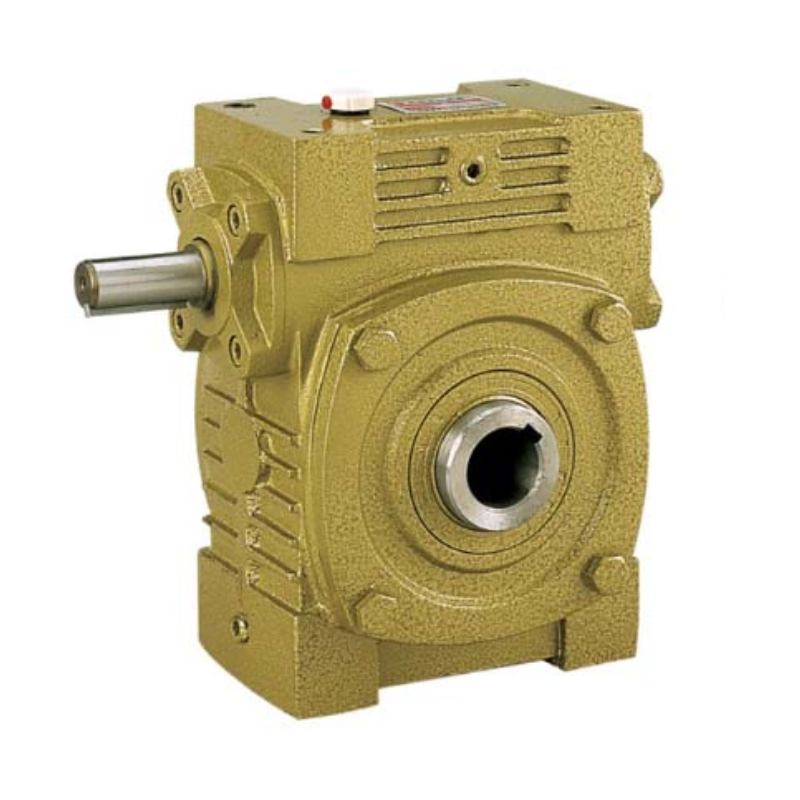

Jiahuang WPWK worm gear reducer is a multifunctional and efficient power transmission solution designed specifically for various industrial applications. Its structure is sturdy, using hardened steel worm gear and wear-resistant tin bronze worm gear to ensure durability and smooth operation. This reducer is known for its compact structure, large transmission ratio, and high torque capacity.

Input power: 0.12~33.2kW
Size: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 250
Ratio: 10, 15, 20, 25, 30, 40, 50, 60
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

It is suitable for industries such as plastics, metallurgy, mining, and construction machinery. The WPWK model adopts a "universal" housing design, allowing for multiple installation positions and installation flexibility.
Compared to WPWD reducers, the Jiahuang WPWK series typically offers a more adaptable housing structure with multiple fixing holes on different sides, allowing for greater installation flexibility without the need for an additional base plate. Although both belong to the WP series and share similarities in material composition and overall performance, WPWK's design emphasizes enhanced modularity and installation options, making it suitable for applications with limited space and strict directional requirements.

Product Name:	WPWK Gearbox	Ratio:	10,15,20,25,30,40,50,60
Model No.	40,50,60,70,80,100,120,135,155,175,200,250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
