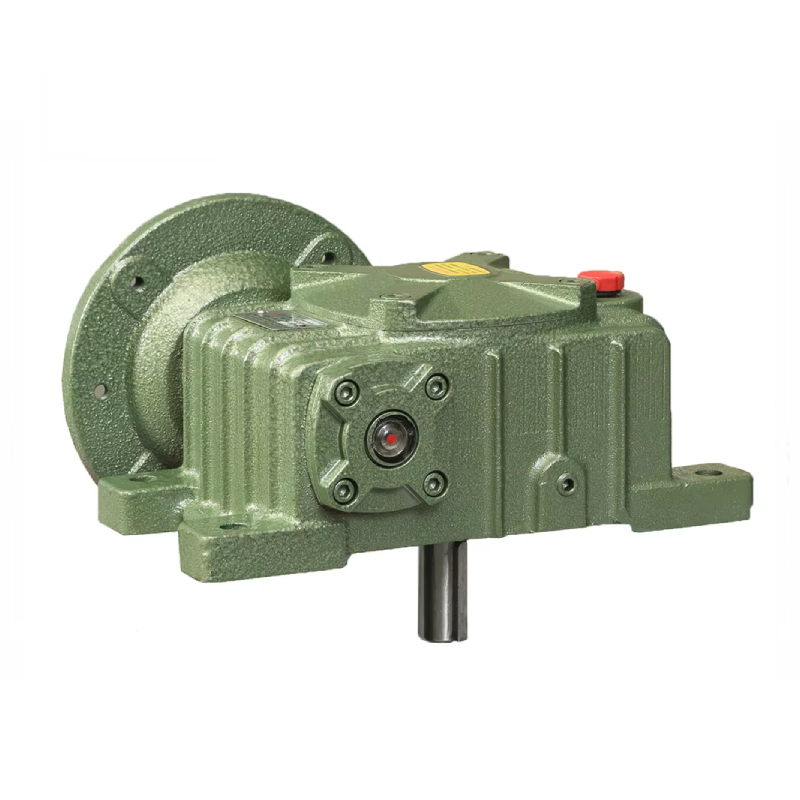

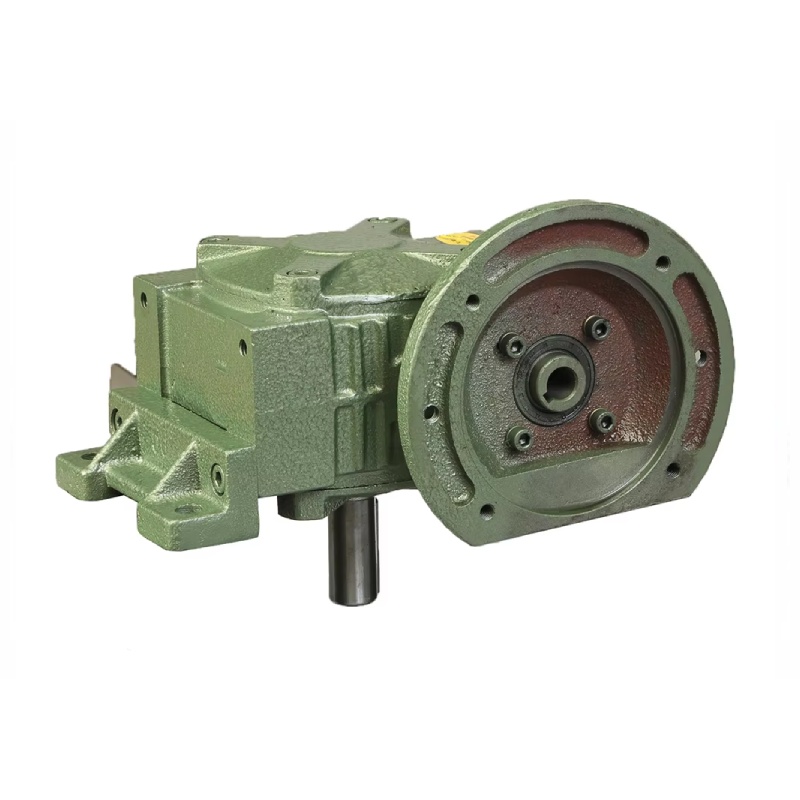

Speed Gear Transmission WPWDX WP Input Flange Reducer Easy Connection To Drive Motor
Product Introduction
They typically use cast iron shells and hardened steel as the worm gear, with wear-resistant nickel bronze as the worm wheel to ensure durability and high load capacity. They are suitable for various industries such as plastics, metallurgy, beverages, mining, and construction machinery.
The main difference between WPWDX and WPWDO models lies in their output configuration and installation form. The characteristic of the WPWDX model is its worm side mounting, while the worm direction of the WPWDO model is different, which usually results in different output shaft directions and installation methods (for example, the output shaft of the WPDX model is facing downwards). The differences in mechanical design and assembly forms determine their suitability for specific space constraints and installation requirements in machinery.
|
Product Name: |
WPWDX Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

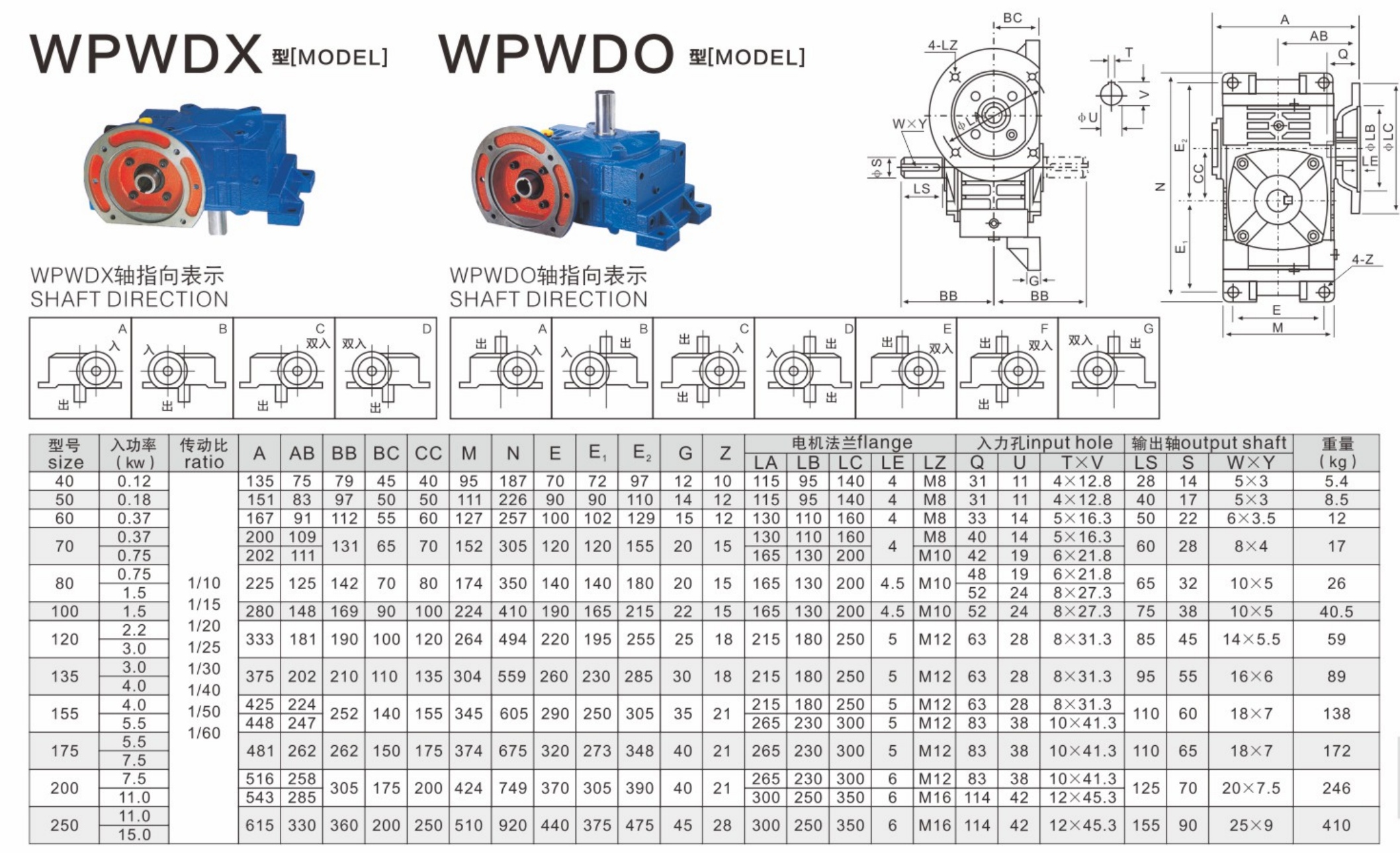

Product Details
![Speed Gear Transmission.png]()
Dynamical capacity table
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
