Speed Gear Transmission WP Explosion Proof Reducer Customizable WPWDKA
Product Introduction
Its compact structure has excellent self-locking ability, making it very suitable for applications that require built-in braking. The working temperature range of this gearbox is -40 ° C to+40 ° C, and proper lubrication is required to achieve optimal performance.
Unlike the WPWKA model that typically uses a universal housing with multiple mounting surfaces, WPWDKA typically uses a base type housing with bottom foot mounting to enhance stability. Although the material specifications and basic working principles of the two are similar, the WPWDKA series usually focuses more on higher torque transmission and adaptability to more harsh working conditions, which is reflected in its unique structural design and installation configuration.
|
Product Name: |
WPWDKA Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details

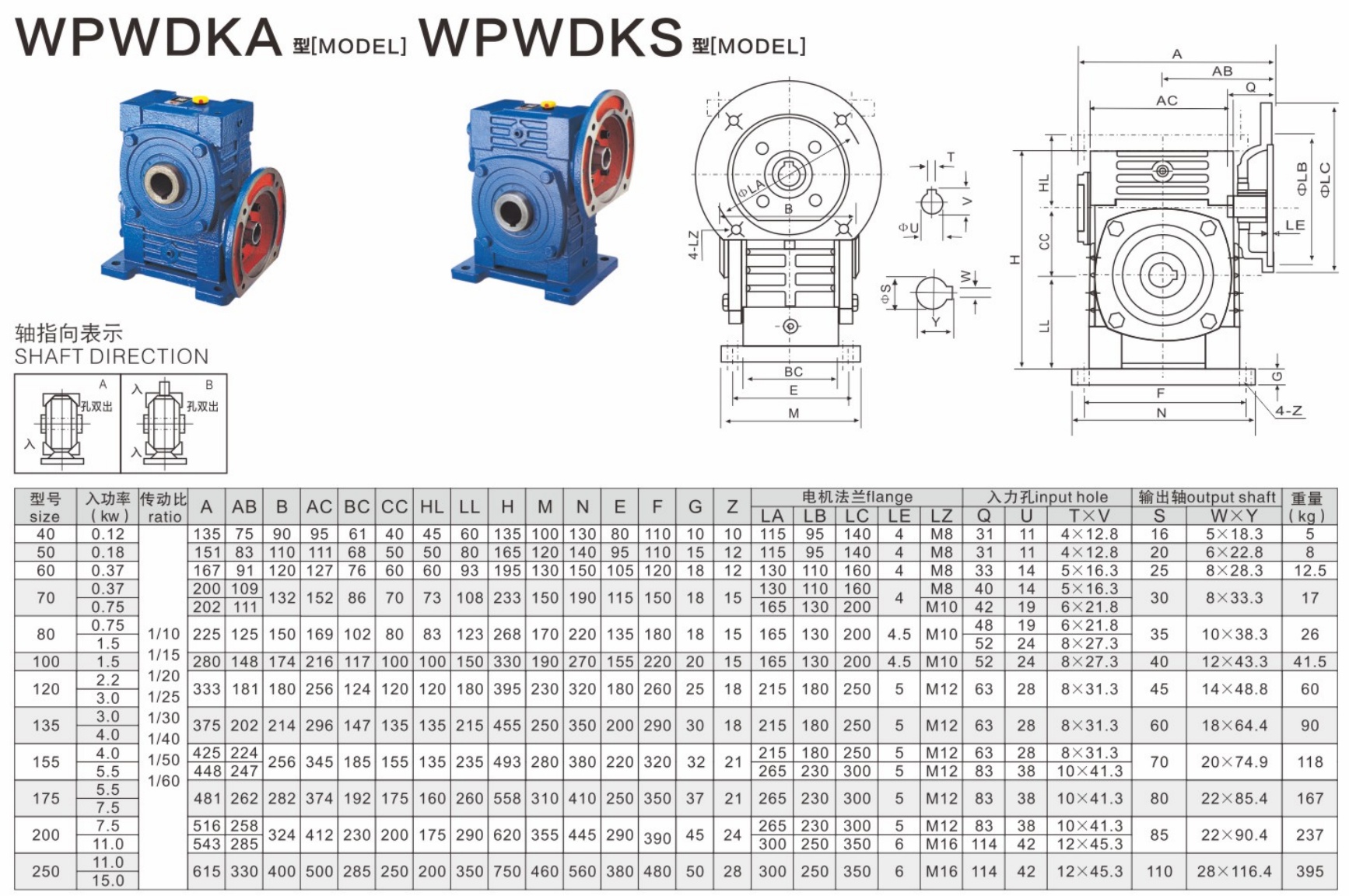

Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
