Reduction Transmission Gear WP Vertical Mount Reducer WPWKV For Mixing Agitation Equipment

Short Description:

Jiahuang WPWKV reducer is a high-performance worm gear reducer designed specifically for heavy-duty industrial applications. The single-stage reduction ratio range is 10 to 60, providing powerful torque output (up to 4000 N.m), smooth operation, and minimal noise and vibration.

Input power: 0.12~33.2kW
Size: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 250
Ratio: 10, 15, 20, 25, 30, 40, 50, 60
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

Its universal housing allows for flexible installation (horizontal or vertical) and supports integrated brake clutch functionality, making it suitable for applications that require precise motion control. It is designed specifically for industries such as mining, metallurgy, and machinery, and performs well in environments where high rigidity and torsional strength are crucial.

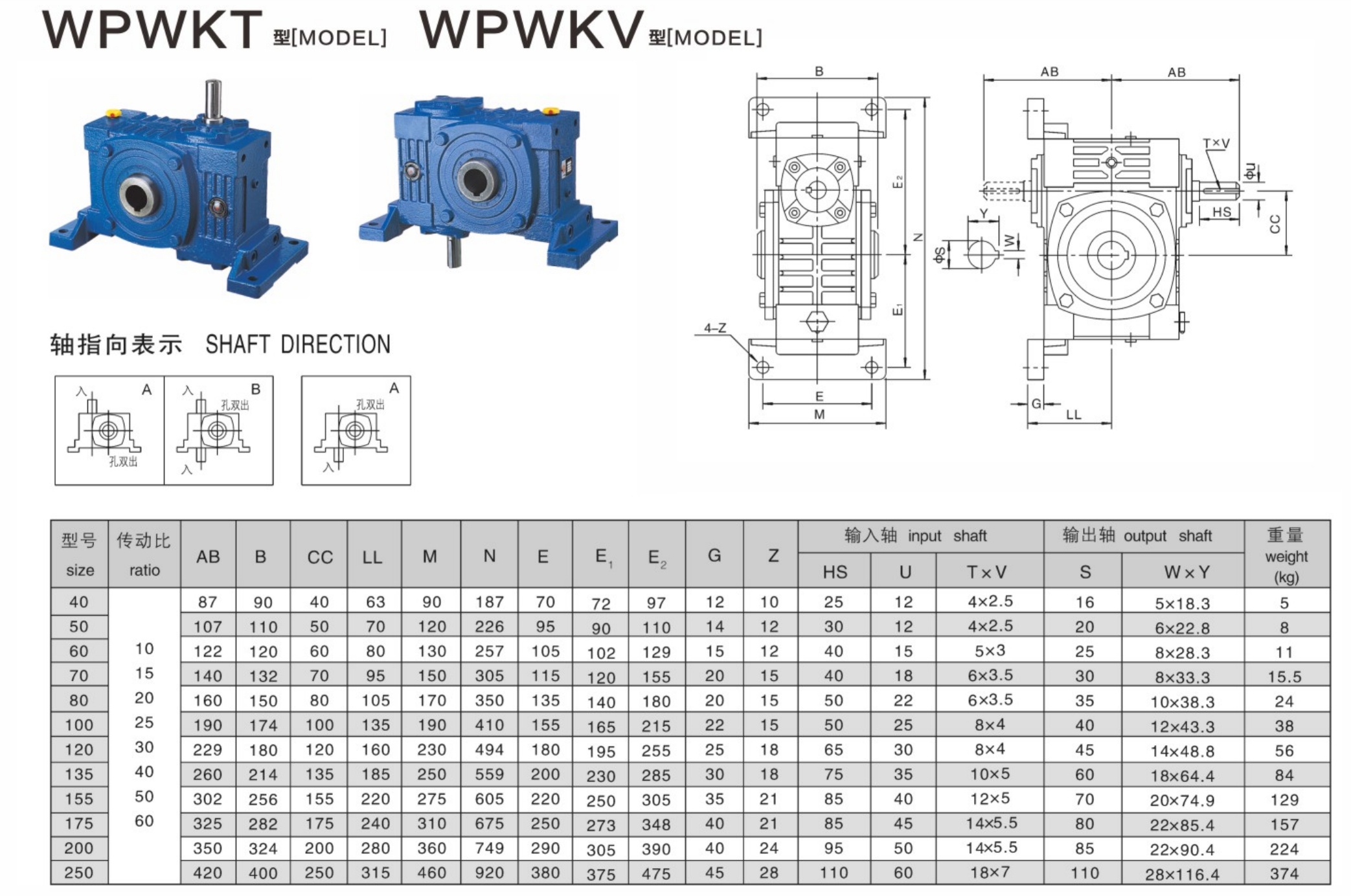

The main difference between WPWKV and WPWKT lies in their structural design and application focus. WPWKV emphasizes the enhancement of torsional stiffness and axial load capacity, making it suitable for high impact load systems such as conveyor belts or mixers. In contrast, the WPWKT model prioritizes compactness and lightweight performance, typically using aluminum alloy components, suitable for applications that require reduced inertia and increased response speed, such as packaging machinery or automation systems. In addition, WPWKV typically comes standard with integrated braking options, while WPWKT may need to be customized for similar functions to reflect its customized role in high-power and high agility environments.

Product Name:	WPWKV Gearbox	Ratio:	10,15,20,25,30,40,50,60
Model No.	40,50,60,70,80,100,120,135,155,175,200,250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
