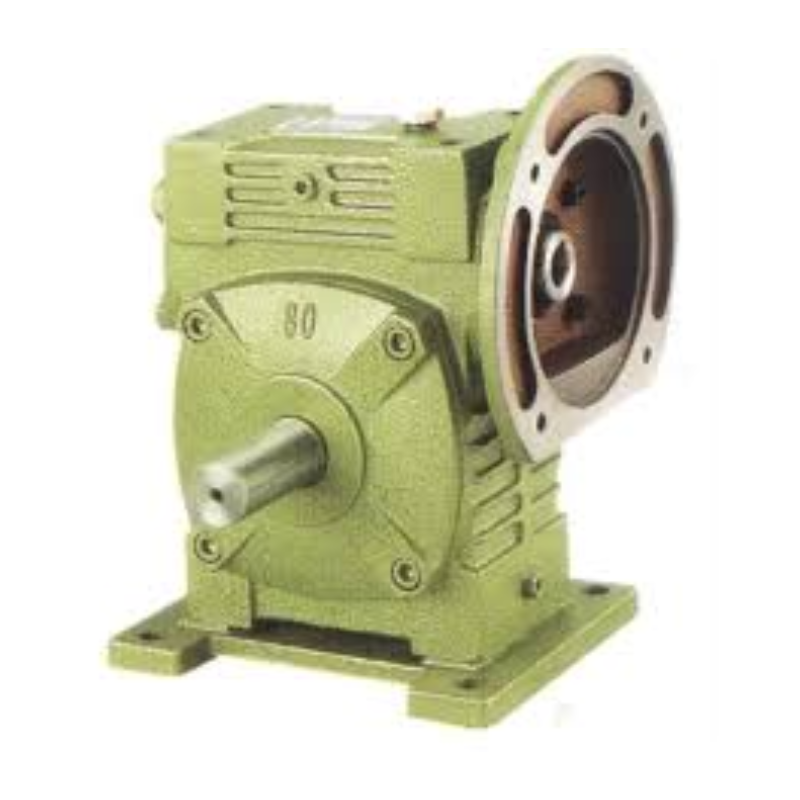

Transmission Reducer Pulley WP Corrosion Resistant Reducer For Marine Environment WPWDS

Short Description:

The Jiahuang WPWDS series worm gear reducer belongs to the WP series and is designed to provide long-lasting and efficient power transmission in applications such as plastic machinery, metallurgy, beverage production, mining, lifting and transportation, and chemical construction equipment.

Input power: 0.12~33.2kW
Size: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200, 250
Ratio: 10, 15, 20, 25, 30, 40, 50, 60
Color: green, blue, yellow, etc

CONTACT NOW Download

Product Detail

Product Tags

Product Introduction

This series of worm gears adopts hardened 45 # steel worm gears and wear-resistant tin bronze worm gears, which have strong load-bearing capacity. Its main features include compact structure, large single-stage reduction ratio (such as 10, 15, 20, 25, 30, 40, 50, 60), multiple models with strong self-locking ability, smooth operation, low vibration, and low noise. Its universal box design allows it to be flexibly installed in various positions.

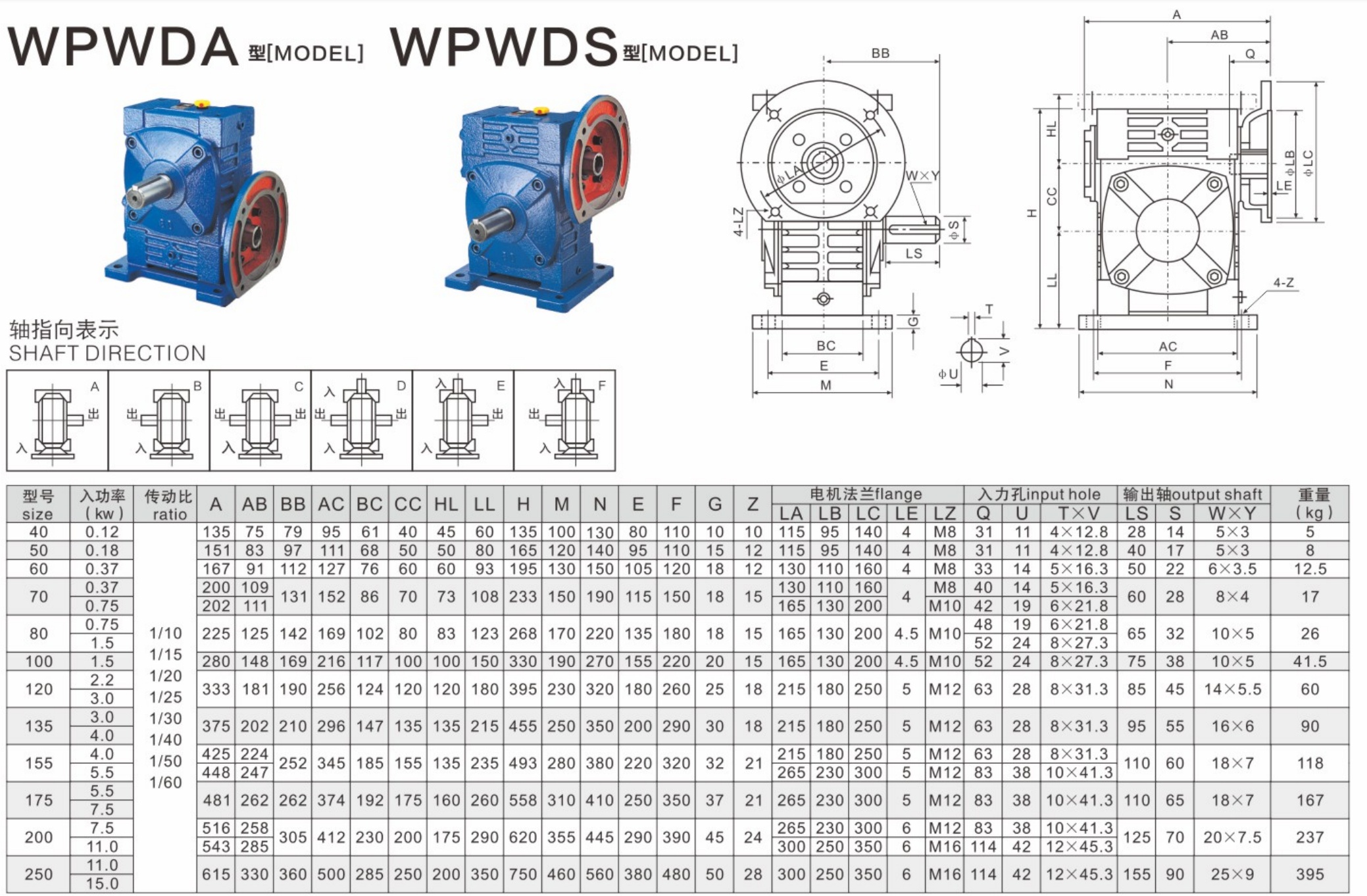

The main difference between Jiahuang WPWDS and WPWS models lies in their unique design configuration and naming conventions in the WP series. The core technological foundations of both are the same, including material composition and general performance characteristics such as high torque output, as well as the need for effective lubrication due to inherent heat generation caused by sliding friction. The naming convention of WPWDS indicates a design variant that may offer different input/output shaft arrangements (solid or hollow), installation options (foot mounting or flange mounting), or specific housing styles, while WPWS is known for its versatile housing suitable for multiple installation directions. Ultimately, the choice between the two depends on the precise mechanical interface and installation requirements of the application.

Product Name:	WPWDS Gearbox	Ratio:	10,15,20,25,30,40,50,60
Model No.	40,50,60,70,80,100,120,135,155,175,200,250	Color:	Customized
In Power:	0.06kw-15kw	Output Torque:	<1050nm
Shell Material:	Die-Cast Cast Iron	Worm Wheel:	9-4
Bearing:	WWI, C&U	Oil Seal:	KSK
Shaft:	Carbon Steel 45#	Packing:	Carton and Wooden Case
Warranty:	1 Year	Origin:	Hangzhou Zhejiang
