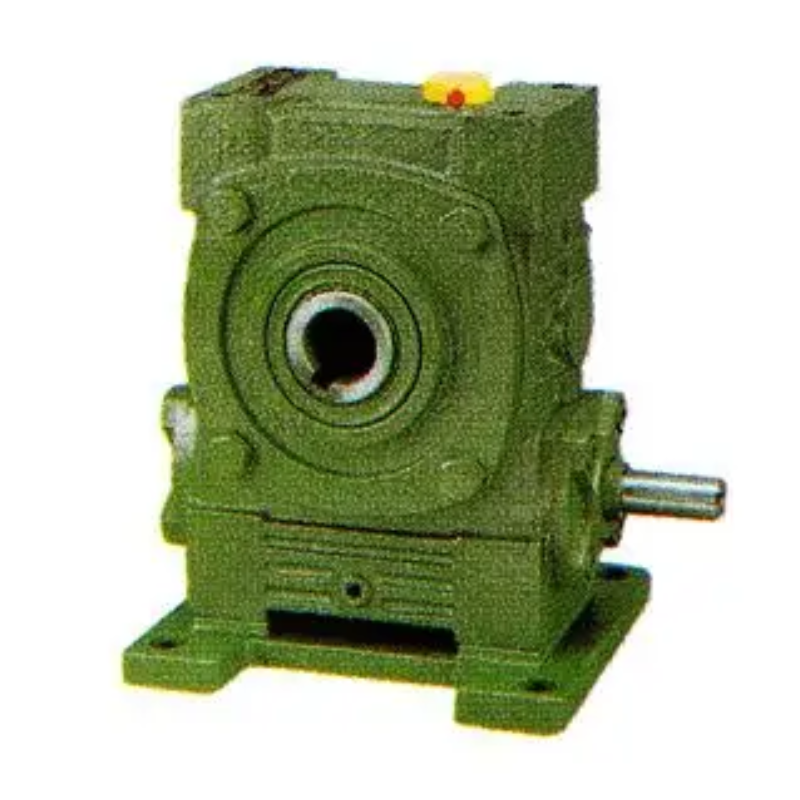

Speed Gearbox Small Speed WP Customizable Gearbox Shaft Configurations WPWKA
Product Introduction
Its characteristics are smooth operation, low noise, high precision, excellent sealing performance, and can prevent oil leakage. This reducer is suitable for applications such as industrial conveyors, automotive production, textile machinery, and food processing.
The main difference between WPWKA and WPWDA models lies in their mechanical configuration and installation options. WPWKA typically adopts a specific axis direction, where the worm gear is located below the worm wheel and typically features a hollow output shaft design. In contrast, WPWDA models may offer different structural forms, including basic models (vertical or horizontal structures with foot mounting) or universal models (rectangular boxes with multiple fixed screw holes, without or with additional feet). In addition, WPWDA provides greater flexibility in the arrangement and connection methods of input and output shafts, such as basic single or dual input shafts and options with motor flanges. These design changes may enable WPWDA to better adapt to different spatial and interconnect requirements in complex mechanical layouts.
|
Product Name: |
WPWKA Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |

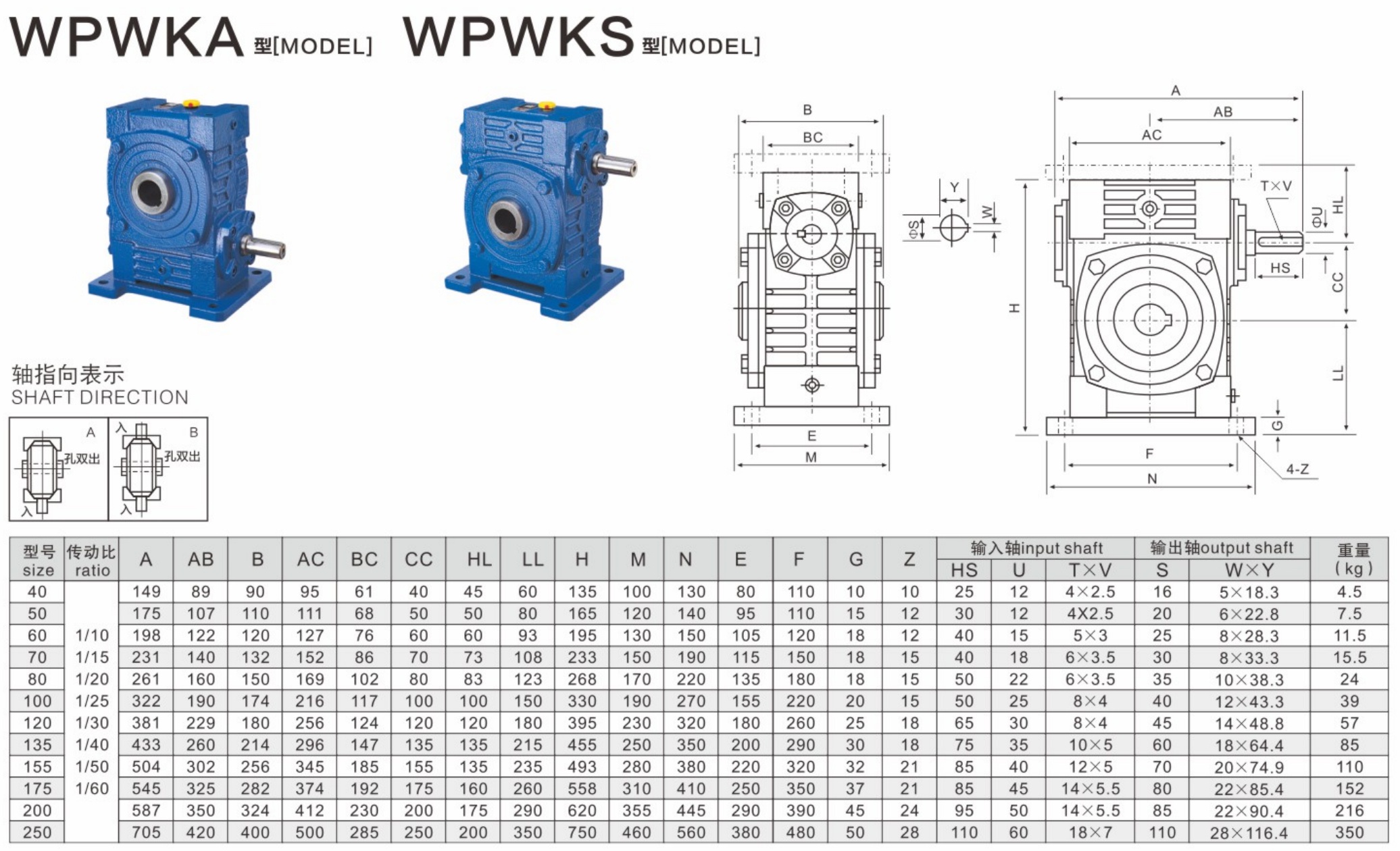

Product Details
Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
