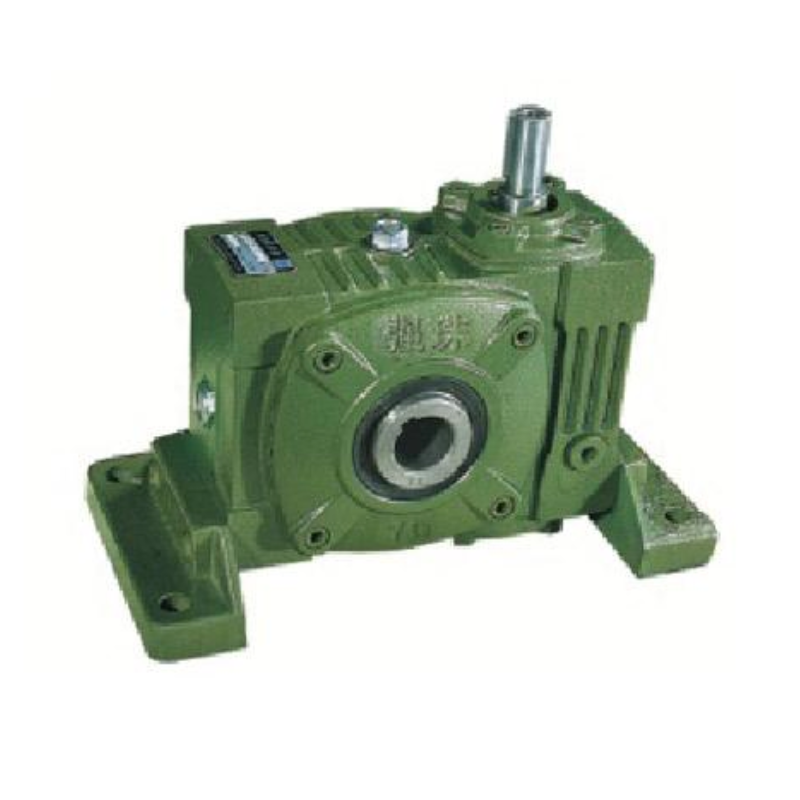

Worm Transmission Gearbox WPWKT WP Self-Locking Worm Gearbox For Safety Critical Applications
Product Introduction
The Jiahuang WPWKT series reducers are highly suitable for use in plastic, metallurgical, mining, and material handling machinery, providing reliable performance even in harsh environments.
The working environment temperature range of this series of reducers is -40 ° C to 40 ° C, and appropriate lubrication is required to achieve optimal performance and service life. The sturdy cast iron casing has excellent rigidity and heat dissipation performance. The input power range of Jiahuang WPWKT reducer is 0.12kW to 15kW, with an output torque of up to 6050 N • m. It can adapt to various motor connections and shaft configurations, providing flexibility for many mechanical designs. It is widely used in industries such as food packaging, chemical processing, and building automation, demonstrating its versatility and reliability in achieving precise speed control and torque multiplication.
|
Product Name: |
WPWKT Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details

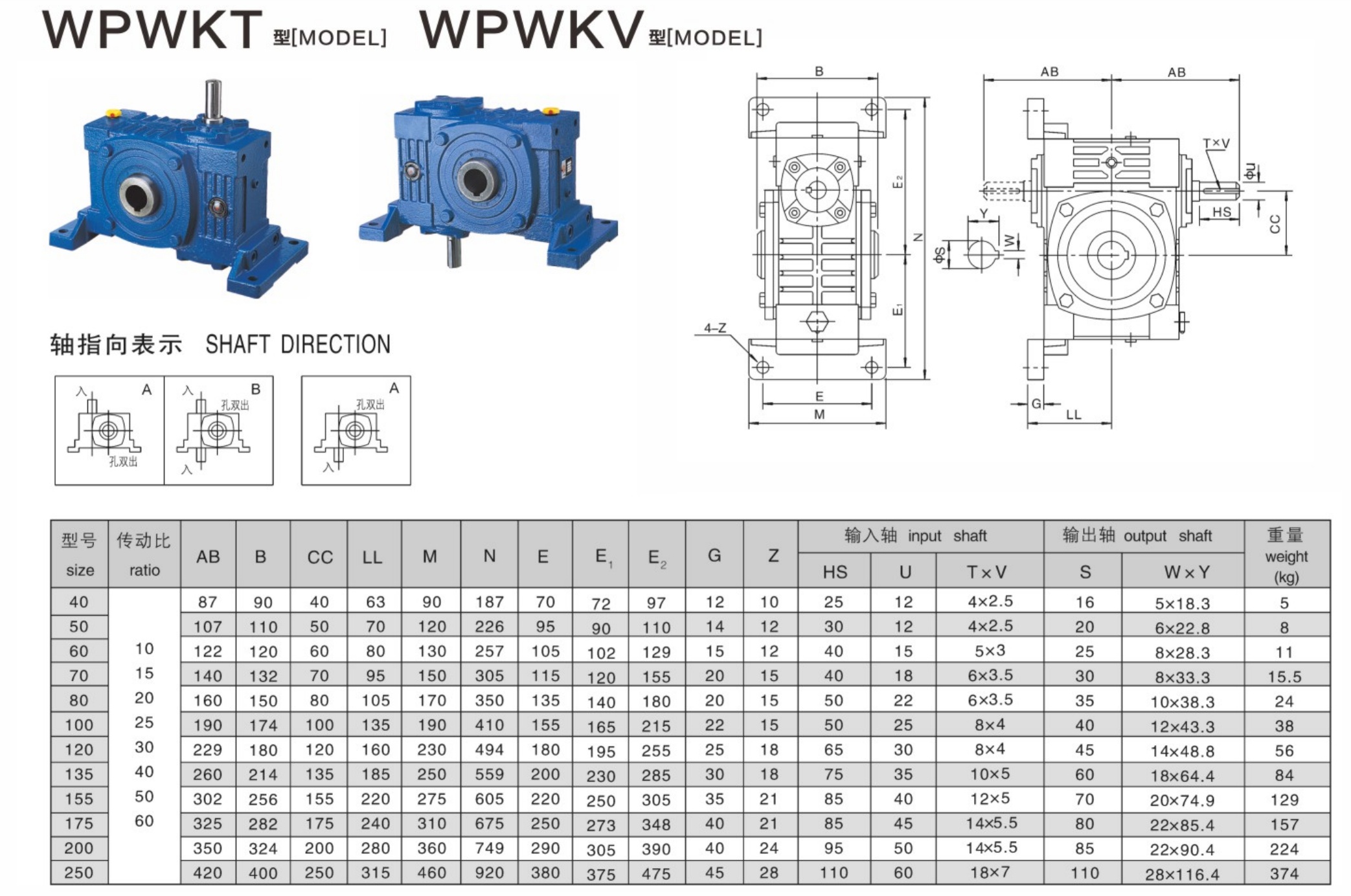

Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
