Speed Reducer Stable Base For Vibration WP Foot Mounted WPWDK Small Durable Reducer
Product Introduction
The reducer has a compact structure, smooth transmission, low operating noise, and a wide range of single-stage reduction ratios (10 to 60). The output torque ranges from 6 to 6050 N · m, with a wide power range, and is widely used in industries such as plastic machinery, metallurgy, mining, lifting and transportation, and food packaging. WPWDK can operate efficiently in ambient temperatures ranging from -40 ° C to+40 ° C and allows for bidirectional rotation of the input shaft.
The main difference between WPWDK and WPWK series lies in their structural design and configuration. WPWDK is a specific model series in the WP series, while WPWK is usually classified as a universal reducer. Universal reducers typically offer more flexible installation options, with fixed holes on multiple sides of the housing, while WPWDK may use a more standardized base plate installation system. However, both have the core advantages of worm gear technology, including high reduction ratio and compactness. Jiahuang's WPWDK embodies the reliability of a wide range of mechanical transmission needs.
|
Product Name: |
WPWDK Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details

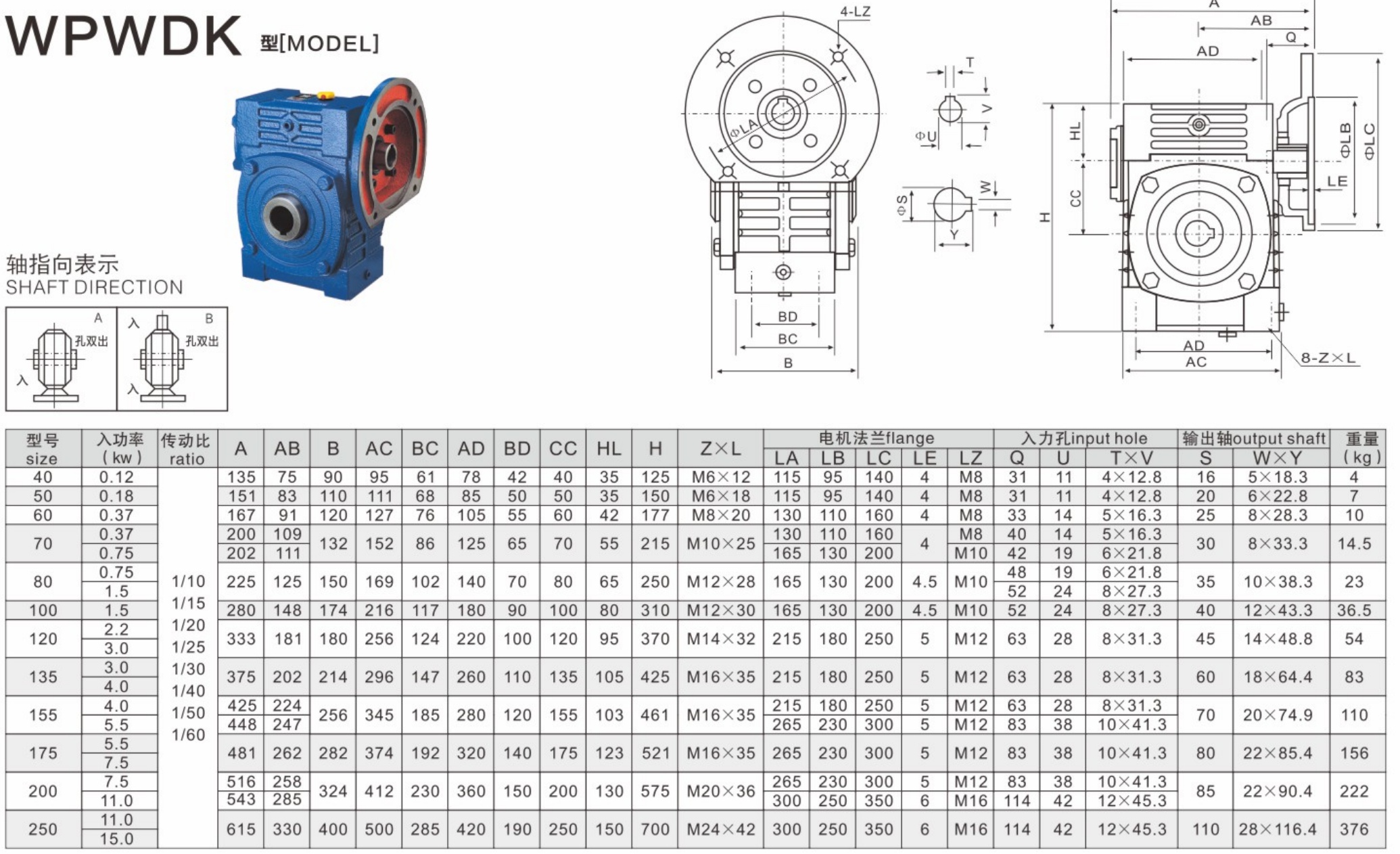

Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
