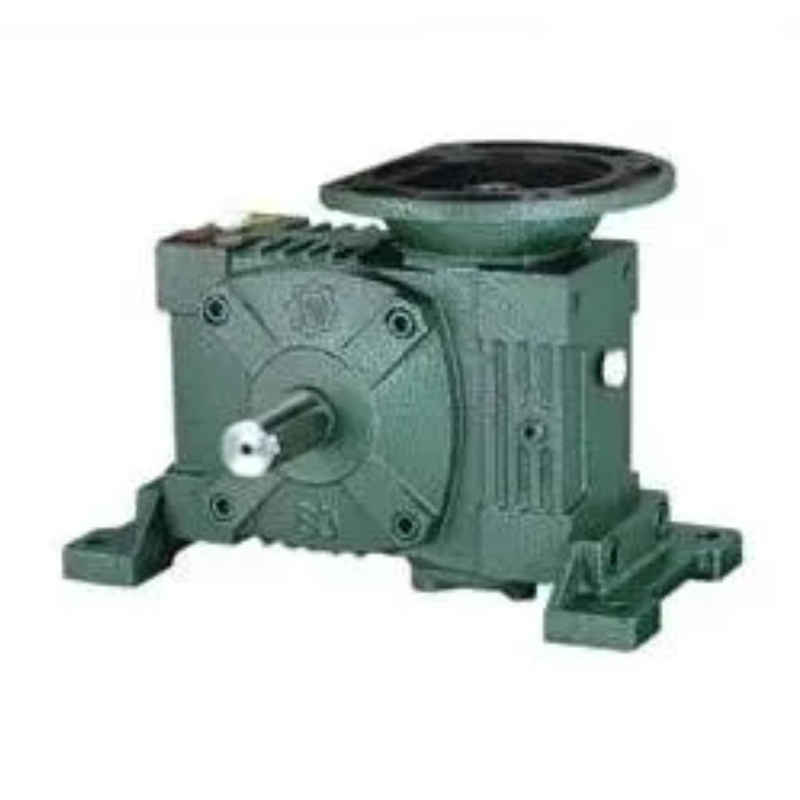

Worm Drive Gearbox WPWDT WP High Efficiency Reducer Energy Saving Operation
Product Introduction
Its main features include a large single-stage reduction ratio (usually between 10:1 and 60:1), smooth operation with low noise and vibration, and frequent self-locking function, making it very suitable for lifting and conveying equipment. "W" represents a universal housing, "D" represents a motor flange connection for direct installation of the motor, and "T" represents the input axis, providing flexible installation methods.
The main difference between WPWDT and WPWT models lies in their housing design and input configuration. Jiahuang WPWDT adopts a universal square shell ("W"), which allows for multiple installation positions and has stronger adaptability in narrow spaces. In contrast, WPWTs typically adopt more traditional non universal shell designs, typically basic or foot mounted. In addition, the WPWDT model is specifically designed with a standard motor flange ("D") that allows for direct coupling with a rigid motor, while the WPWT typically uses a basic input shaft configuration that requires a separate coupling to connect to the motor, making WPWDT installation simpler and more compact.
|
Product Name: |
WPWDT Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details

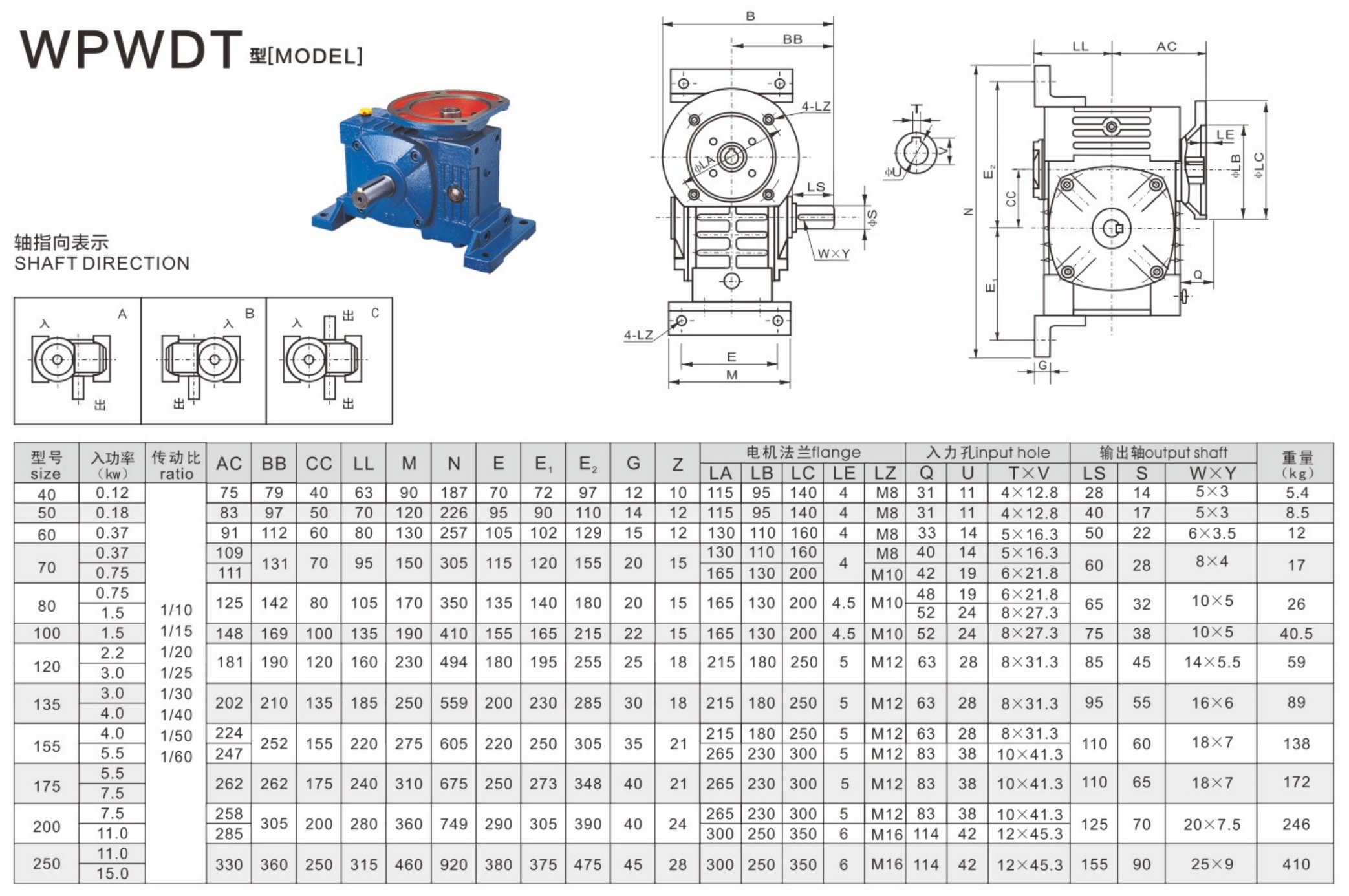

Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
