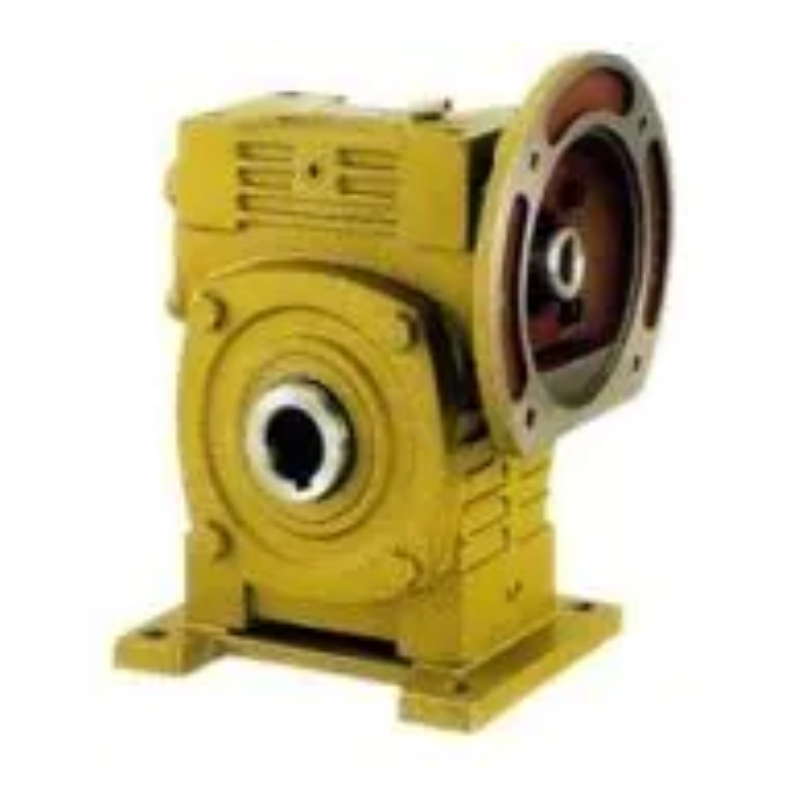

Transmission Type Gearbox WPWDKS WP Quiet Operation Gearbox Noise Reduction Design
Product Introduction
This reducer is suitable for various industrial applications, including conveying systems, packaging machinery, and material handling equipment, providing a wide range of single-stage reduction ratios from 10 to 60. Its compact design, high torque output, and ability to operate in harsh environments make it a versatile choice for many mechanical systems.
The main difference between the Jiahuang WPWDKS and WPWKS models lies in their structural design and output configuration. The WPWDKS series typically uses hollow output shafts and is typically designed for foot mounting, providing flexibility for connecting drive components. In contrast, WPWKS models typically refer to versions that use solid output shafts, and specific installation options or housing details may vary. Both series use the same core worm gear technology, but meet different mechanical layout requirements and installation preferences.
|
Product Name: |
WPWDKS Gearbox |
Ratio: |
10,15,20,25,30,40,50,60 |
|
Model No. |
40,50,60,70,80,100,120,135,155,175,200,250 |
Color: |
Customized |
|
In Power: |
0.06kw-15kw |
Output Torque: |
<1050nm |
|
Shell Material: |
Die-Cast Cast Iron |
Worm Wheel: |
9-4 |
|
Bearing: |
WWI, C&U |
Oil Seal: |
KSK |
|
Shaft: |
Carbon Steel 45# |
Packing: |
Carton and Wooden Case |
|
Warranty: |
1 Year |
Origin: |
Hangzhou Zhejiang |
Product Details

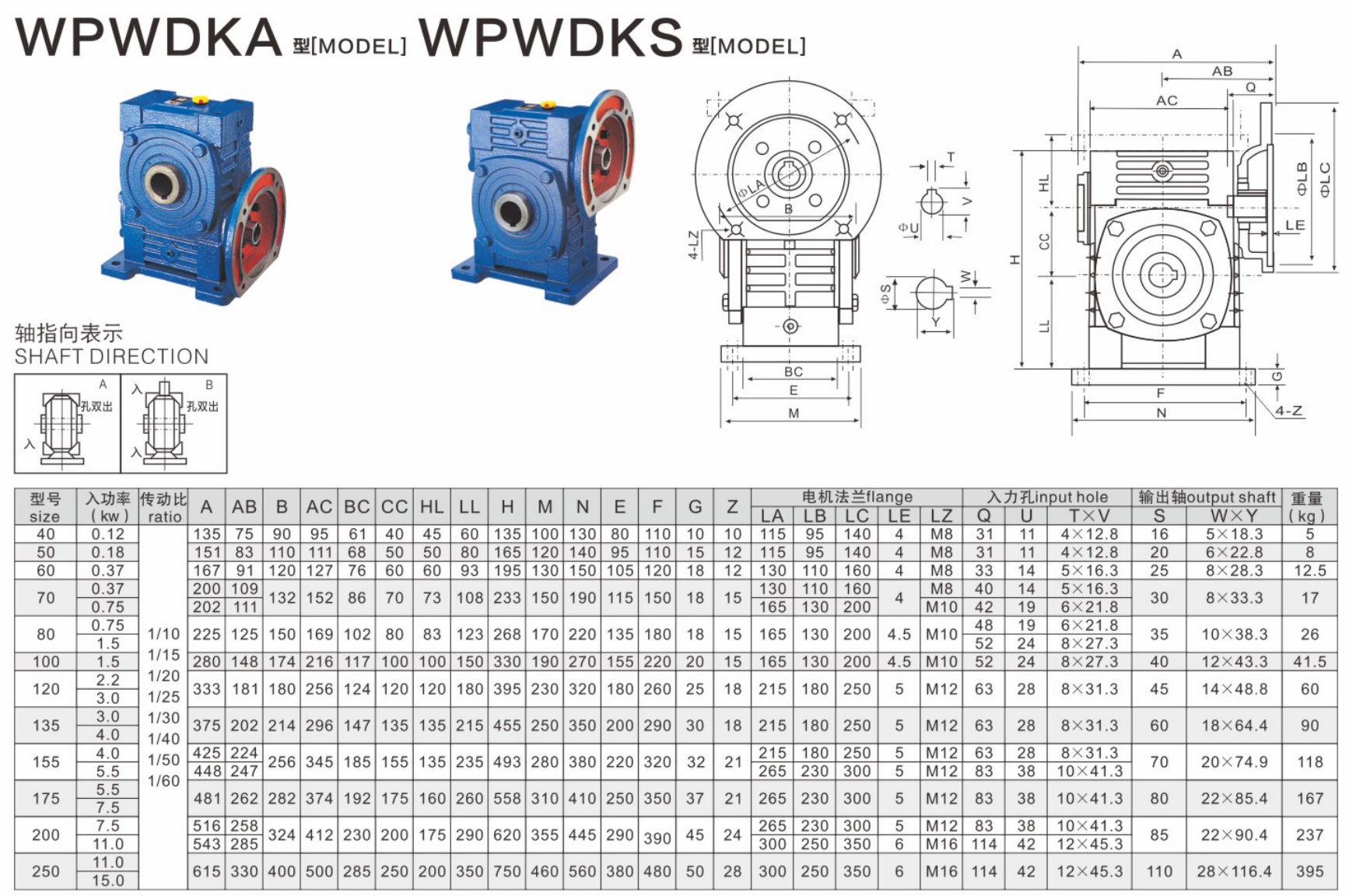

Dynamical capacity table
Application
 |
 |
 |
| Industrial conveying field | Mining machinery field | Construction machinery field |
 |
 |
 |
| Food processing field | Logistics and warehousing field | New energy sector |
 |
 |
 |
| Metallurgical field |
Chemical engineering field |
Agricultural machinery field |
